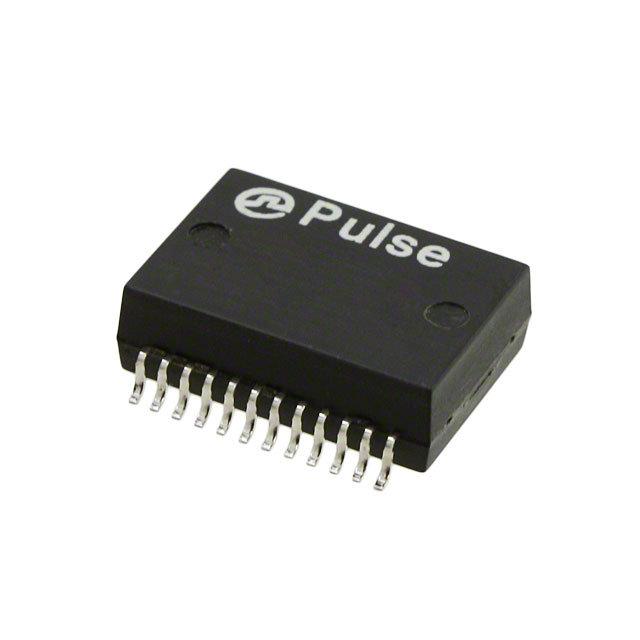

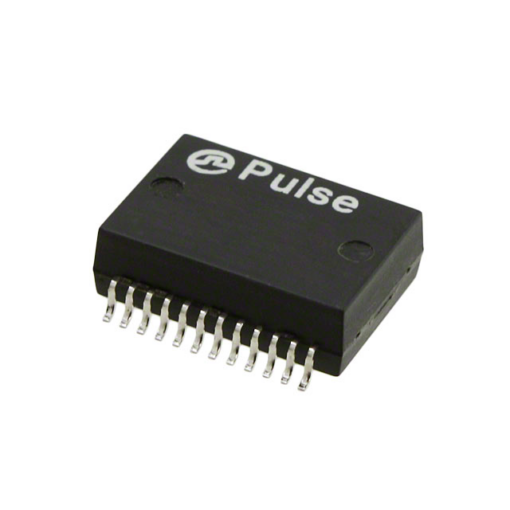

H5007T SMD Pulse Transformer – High-Speed Ethernet Signal Isolation
Features:
- Supports 10/100/1000 Base-T Ethernet applications
- 1:1 turns ratio for both transmitter and receiver
- Surface-mount design with gull-wing terminals
- Operating temperature range: 0°C to 70°C
- Dimensions: 17.53mm (L) x 12.20mm (W) x 5.51mm (H)
Specifications:
| Specification | Details |
|---|---|
| Transformer Type | Pulse Transformer |
| Turns Ratio | 1:1 (Transmitter), 1:1 (Receiver) |
| Mounting Type | Surface Mount (SMD) |
| Termination Style | Gull-Wing Terminals |
| Operating Temperature | 0°C to 70°C |
| Dimensions (L x W x H) | 17.53mm x 12.20mm x 5.51mm |
| Compliance | RoHS non-compliant |
Applications:
- Ethernet communication systems
- Data transmission equipment requiring signal isolation
- Networking hardware such as switches and routers
