HB9500SS Barrier Terminal Block with Cover 300V/30A 3 Pin 9.5mm Pitch
The HB9500SS Barrier Terminal Block with Cover 300V/30A 3 Pin 9.5mm Pitch is ideal for a variety of electrical and industrial applications. It’s commonly used in control panels, automation systems, and power distribution units to provide secure and organized wire connections. The covered design enhances safety, making it suitable for use in HVAC systems, machinery, lighting setups, and renewable energy installations. Its robust construction ensures reliable performance in both commercial and industrial environments.
Features:
- Protective Cover where Equipped with a flap cover lid to safeguard connections and enhance safety.
- Durable Housing where Constructed from PA66 material, rated UL94V-0 for flame retardancy.
- Reliable Pin Header where Made of brass with tin plating to ensure optimal electrical conductivity and resistance to corrosion.
Specifications
| Attribute | Value |
| Current Rating (Max) | 30A |
| Operating Temperature Range | -40℃~+105℃ |
| Voltage Rating (Max) | 300V |
| Color | Black |
| Pin Location | Corner pin |
| Barrier Type | Barrier Block |
| Wire Gauge – AWG | 10~18 |
| Mounting Style | Straight pin |
| Number of PINs Per Row | 3 |
| Number of Rows | 1 |
| Pitch | 9.5mm |

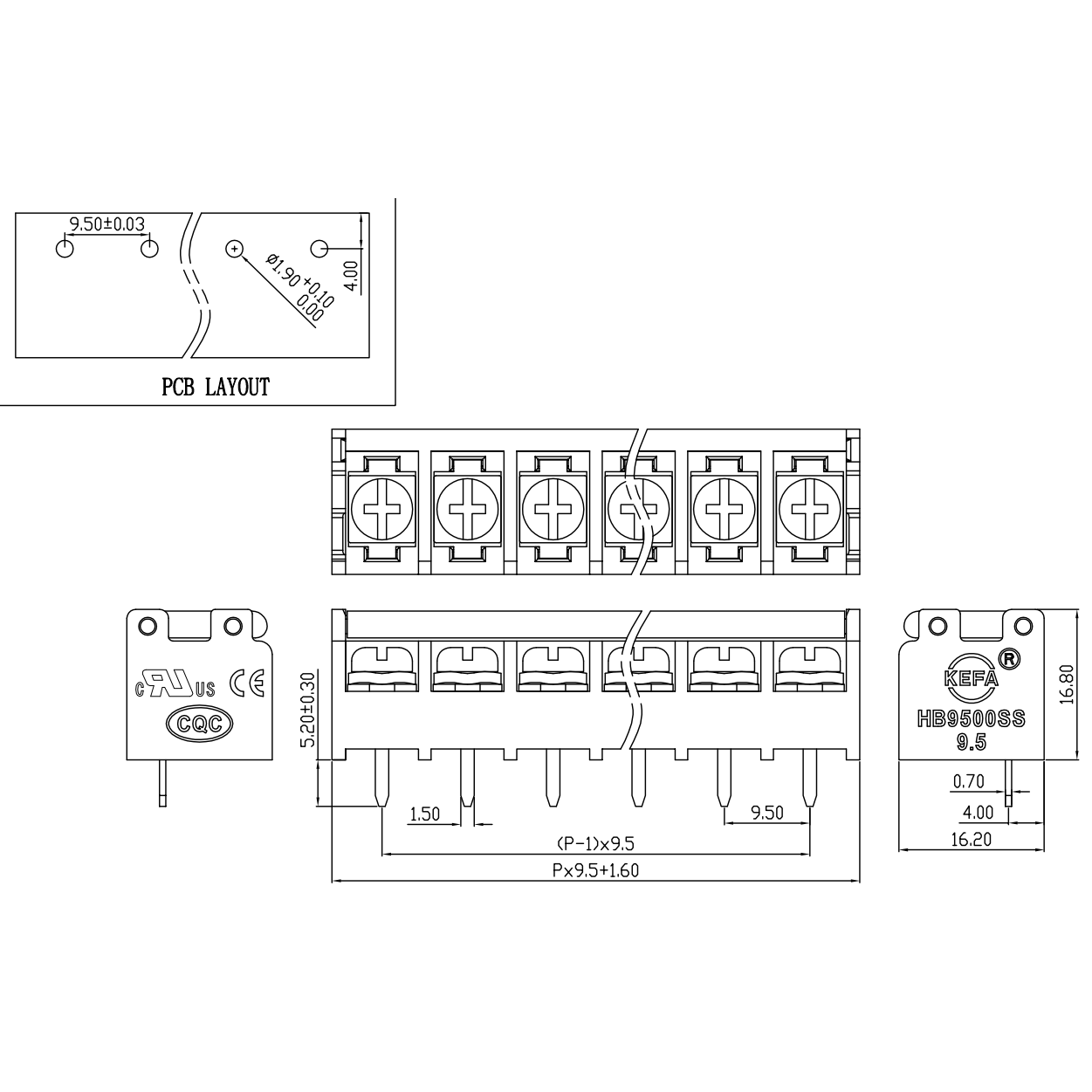

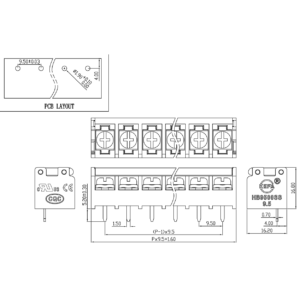

Drawing:
Applications:
- Industrial Control Panels.
- Power Distribution Units.
- Household and Commercial Appliances.
- Lighting Systems.
- HVAC Equipment.
- Machinery and Equipment.
- Renewable Energy Systems.
Package Contents:
1 X HB9500SS Barrier Terminal Block with Cover 300V/30A 3 Pin 9.5mm Pitch
