HB9500SS Barrier Terminal Block with Cover 300V/30A 2 Pin 9.5mm Pitch
The HB9500SS Barrier Terminal Block with Cover 300V/30A 2 Pin 9.5mm Pitch is ideal for a variety of electrical and industrial applications. It’s commonly used in control panels, automation systems, and power distribution units to provide secure and organized wire connections. The covered design enhances safety, making it suitable for use in HVAC systems, machinery, lighting setups, and renewable energy installations. Its robust construction ensures reliable performance in both commercial and industrial environments.
Features
- High Voltage and Current Rating: Rated for 300V and 30A, perfect for high-power industrial and commercial applications.
- Secure Cover: Includes a cover to prevent accidental contact with terminals, ensuring safety in electrical installations.
- 2-Pin Configuration: Ideal for simple connections between two components, ensuring efficient and stable power transmission.
- 9.5mm Pitch: Standard 9.5mm pitch for compatibility with most wiring and industrial applications.
- Durable Build: Constructed with high-quality materials for long-lasting durability and performance under demanding conditions.
- Easy Mounting: Designed for panel or chassis mounting with easy-to-use screw terminals for secure wire connections.
Specifications
| Attribute | Value |
| Current Rating (Max) | 30A |
| Operating Temperature Range | -40℃~+105℃ |
| Voltage Rating (Max) | 300V |
| Color | Black |
| Pin Location | Corner pin |
| Barrier Type | Barrier Block |
| Wire Gauge – AWG | 10~18 |
| Mounting Style | Straight pin |
| Number of PINs Per Row | 2 |
| Number of Rows | 1 |
| Pitch | 9.5mm |

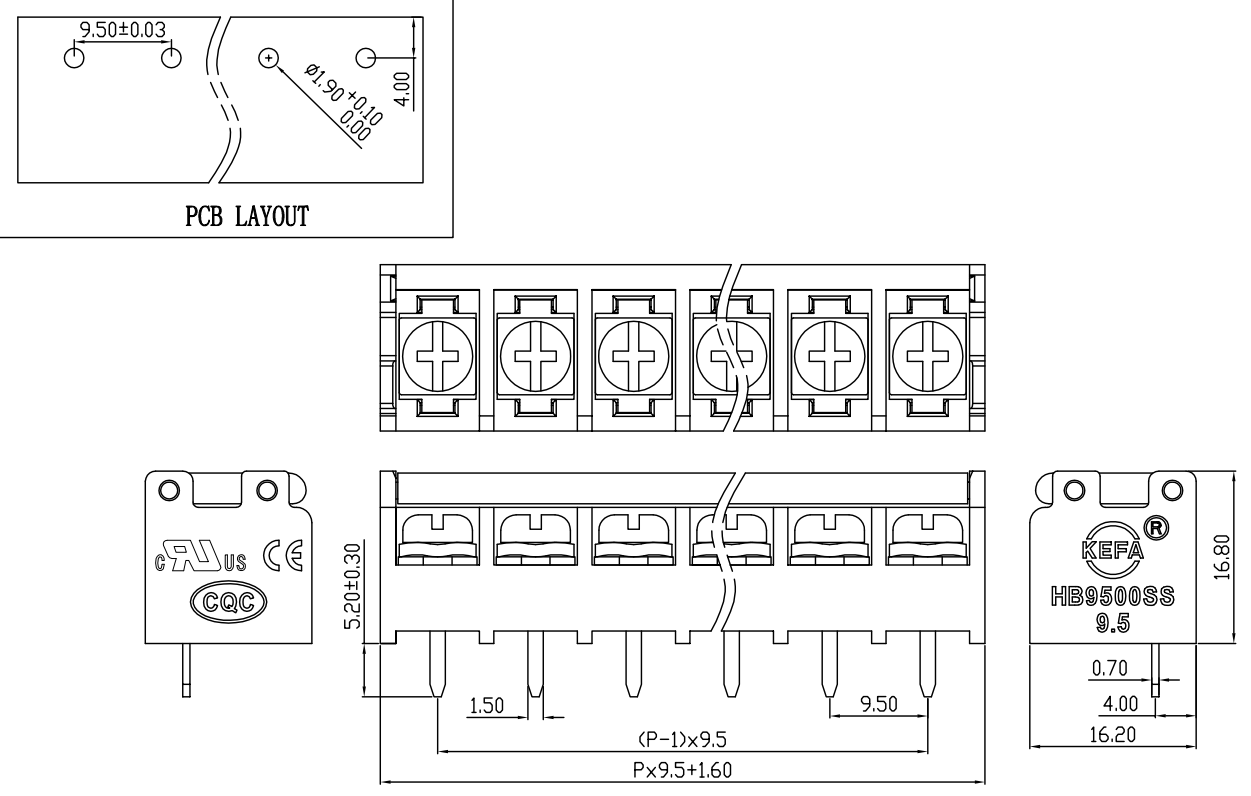

Drawing
Applications
- Power Distribution Systems: Ideal for wiring connections in power distribution boards or electrical panels.
- Industrial Control Systems: Used to connect components like relays, motors, and other control devices in machinery.
- HVAC Systems: Suitable for wiring connections in heating, ventilation, and air conditioning equipment.
- Automotive and Machinery: Commonly used in automotive electrical systems and heavy machinery.
- Lighting Systems: Often used in commercial and industrial lighting systems for secure electrical connections.
Package Contents
- 1x HB9500SS Barrier Terminal Block with Cover 300V/30A 2 Pin 9.5mm Pitch.
