HC DT-9205A+ Digital Multimeter

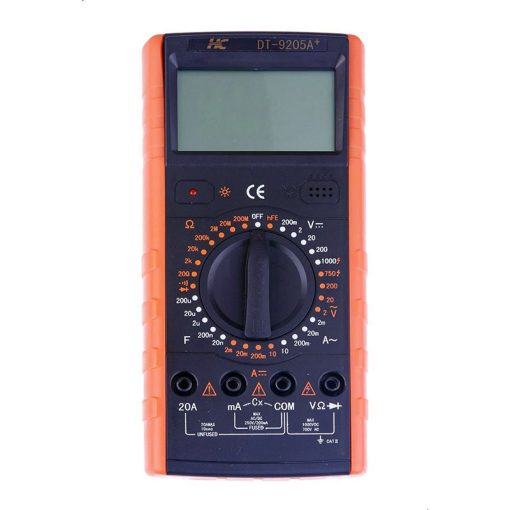

The HC DT-9205A+ presents a utilitarian yet approachable form: a handheld instrument clad in a sturdy plastic and rubberized case, with a large digital display dominating its face. The dial and buttons are laid out clearly, offering a tactile, mechanical reassurance as you rotate or press them. The outer casing is slightly contoured, with reinforcements around corners and edges to absorb shocks or accidental knocks. Its design is unpretentious, prioritizing clarity and usability over aesthetic flourish.
When powered up, the LCD digits appear crisp and stable, the backlight (in some versions) enhancing readability in dim environments. The dial selector clicks firmly into place, and the input jacks accept test leads with a solid feel. The display and symbols respond to inputs without flicker. While in use, the meter gives off a faint hum of circuitry, accompanied by the occasional beep during continuity or test modes. The feel of holding it is balanced: not overly heavy, yet reassuringly solid in hand. The probes extend with flexibility, letting you position the meter comfortably in front of circuits without strain.
Over extended use, the DT-9205A+ reveals itself as a steadfast companion. It doesn’t demand your attention, but reliably displays readings, even under changing light, temperature, or slight jostling. The tactile feedback of the controls and the consistency of display updates give the impression of a mature, well-engineered tool. In a toolkit, it blends into the background appreciated for what it does, rather than how it looks.
Features:
- Auto power-off to conserve battery.
- Overload protection on all measurement ranges.
- Manual ranging modes
- LCD display
- Audible continuity buzzer.
- Diode / transistor (hFE) test capability.
Specifications:
| Parameter / Function | Value / Range / Description |
|---|---|
| Display | 3½-digit LCD, max reading “1999” |
| DC Voltage | 200 mV, 2 V, 20 V, 200 V, 1000 V |
| AC Voltage | 2 V, 20 V, 200 V, 750 V (typical) |
| DC Current | Up to 20 A (various ranges) |
| AC Current | Up to 20 A (various ranges) |
| Resistance | 200 Ω up to 200 MΩ ranges |
| Capacitance | 20 nF up to 200 µF (typical) |
| Diode / Continuity Test | Yes (with audible buzzer) |
| Transistor hFE Test | Yes (E/B/C socket) |
| Overload protection | Present on all ranges |
| Auto negative polarity | Yes |
| Auto power-off | ~15 minutes of inactivity |
| Input impedance (voltage ranges) | ~10 MΩ |
| Operating temperature / humidity | 0 °C ~ 40 °C, RH ≤ 75% |
| Storage temperature / humidity | –10 °C ~ 50 °C, RH ≤ 75% |
| Power supply | 9V battery (e.g. 6F22) |
| Dimensions | 180 mm × 89 mm × 35 mm (model DT9205A) |
| Weight | ≈ 310 g (including battery) |
Applications:
- Electrical repair & maintenance.
- Electronics prototyping & testing.
- Home / hobbyist circuit diagnostics.
- Automotive electrical diagnostics.
- Industrial instrumentation & monitoring.
- Educational / lab measurement use.

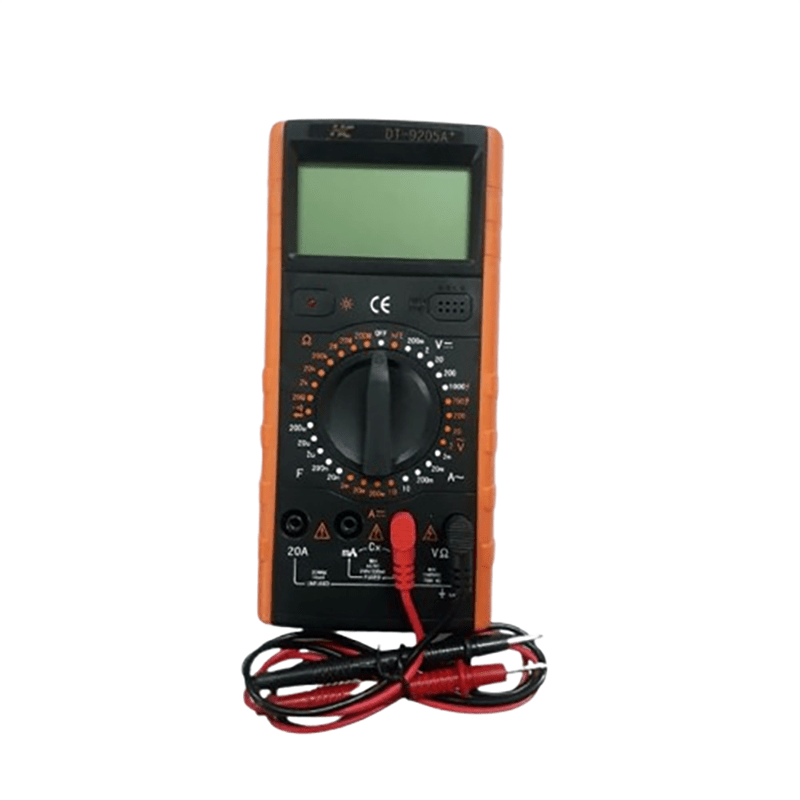

Package Contents:
- 1x HC DT-9205A+ digital multimeter
- 1x Set Test leads / probes (red and black) (2 leads)
- 1x User manual / instruction pamphlet
