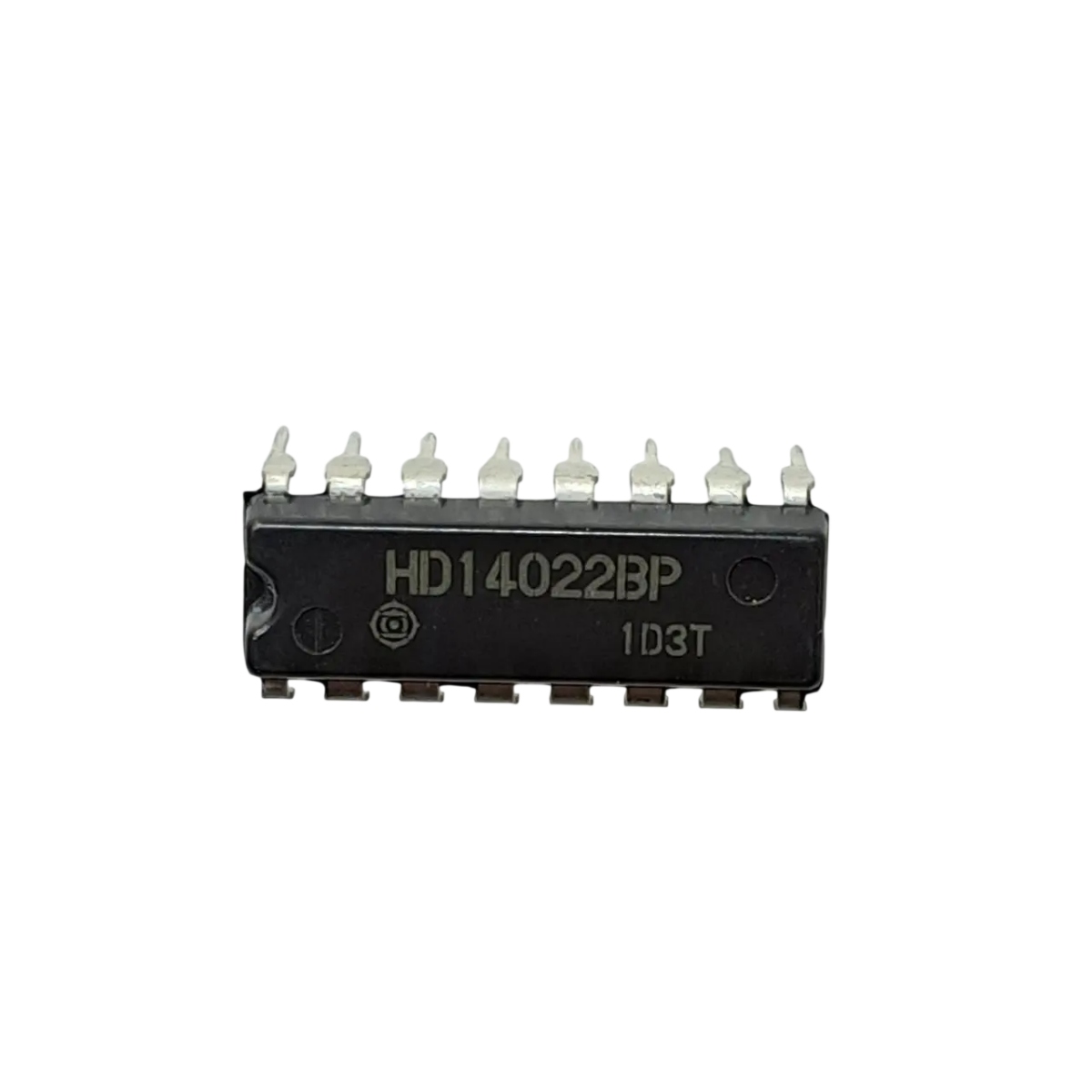

HD14022BP 4-stage Counter 15V 0.85µA IC 16-PDIP

HD14022BP 4-stage Counter 15V 0.85µA IC 16-PDIP

The HD14022BP is a CMOS 4-stage Johnson counter integrated circuit designed for reliable counting, timing, and sequence generation in digital systems. Operating with low power consumption and high noise immunity, this IC is ideal for applications that require stable frequency division or controlled output sequencing. The internal logic converts clock input signals into multiple decoded outputs, making it useful for timing circuits and digital control systems.

Housed in a 16-pin PDIP package, the HD14022BP is suitable for through-hole mounting on PCBs and prototyping boards. Its wide operating voltage range and CMOS technology allow it to be used in battery-powered devices, industrial electronics, and embedded control circuits where efficiency and reliability are essential.

Features:

• CMOS low-power operation.
• High noise immunity and stable performance.
• 4-stage Johnson counter architecture.
• Built-in decoded outputs.
• Suitable for frequency division and sequence generation.
• Compatible with a wide range of digital logic systems.
• Reset function for controlled operation.
• Through-hole PDIP package for easy prototyping.

Specifications:

Pinout:

Applications:

• Frequency divider circuits.
• LED chaser and sequence controllers.
• Digital clocks and timers.
• Event counting systems.
• Industrial control logic.
• Signal timing and pulse generation.
• Embedded and automation systems.

Packages:

• 1x HD14022BP 4-stage Counter 15V 0.85µA IC 16-PDIP.

Documents:

• HD14022BP Datasheet.
