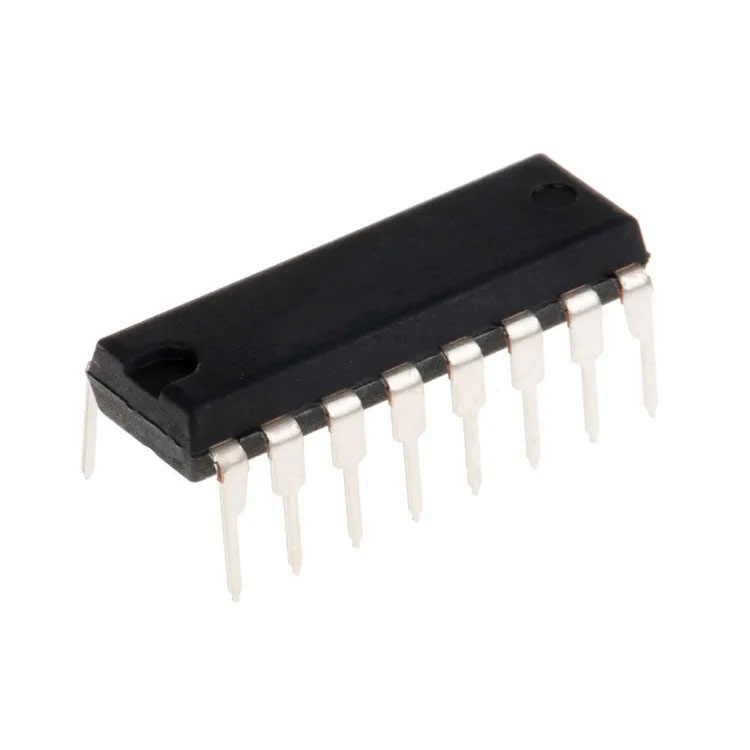

HD14530BP CMOS Integrated Circuit IC DIP-16

The HD14530BP is a CMOS-family integrated circuit in a 16-pin DIP package used in digital electronics.

12.00 EGP

Buy Now
Availability: In Stock
SKU:3496300095773
HD14530BP CMOS Integrated Circuit IC DIP-16

The HD14530BP is a dual five-input majority logic gate implemented in CMOS. Each gate evaluates five logic inputs (A–E) plus a control/test input W; the output Z is driven high when three or more inputs are logical “1.” The device’s monolithic CMOS structure uses P- and N-channel enhancement transistors and includes diode protection on every input. It accepts a wide supply range and can directly drive standard TTL loads.

Functionally the HD14530BP simplifies many combinational and sequential circuits by providing majority-logic primitives (5-input and 3-input majority behavior) that can be reconfigured by tying inputs or using W as a control to realize OR, AND, NAND, NOR, XNOR and related functions with fewer external parts. The device incorporates static-protection circuitry to reduce ESD risk; the datasheet notes unused inputs must be tied to VSS or VDD.

The datasheet covers plastic DIP-16, ceramic DIP and SOIC packages with full pin assignments (VDD = pin 16, VSS = pin 8) and outline drawings. Electrical data include input thresholds, VOH/VOL, drive currents, quiescent and dynamic supply currents, input capacitance, and timing (propagation delays and rise/fall times) at VDD = 5, 10 and 15 V. Example circuits shown include flip-flops and astable multivibrators.

Features:
  • Diode protection on all inputs.
  • Wide operating supply range: 3.0 V to 18 V.
  • Dual five-input majority logic gates (A–E inputs plus W control).
  • Capable of driving two low-power TTL loads or one low-power Schottky-TTL load.
  • Built-in static-protection circuitry (ESD protection).
  • Unused inputs must be tied to a defined logic level (VSS or VDD).
Specifications:
Parameter Value / Notes (from datasheet)
Recommended operating supply: 3.0 V to 18 V
Maximum DC supply rating (VDD): –0.5 V to +18.0 V (maximum rating)
Input / output voltage range: –0.5 V to VDD + 0.5 V (DC or transient)
Input / output current (per pin): ±10 mA (max)
Power dissipation (per package): 500 mW (max)
Input capacitance (Cin): 5.0 pF, Max 7.5 pF
Quiescent current (IDD, per package): ~0.25 µA (5 V)
increases with VDD (see datasheet table)
Output drive (typical at VDD = 5 V): IOH ≈ –3.0 mA (source)
IOL ≈ 0.64 mA (sink) (see electrical table for other VDD)
Propagation delay (typ, examples at 5 V, CL=50 pF): tPLH ≈ 375 ns
tPHL ≈ 430 ns (see switching table for detailed formulas and VDD = 10/15 V values)
Pinout:

Applications:
  • Sequential Logic Circuit.
  • Majority-Logic Control Module.
  • Custom Flip-Flop Logic.
  • Multivibrator Circuit.
  • Digital Logic Processing Unit.
Package Contents:
  • 1x HD14530BP Integrated Circuit IC DIP-16
