HDMI to USB 2.0 Video Capture Device with Loop Out

Features:

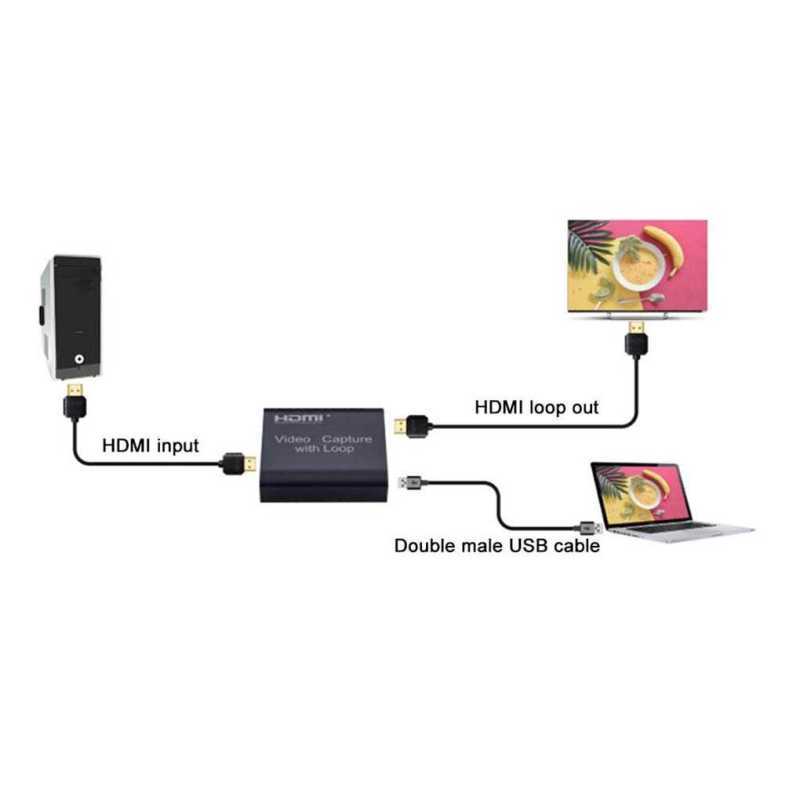

• Support HDMI loop out.
• Supports maximum input resolution up to 4K.
• Support maximum output resolution up to 1080P.
•  When using standard AWG26 cables, the input transmission distance is up to 15 meters (1080P and below resolution).
• Support most acquisition software, such as VLC, OBS, Amcap, etc.
•  Support Windows, Android and MacOS.
• Conform to USB video UVC specification.
• Conform to USB audio UAC specification.
•  Small size and easy to carry.

Specifications:

• HDMI resolution :  Max input can be 4K .
• Support video format:  8/10/12bit Deep color.
• Video output format:   YUV JPEG.
• Video output resolution :  Max output can be 1080P.
• Support audio format :   L-PCM.
• Input cable distance:  ≤15m,AWG26 HDMI standard cable.
• Max working current :  0.7A/5VDC.
• Operating Temperature Range:  (-10 to +55 C).
• Dimension (L x W x H):   59x56x19 (mm).
• Weight:  52g.

Note:

• Computer hardware configuration requirements
• CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
• Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
• Run memory: 4G RAM

Package include:

• Video capture   > 1PCS.
• User manual > 1PCS.
• USB cable male to male  > 1PCS.
• Micro USB cable  > 1PCS.
