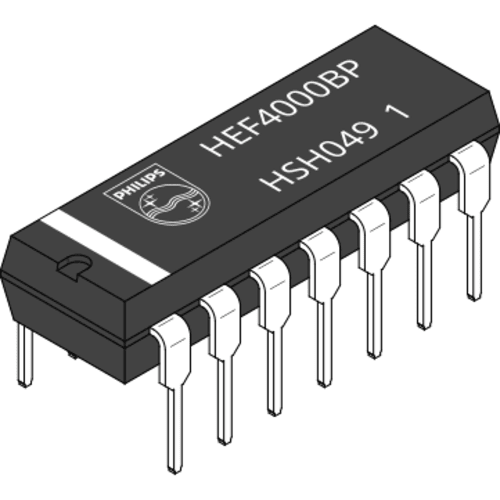

HEF4000BP Dual 3-In NOR Gate Plus Inverter IC PDIP-14
The HEF4000BP Dual 3-In NOR Gate Plus Inverter IC PDIP-14 is a CMOS logic device that integrates two buffered 3-input NOR gates and a single inverter in a PDIP-14 through-hole package, offering low dynamic power dissipation, high input impedance and robust output buffering for use in wide-voltage digital and analogue timing applications.
Features
- Two independent 3-input NOR gates plus one inverter in a single PDIP-14 package for compact logic implementation.
- Fully buffered outputs for high noise immunity and consistent output impedance.
- CMOS inputs with very high input impedance and low quiescent current for battery-friendly designs.
- AC characteristics specified at VDD = 5V, 10V and 15V for flexible supply options.
- Typical propagation-delay expressions provided for load capacitance based timing estimates.
- Suitable for use as logic gates or as an analogue inverter stage in timing/amplifier circuits.
- Available in plastic PDIP (HEF4000BP) for easy prototyping.
PINOUT
| Pins | Labels | Function |
|---|---|---|
| 1-2 | NC | No Connection |
| 3…5 | I1…I3 | Inputs for the first NOR gate |
| 6 | O1 | Output of the first NOR gate |
| 7 | VSS | Ground (Negative power supply) |
| 8 | I7 | Input for the inverter |
| 9 | O3 | Output of the inverter |
| 10 | O2 | Output of the second NOR gate |
| 11…13 | I4…I6 | Inputs for the second NOR gate |
| 14 | VDD | Positive power supply |
Specifications
ABSOLUTE MAXIMUM RATINGS
| Parameter | Value | Unit / Notes |
|---|---|---|
| Supply voltage range (VDD) | -0.5 to +18 | V |
| Voltage on any input (VI) | -0.5 to (VDD + 0.5) | V |
| DC current into any input or output (I) | ±10 | mA |
| Power dissipation (Ptot) | 500 @ Tamb= -40 to +70
derate linearly by 8 mW/°K @ Tamb= +70 to +85 |
mW |
| Power dissipation per output (P) | 100 | mW (per output) |
| Storage temperature range (Tstg) | -65 to +150 | °C |
| Operating ambient temperature range (Tamb) | -40 to +85 | °C |
Note 1: for AC characteristics, curves, or testing circuits, please read datasheet 1.
Note 2: for full electrical specifications, please read datasheet 2.
Applications
- Low-power digital logic, glue logic and multi-input gating in battery and mains powered systems.
- Address decoding, alarm and control circuits requiring multi-input NOR logic.
- Television horizontal/analogue timing and inverter-stage signal conditioning.
- Prototyping and educational circuits using standard PDIP through-hole format.
- Signal buffering and low-frequency analogue amplifier stage using the unbuffered inverter output.
Package Contents
- 1x HEF4000BP Dual 3-In NOR Gate Plus Inverter IC PDIP-14.
Documents
| Datasheet 1 | HEF4000BP |
| Datasheet 2 | HE4000B Family Specifications |
| CAD Files | Download |
