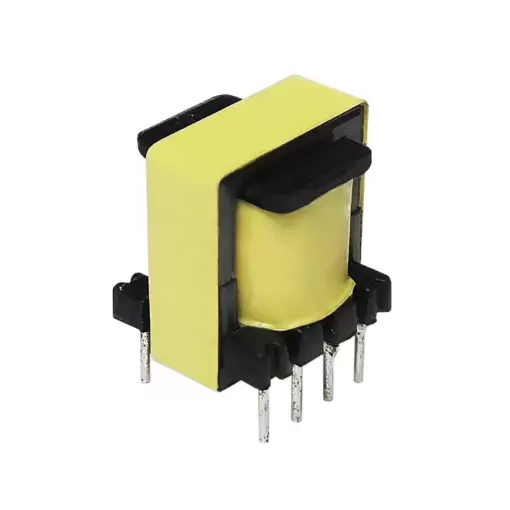

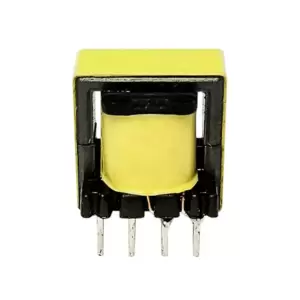

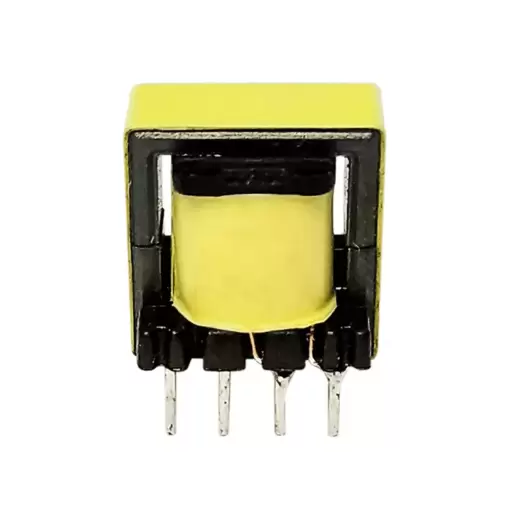

High Frequency SMPS Transformer EE10-A1 3.5W 6 Pin 5V PCB Mounted

9.00 EGP

Buy Now
Availability: In Stock
SKU:8825454854526
EE10-A1 is a 100K-200KHz low-power high-frequency transformer of 5V with maximum of 3.5W output and can be used as long-term stable supply. It is suitable for use with switching power management ICs such as the LNK364PN  and it is easy to design a 5V maximum output 3.5W switching power supply.
Note: It is a switching power supply power transformer and can not be used directly with 220V 50Hz. Direct connection with 50Hz AC will burn the transformer.

Dimenisons (Unit mm):

Electrical Schematic Diagram:

Winding Structure Diagram:

Winding process:

NO start→End Enameled Wire Number of Turns Mylar Tape Winding Process
N1 3-4 2UBY∅0.15mm 160 TS 7mm2 tightly wound
N2 5-8 2UBY∅0.35mm 11 TS 7mm2 tightly wound
N3 1-2 2UBY∅0.15mm 14 TS 7mm2 evenly wound

Electrical Parameters:

Inductance P1 P2 2.3mH± 10% @10KHZ 0.25V
withstand voltage PRI – SEC 1500Vac 5mA 60sec
PRI , SEC – CORE FWM
Phase ratio According to the schematic diagram 20KHZ/1V
