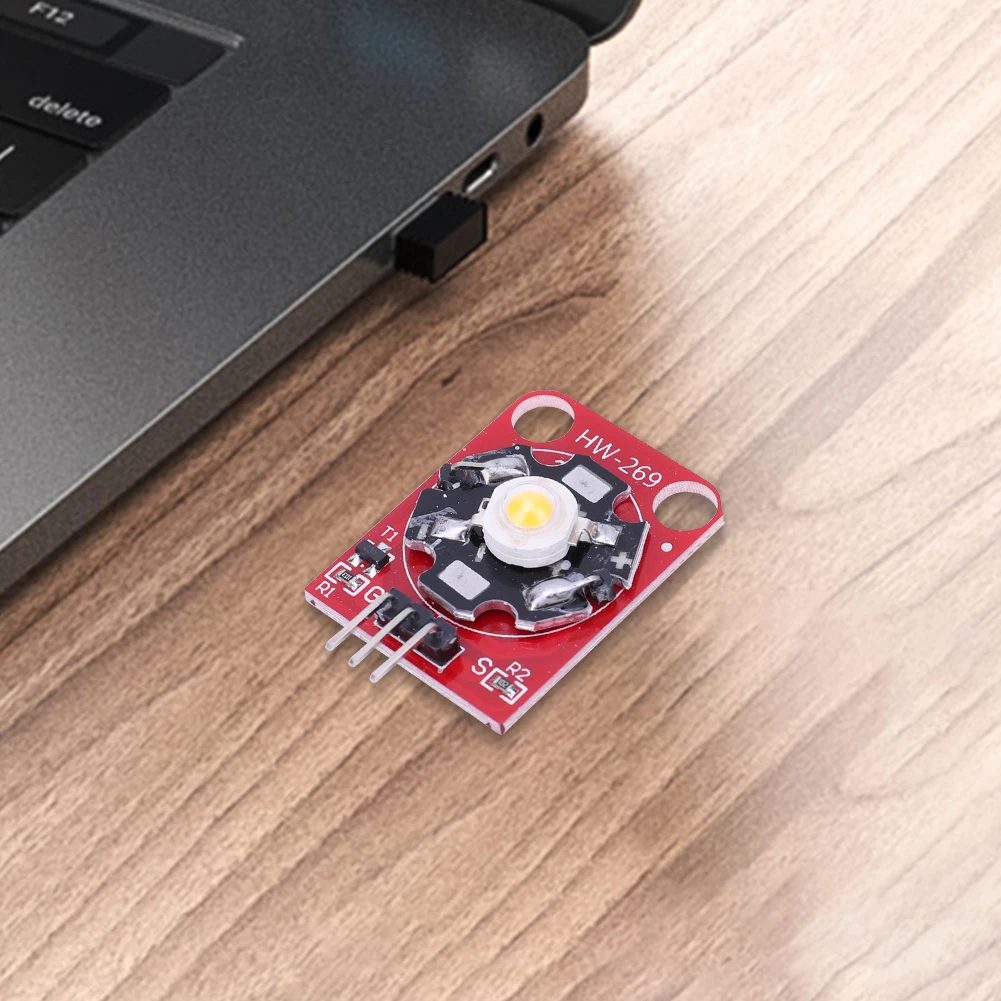

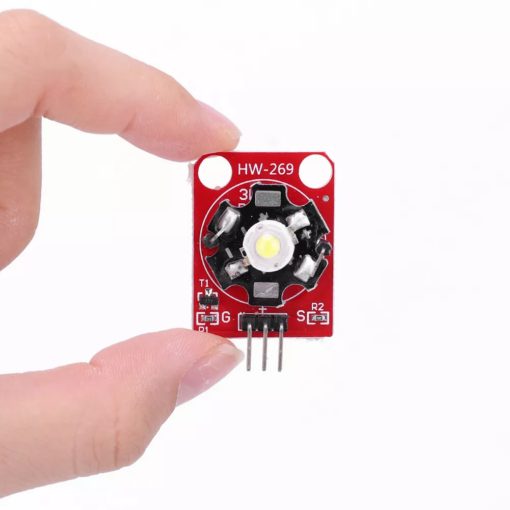

Product description: Module with power diode LED 3 W – white
Module with a white power LED diode 3W. Temperature of white color ranges from 6000 to 6500 K. It shines at an angle of 180°. Voltage supply 5 V.
Connect the module with the LED diode power
The module has 3 pins. It has a digital output signal, communicates with any device equipped with a microcontroller, e.g.an Arduino.
| PIN | DESCRIPTION |
|---|---|
| S | The digital output signal. |
| +(middle pin) | The supply voltage of 5 V. |
| GND | The ground of the system. |
Module specification with diode
- Supply voltage: 5 V
- Power: 3 W
- Current consumption: 0,7 mA
- Color: white 6,000 K to 6,500 K
- From 180 to 200 LM
- Angle: 180°
- Operating temperature: -20°C to 60°C
- Storage temperature: from 20°C to 60°C
- Lifespan: 50,000 hours
- Dimensions (L x W (PCB)): 30 x 23mm
