HLK-10M05 AC/DC Power Module 5V 2A 10W

HI-LINK  AC/DC  HLK-20M05 Power Module 5V 4A  20W

Is a high-performance power module designed to convert 100V to 240V AC into a stable 5V DC output with a maximum current capacity of 2A, delivering 10W of power. This compact, PCB-mountable power supply is an ideal alternative to bulky transformer-based power supplies, offering a lightweight, highly efficient, and space-saving solution for various electronic applications. It is built with high-quality components that ensure low ripple, low noise, and high stability, making it suitable for sensitive embedded systems, industrial automation, and IoT devices.

Features:

• Compact Design where small size allows integration into space-constrained circuits.
• High Efficiency where greater than 70% conversion efficiency, reducing energy loss.
• Operates from 100V to 240V AC, making it suitable for global applications.
• Delivers a steady 5V DC, ensuring reliable operation.
• Energy-efficient design for low standby power.
• Built-in Protection where features overload, overvoltage, short-circuit, and over-temperature protection.
• No External Heat Sink Required where runs cool under normal operating conditions.
• Complies with CE, FCC, and RoHS standards.
• Provides 3000V AC isolation for safety.

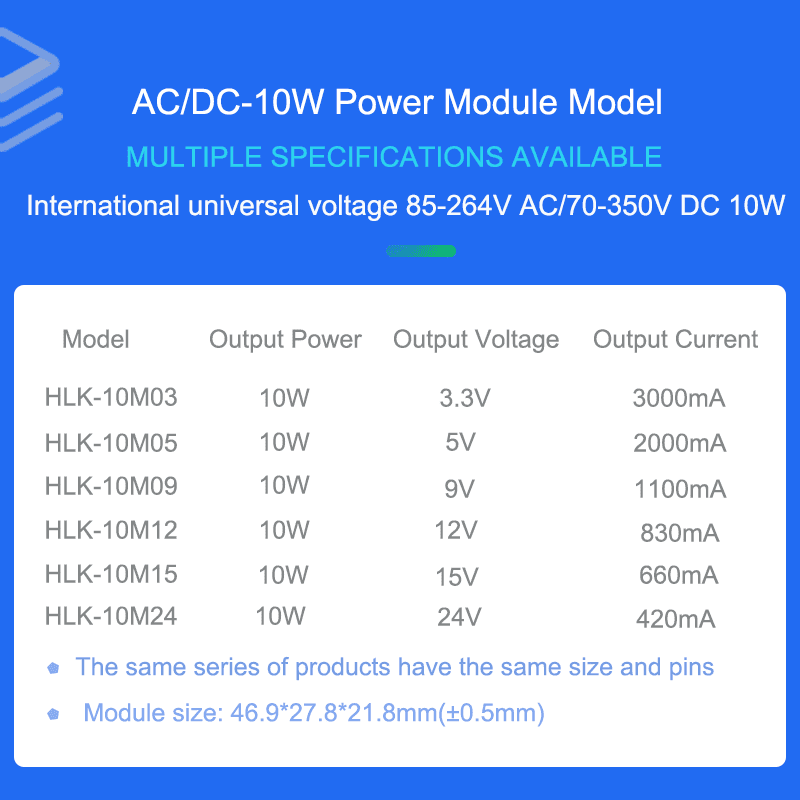

Specifications:

• Brand: HI-LINK
• Model: HLK-10M05
• Category: AC/DC Power Module
• Input Voltage: 100V – 240VAC
• Frequency: 50 / 60 Hz
• Output Voltage: 5 VDC
• Output Current: 2A
• Output Power: 10W
• Efficiency: >70%
• Ripple & Noise: <50mV
• Load Regulation +0.5%
• Line Regulation +0.5%
• Isolation Voltage: 3000V AC
• Operating Temperature: 25°C 10 +85°C
• Storage Temperature: 40°C to +85°C
• Humidity: 5% – 95% RH
• Size: 47mm x 28mm x 22mm
• PCB Mountable: Direct integration into circuit boards

Dimensions:

Input Voltage & Load Characteristics:

Working Environment Temperature & Load Characteristics:

Typical Application Circuit:

Applications:

• IoT Devices.
• Embedded Systems.
• Home Automation.
• Industrial Controls.
• Communication Equipment.
• Medical Devices.
• Consumer Electronics.

Datasheet:

HLK-10M05 Power Module
