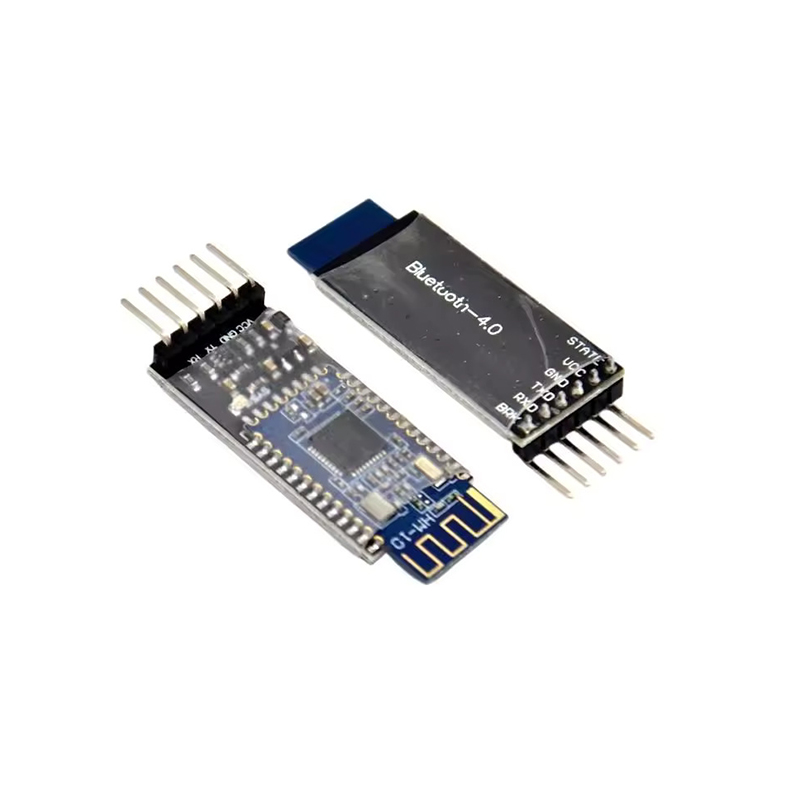

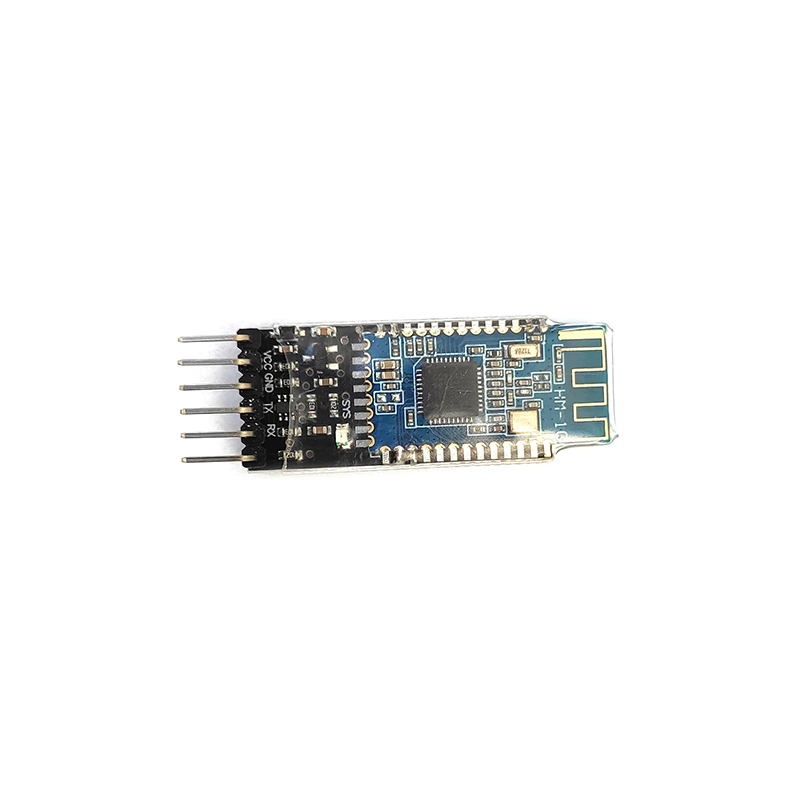

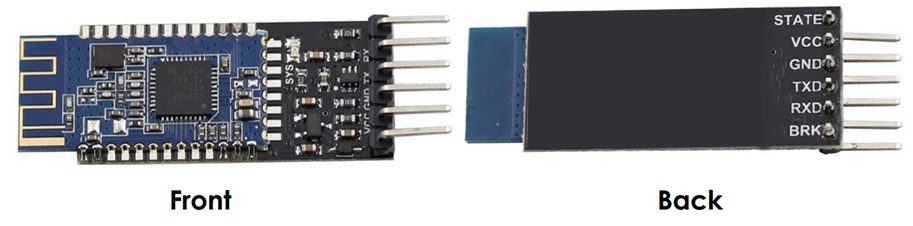

HM-10 V4.0 BLUETOOTH MODULE
The HM-10 is a versatile Bluetooth 4.0 Low Energy (BLE) module designed by JNHuaMao Technology to provide a comprehensive wireless solution. It integrates data transmission, remote control, and PIO state acquisition functionalities into a single, compact unit. Based on the TI CC2540/1 chipset, the module is engineered for flexibility, allowing developers to implement robust Bluetooth connectivity without needing an external microcontroller for basic operations.
A key characteristic of the HM-10 is its ability to operate in both master and slave roles, enabling it to initiate connections to other devices or accept incoming connections. The module’s behavior is highly customizable through an extensive set of simple text-based AT commands, which can be sent via its UART interface to modify parameters like the device name, baud rate, and operating mode. This programmability makes it adaptable to a wide range of project requirements and scenarios.
The module supports three distinct work modes: a transparent transmission mode for bidirectional data exchange, a remote control mode for managing the output states of its I/O pins, and a PIO acquisition mode for monitoring sensor or switch inputs. It also features intelligent power management, including a sleep mode that can be woken via a specific data string or a system key, ensuring efficient operation in battery-powered applications.
Features:
- Master and Slave role in one module.
- Supports AT command configuration for flexible parameter setup.
- Remote control of PIO ports without an external MCU.
- PIO data acquisition capability without an external MCU.
- Integrated support for the iBeacon protocol.
- Programmable RF output power.
- Low power consumption with active and sleep modes.
- UART interface for easy connectivity with host devices.
- Multiple programmable I/O pins (PIOs) for sensor connection and control.
- Built-in system LED and KEY for status and control.
Specifications:
| Specification | Details |
|---|---|
| BT Version: | Bluetooth Specification V4.0 BLE |
| Chip: | TI CC2540/1 |
| Flash Memory: | 256 Kb |
| Operating Voltage: | 2 – 3.7 VDC |
| Operating Current: | 8.5 mA (Active Mode) |
| Sleep Current: | 60 uA ~ 1.5 mA |
| RF Power: | -23, -6, 0, 6 dBm (Software Selectable) |
| Data Speed: | 1 – 6 K Bytes (Asynchronous & Synchronous) |
| Range: | ~100 meters in open space (with iPhone 4s) |
| Frequency: | 2.4 GHz ISM band |
| Modulation: | GFSK (Gaussian Frequency Shift Keying) |
| Interface: | UART (TX, RX, RTS, CTS) & Programmable PIOs |
| Operating Temperature: | -5 ~ +65 °C |
| Size: | 26.9 mm x 13 mm x 2.2 mm |

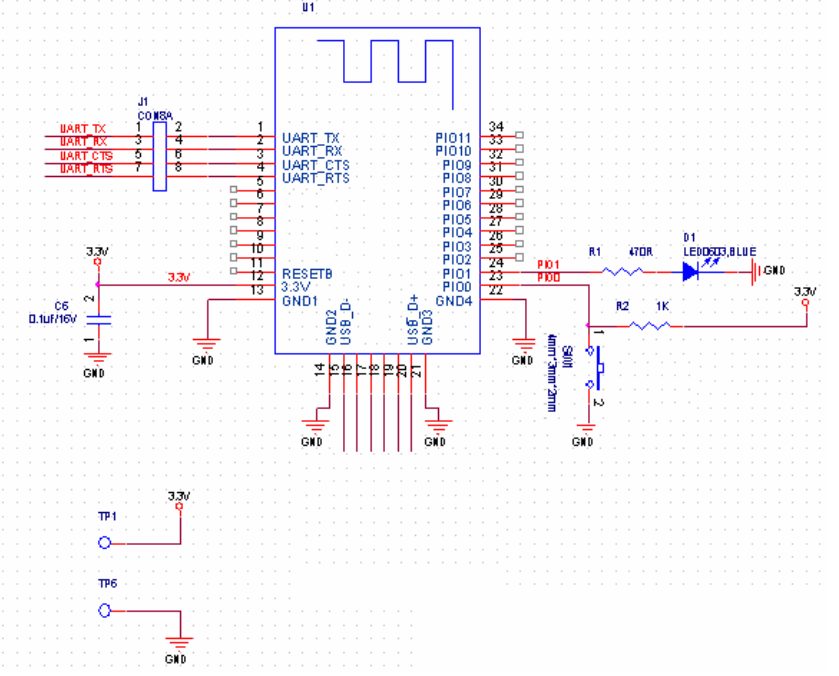

HM-10 Schematic:
Applications:
- Wireless Data Transmission.
- Remote Control Systems.
- PIO State Acquisition and Sensor Monitoring.
- iBeacon and Proximity Solutions.
- Home Automation and Smart Control.
- Health and Fitness Monitors.
- Low-Power Sensor Networks.
Package Contents:
- 1x HM-10 V4.0 BLUETOOTH MODULE
