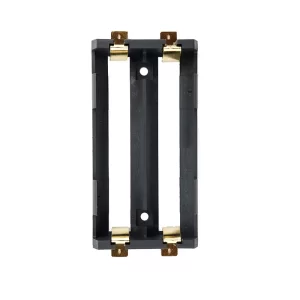

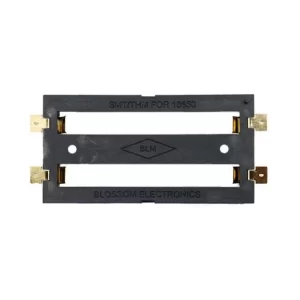

The 18650 Dual SMD/SMT DUAL Battery Holder is made to handle the higher lithium battery supply voltage with a long service life. With the compact size SMD pins, you can mount the holder on your project PCB and power your project without any loose wiring.

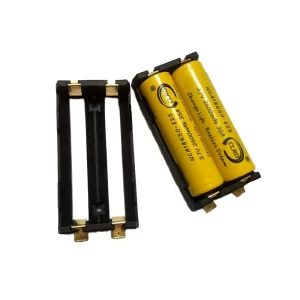

This Holder can hold two 18650 cylinders shaped cell to provide separate supply from both cells as slot are not interconnected, It means that the holder can be taken in use as a SINGLE battery Holder also. Additionally, you can easily combine two battery power by doing a series or parallel combination connection simply by soldering the contact points of the Holder from outside as per your project needs
It has ABS external / PC material, insert material is bronze pin environmental protection material. The ABS plastic can handle bearable heat which normal plastic can’t and Stainless steel rustproof shrapnel screens with gold plating will hold the batteries tightly, the installation is very convenient to replace the battery, it will not damage the battery and other parts, convenient and fast, safe and reliable.
Features:
- Lightweight and Easy to Mount on PCB
- Gold plated brass Contact Points
- Can be used as single and Dual battery Holder
- Best Body Material and Build Quality
- Good environmental and Temperature resistance
- The dual cell can be used Separately or as DUAL cell, Holder
Quick Specifications:
| Contact Material | Stainless Steel |
| Plating on Contact Point | Gold |
| Body Material | ABS |
| No. of Cells | 2 |
| Color | Black |
| Mounting Type | SMD |
| Operating Temperature Range (°C) | -40 to 180 |
| Dimensions in mm (LxWxH) | 78 x 40 x 15 |
| Weight(gm) | 18 |

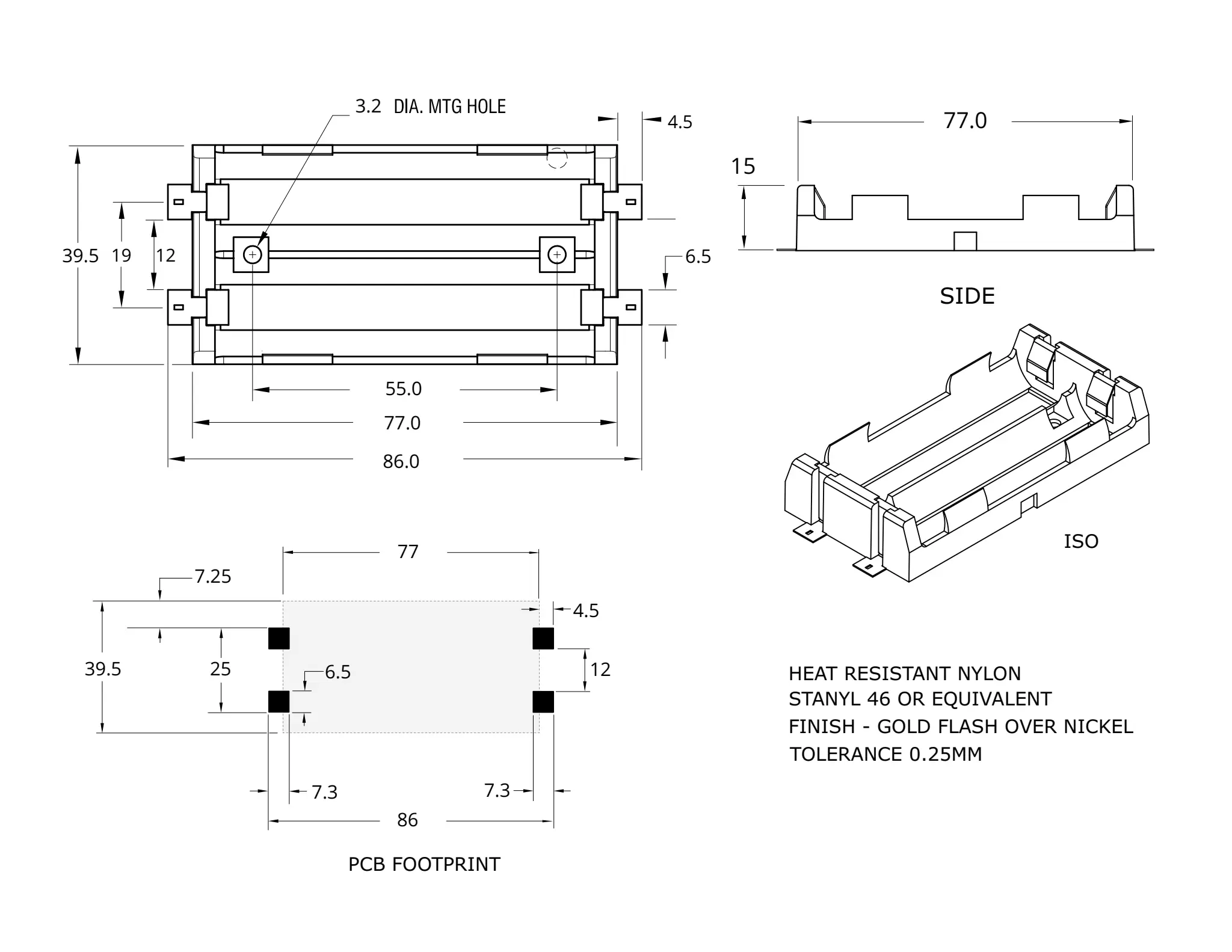

Dimensions
Package Includes:
1 x 18650 Dual SMD/SMT DUAL Battery Holder
