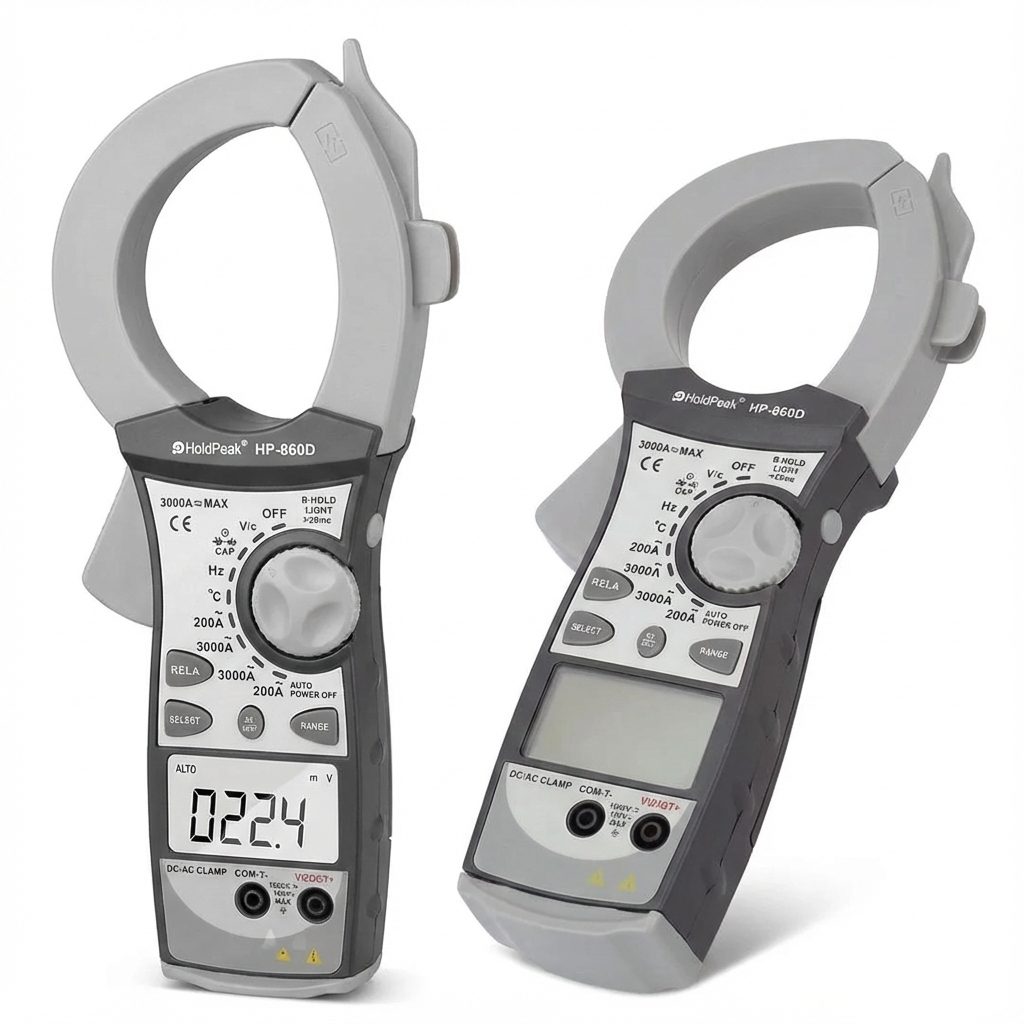

HoldPeak HP-860D AC/DC Clamp Meter

HoldPeak HP-860D AC/DC Clamp Meter

The HP-860D combines a jaw-type clamp for non-intrusive AC/DC current measurement with a full digital multimeter feature set. and wide measurement capability (voltages, currents up to 3000 A, resistance, capacitance, frequency, temperature, diode/continuity). Its dual LCD readout and auto-range capability make quick checks and comparisons easy.

The meter supports very large current measurements (200 A and a special 3000 A mode using the clamp), high voltage up to 1000 V DC / 750 Vrms AC (depending on range), capacitance, frequency to MHz ranges, and temperature using the included thermocouple. Built-in functions include REL, data hold, backlight, selectable manual/auto range, diode and continuity tests.

The clamp aperture is large (65 mm) to accept thick conductors or multiple conductors for coarse/large-current work. Safety is IEC-compliant for CAT III and the unit is powered by a 9 V battery.

Features:

• 3¾-digit LCD display (max 3999) with backlight.
• Auto-range with manual range override and REL function.
• Capacitance, frequency (to MHz), resistance, temperature (thermocouple), diode and continuity tests.

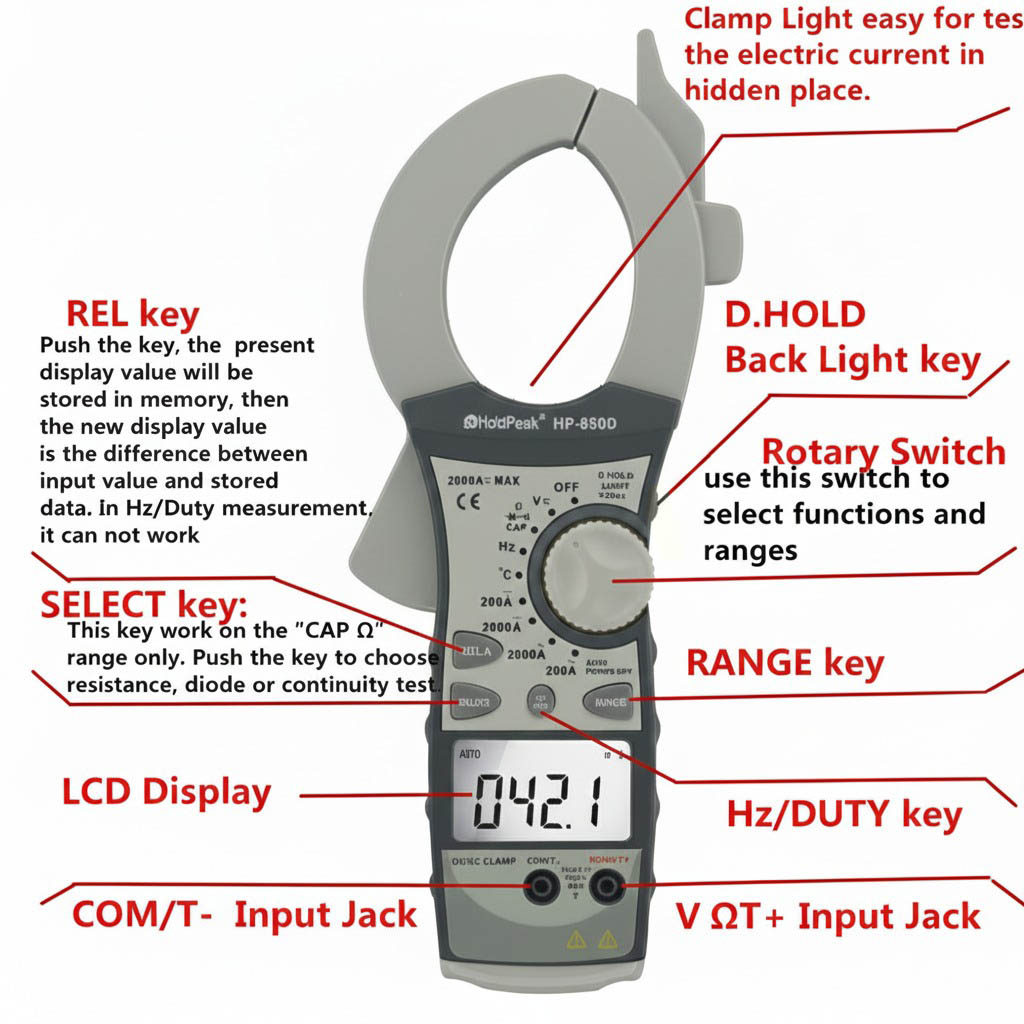

• D.HOLD (data hold) / backlight key and RANGE / SELECT / REL function keys.
• Low battery indication and auto power-off (~30 minutes).
• Clamp jaw opening: 65 mm.
• IEC safety standard: Double insulation, Pollution Degree 2, Overvoltage Category III.
• Overload protections on volt/resistance/capacitance/temperature ranges.
• Auto-Ranging – automatically selects the best measurement range.
• Dual Display – shows two readings simultaneously.
• Data Hold – freezes the current reading.
• Relative (REL) Mode – displays measurement relative to stored reference.
• Backlight – for easier reading in low light.
• Auto Power Off – saves battery when idle.

Specifications:

Applications:

• Field electrical troubleshooting and maintenance.
• HVAC, motor control and industrial power monitoring.
• Switch-mode power supply check and inverter diagnostics.
• Automotive and heavy equipment current checks (using clamp).
• Lab bench quick checks, installations and commissioning.
• Automotive & EV Systems.
• Electronics Repair & Testing.

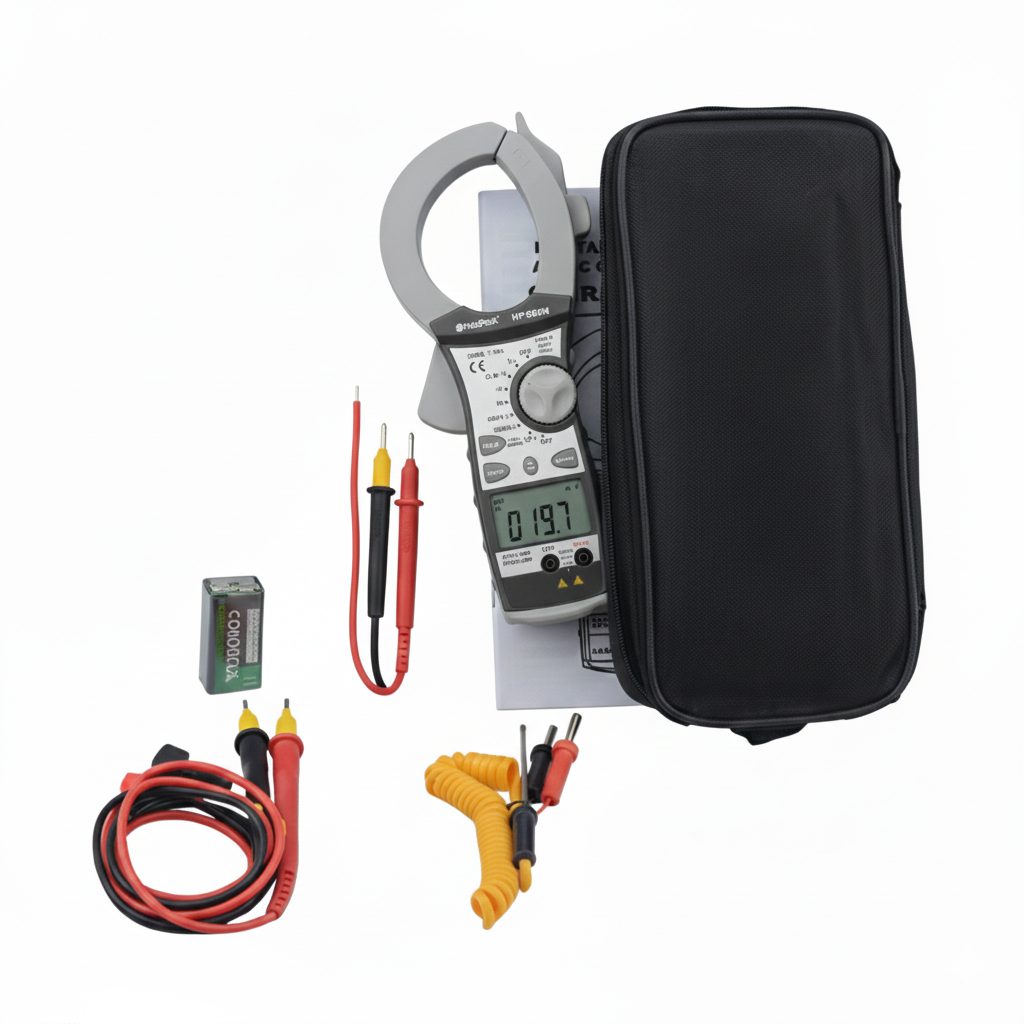

Packages:

• 1 × HoldPeak HP-860D Clamp Meter.
• 1 × English User Manual.
• 1 × 9V (6F22) Battery.
• 1 × Test Lead Set.
• 1 × Temperature Probe.
• 1 × Carrying Bag / Case.

Documents:

Datasheet
