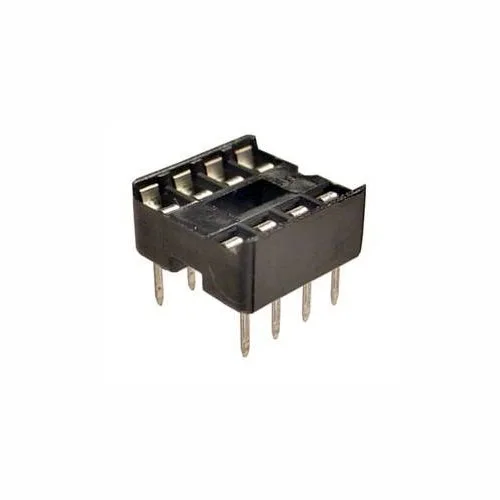

IC Socket (4+4)- Base 8 Pin
The IC Socket (4+4)‑ Base 8 Pin is an 8 pin IC holder, which can be soldered directly onto the PCB. The IC can be removed from this socket when required. The IC is placed on the socket at the time of use. This base acts as a removable IC holder.
The socket is used when the IC is temperature sensitive and the heat from the soldering iron can damage the IC. This socket is used when working with a microcontroller IC and can be removed for programming.
This is 8 Pin DIP IC Sockets. It is brand new and high quality.It has low contact resistor and is RoHS compliant.
Features
- Standard 8‑pin DIP socket adapter for through‑hole soldering.
- Two rows of 4+4 contacts suitable for common IC packages.
- Molded orientation notch for correct IC placement.
- Easy IC insertion and removal without soldering.
- Compatible with 2.54 mm pitch PCB patterns.
Specifications
| Parameter | Value |
|---|---|
| Pin Count | 8 pins |
| Contact Rows | 2 (4+4) |
| Pitch | 2.54 mm |
| Mount Type | Through‑hole PCB |
| Orientation Notch | Yes |
| Material | Plastic body with metal contacts |
| Typical Use | Standard DIP ICs |
Applications:
- Prototyping and testing of DIP‑8 integrated circuits.
- Replacement sockets in development boards or custom PCBs.
- Education and electronics training kits.
- Projects using 555 timers, op amps, or small microcontrollers.
- Repair and maintenance of existing circuits.
Package Include:
1x IC Socket (4+4)- Base 8 Pin
