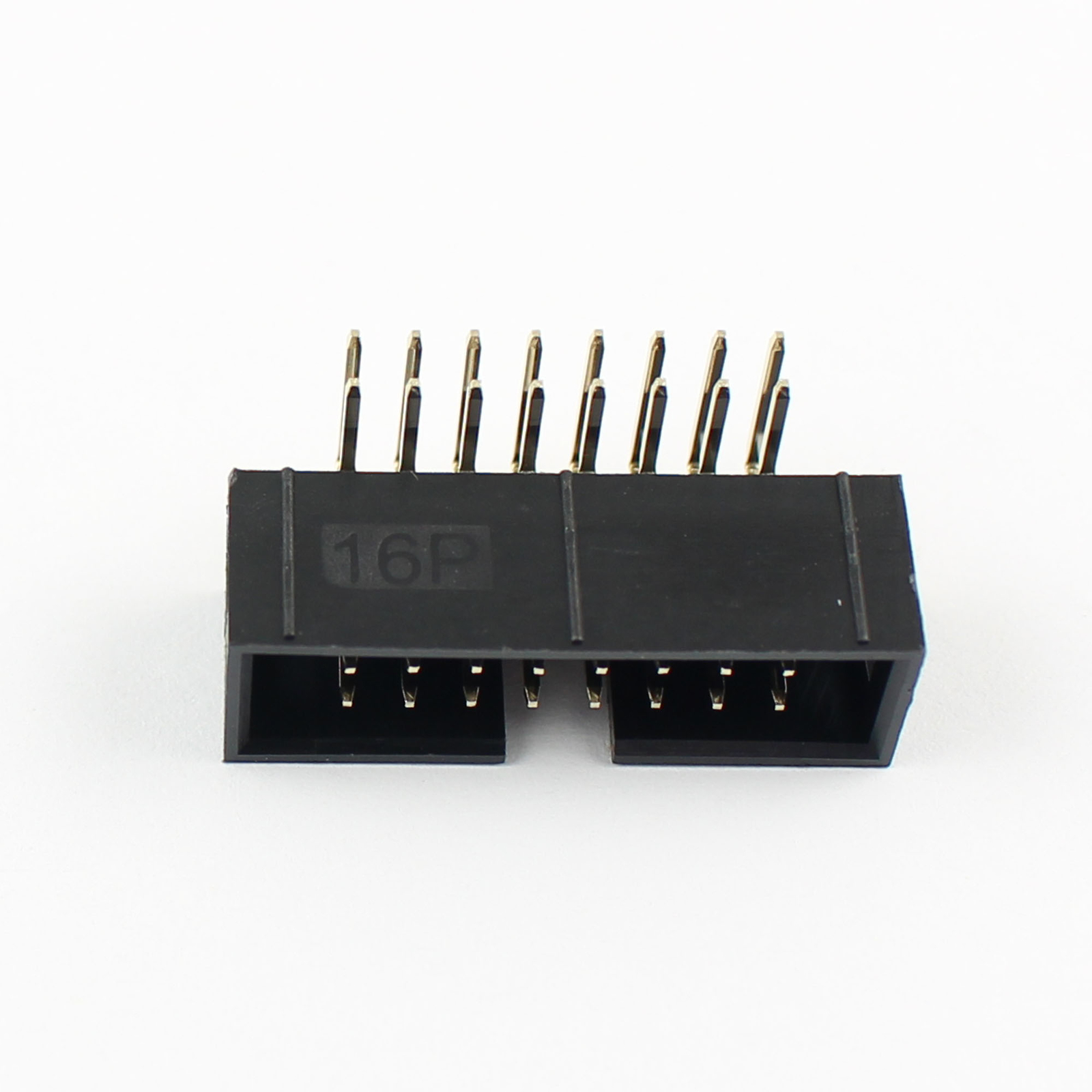

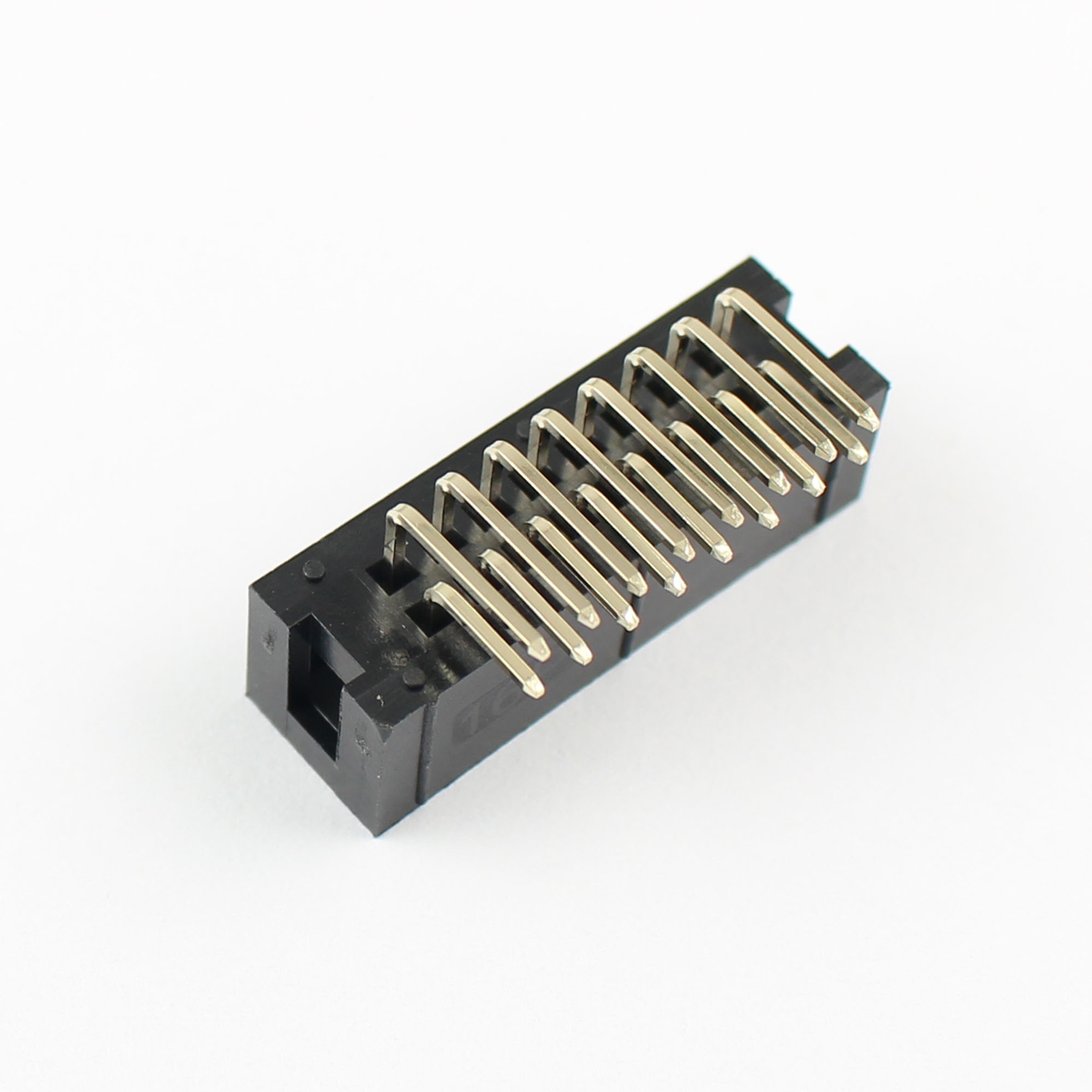

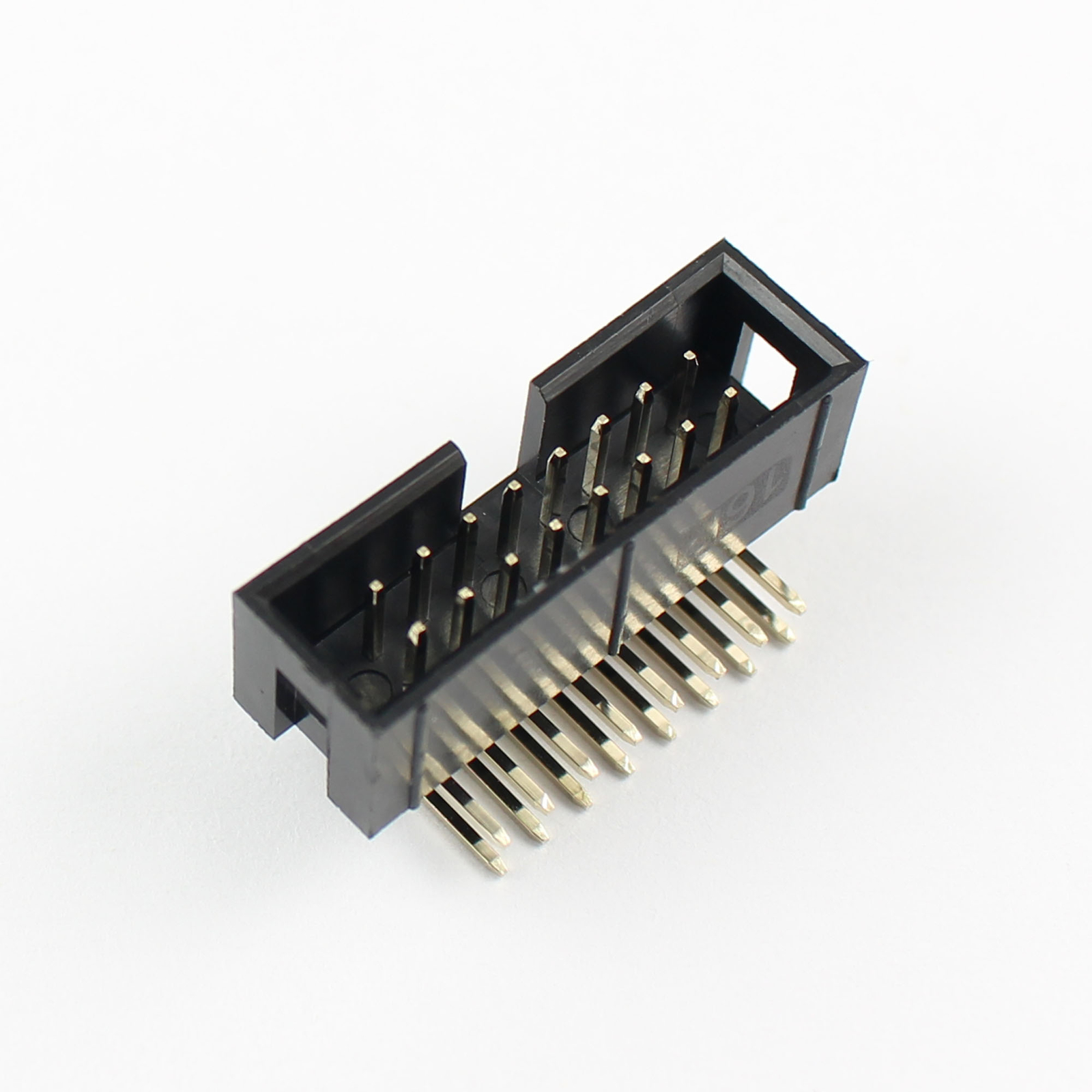

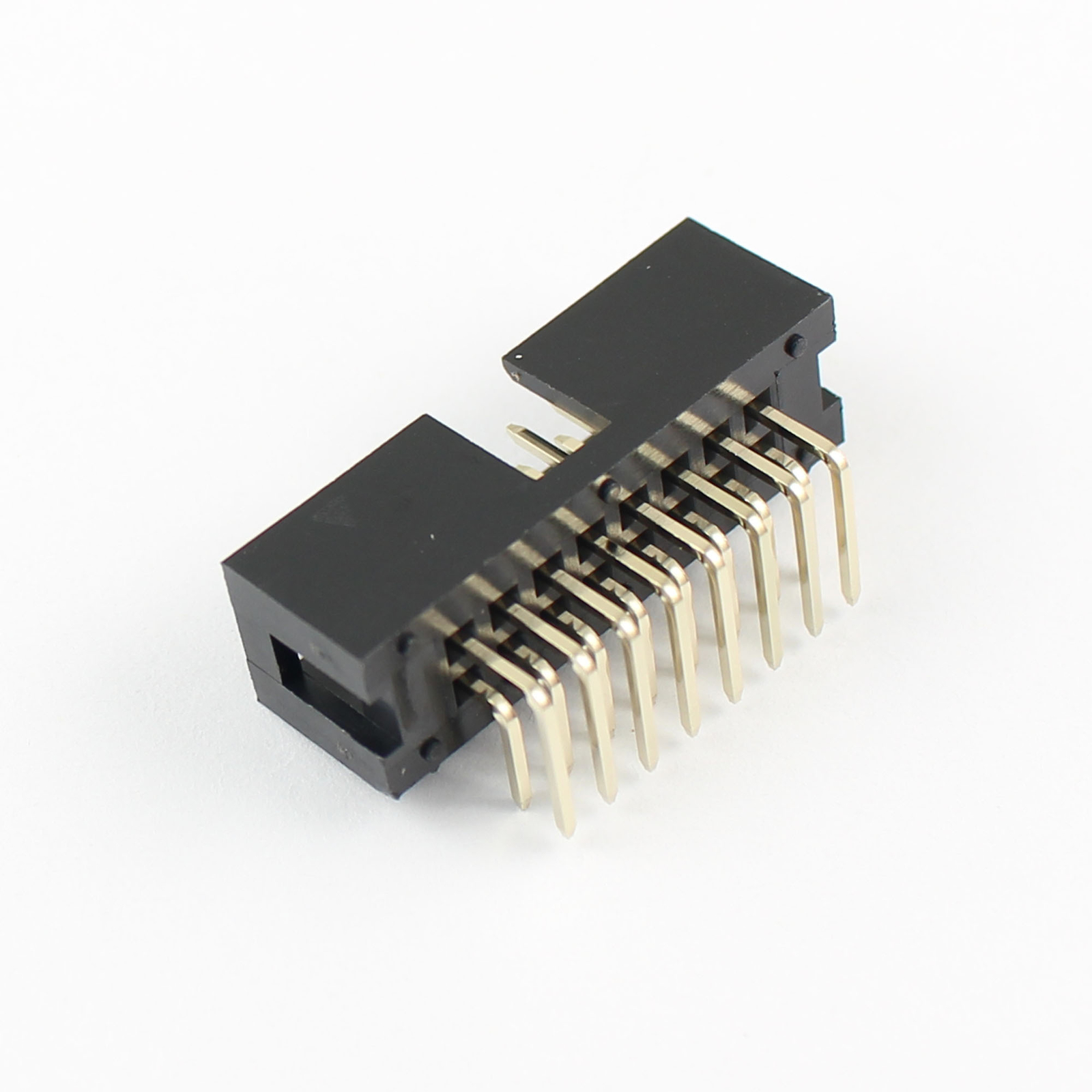

IDC FC-16 Male Angle Connector for PCB 16 pin
This 16-pin male IDC box header is designed for right-angle mounting on printed circuit boards. It features a robust plastic shroud (box) that protects the pins from bending and ensures a secure connection with mating female ribbon cable connectors. The 90-degree orientation is ideal for edge-of-board mounting, allowing for a lower profile or easier cable routing in tight enclosures.
✅Features
- Shrouded Design
- Polarized Notch
- Right-Angle Orientation
- Standard Spacing
- Durable Materials
📜📚Specifications
| Parameter | Value |
| Number of Pins | 16 (2 Rows of 8) |
| Pitch (Pin Spacing) | 2.54mm (0.1 inch) |
| Orientation | Right-Angle / 90-Degree |
| Mounting Type | Through-Hole (THT) |
| Operating Temp | -40°C to +105°C |
💻Applications
- Microcontroller Headers
- Display Interfaces
- Industrial Controls
- DIY Electronics
- Internal Computer Cabling
🎁Package Content
- 1 x IDC FC-16 Male Angle Connector for PCB 16 pin
