IDC FC-16 Male Connector for PCB 16 pin
The IDC FC-16 Male Connector is a professional-grade 16-pin (2×8) box header connector designed for reliable PCB connections using flat ribbon cables. This connector features an insulation displacement contact (IDC) design that allows for quick and efficient cable termination without wire stripping. The male pins on one side mount to PCB boards, while the IDC contacts on the opposite side crimp directly onto flat ribbon cables, making it ideal for custom cable assemblies and internal system connections.
Features
- Dual-Row Configuration
- Insulation Displacement Technology
- Shrouded Design
- Durable Construction
Specifications
| Parameter | Specification |
|---|---|
| Product Type | IDC Male Connector |
| Number of Pins | 16 Pin (2×8 Configuration) |
| Pitch | 2.54mm (0.1″) |
| Orientation | Straight |
| Current Rating | 3A max (per contact) |
| Voltage Rating | 250V AC |
| Housing Color | Black |

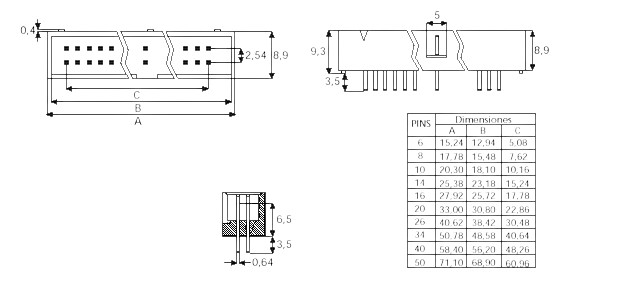

| Dimensions | 9 × 28 × 12 mm |
Applications
- Industrial Automation
- Computer Systems
- Telecommunications
- Consumer Electronics
Package Content
- 1 x IDC FC-16 Male Connector for PCB 16 pin
