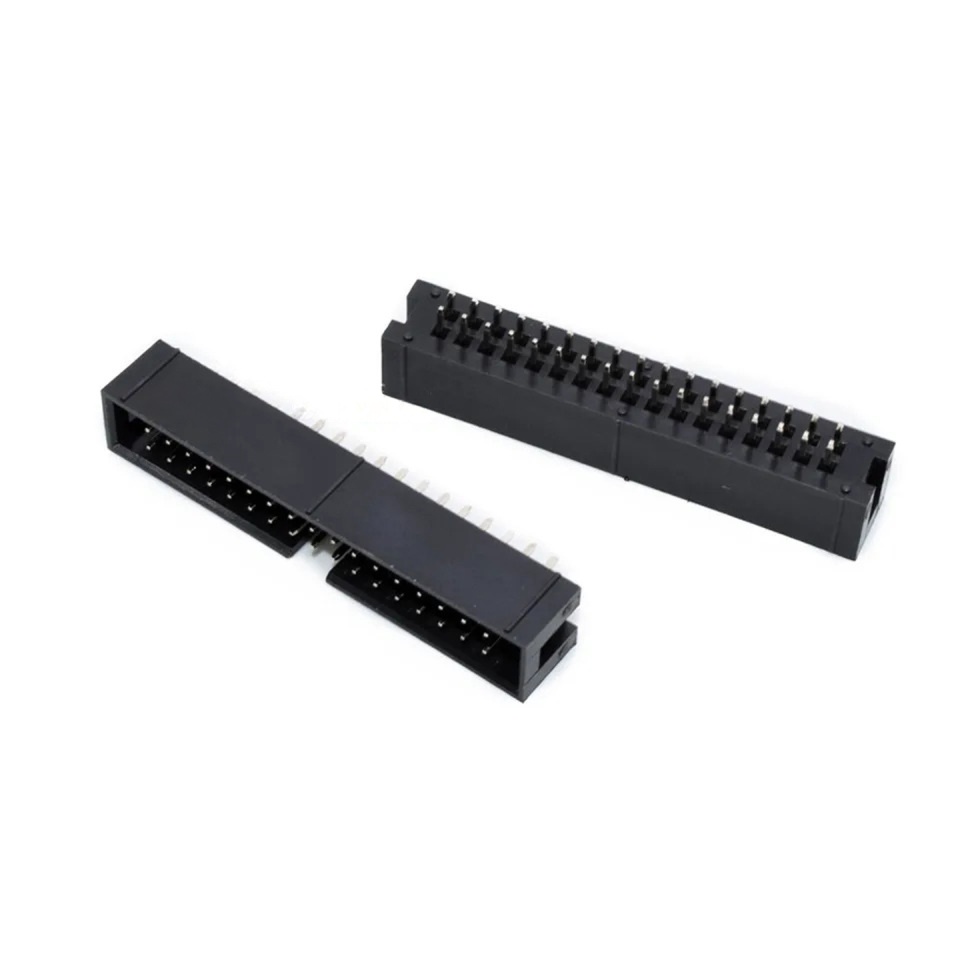

The IDC FC‑34Male Connector is a straight, double‑row plug designed for PCB mounting in a 2 x 17 pin configuration (34 pins), with a standardized 2.54 mm pitch. Its polarized housing ensures correct alignment and prevents improper insertion, enhancing mechanical reliability. The connector features .025″ square pins arranged on a .100″ grid compatible with industry-standard IDC ribbon cable sockets.

Constructed with gold-plated contacts over nickel, it offers robust corrosion resistance and low contact resistance while supporting currents up to 3 A. The housing is made from flame-retardant PBT or similar glass-filled thermoplastic, capable of withstanding harsh environments and temperatures from –40 °C to +105 °C. This ensures consistent electrical connectivity and durability even under repetitive mating cycles.

This connector is ideal for high-density board-to-cable interfaces, frequently used in port bus connections, LCD panels, and multi-wire ribbon cable assemblies. Its IDC architecture enables fast, solderless terminations, simplifying assembly and facilitating easy maintenance or replacement in field systems. Overall, the FC‑34 male header streamlines complex wiring harnesses while maintaining reliable signal transmission.

Features:

• 2 × 17 pin (34-pin) male IDC header.
• 2.54 mm (.100″) pitch, compatible with standard ribbon cables.
• Gold-over-nickel contacts for low resistance and corrosion protection.
• Polarized housing to ensure proper mating orientation.
• Supports up to 3 A per pin.
• Straight, double-row structure mounted directly to PCB.
• Flame-retardant housing material rated for –40 °C to +105 °C.

Specifications:

Applications:

• Port Bus Connections.
• LCD Panel Interfaces.
• Multi‑wire Ribbon Cable Assemblies.

Package includes:

• 1x IDC FC-34 Male Connector for PCB 34 pin
