Features:
- AC 100~240V or 12V DC input
- The cables come with a fitted fuse.
- Microprocessor controlled
- Li-ion, LiPo, and LiFe capable
- Input voltage monitoring. (Protects car batteries at the field)
- Battery break-in and cycling feature
- Data storage (Store up to 5 packs in memory)
- Internal resistance checker to see pack health
- Delta-peak sensitivity
- Individual cell balancing
- EU Plug to IEC C13 which is used in devices such as AC adapters, digital cameras, camcorders, monitors, printers, Direct TV and more!
- Power Supply Cord Details:
- Total length: 1 meter.
- Voltage: 100–240VAC 50/60Hz
- Current: 1.5A Max.
- Plug Type:
- Female End Type: IEC(To Charger)
- Male End Type: EU plug (To Power Distribution Board).

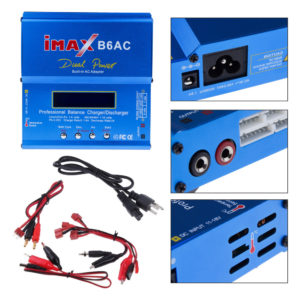

IMAX B6AC charger specification:
- 2 charger power options:
- AC: 100 V to 240 V (built-in power supply)
- DC: 11V to 18V
- Output power:
- charging power 80W
- discharge power 10 W
- Charging current: 0.1 A to 6.0 A
- Discharging current: from 0.1 A to 2.0 A
- Number of supported NiCD/NiMH cells: from 1 to 15 cells
- Number of supported Li-Po/Fe/Ion/HV cells: from 1 to 6 cells
- Supported Pb/Gel batteries: 2 V to 20 V
- Supported latest Lithium cells: LiHV
- Can be connected and controlled via a computer
- Software update possible
- LiPo battery meters
- Internal resistance meter
- Possibility to update the firmware
- 4 programming buttons
- Weight (without cables): 632 g
- Dimensions: 144 x 135 x 36mm
- Built-in sockets:
- Sockets for balancer adapter + 2-6S adapter
- Sockets for DEAN plug for charging (suitable grommets are included)
- Jack socket (12V DC power supply)
- AC Input Power Port (mains cable included)
- socket for an optional temperature sensor
Set contents
- MAX B6AC charger
- DEANS (T plug) Female adapter -> crocodile
- DEANS (T plug) Female adapter -> spark plug connector
- DEANS (T plug) Male adapter -> banana plugs
- DEANS (T plug) Female adapter -> JST
- DEANS (T plug) Female -> Futaba adapter
- Crocodile -> DC 5,5/2,5 mm adapter (to supply the charger from a 12 V battery)
- 1 x Power Cable.
- English user manual
The set does not include the AC adapter, it must be purchased separately.
