Insulated Cord End Terminal 10Pcs
Each ferrule consists of a tin‑plated copper tube encased in a nylon or polyamide insulation sleeve, color-coded to match specific wire gauges. Providing neat crimps, reliable electrical contact, and protection against fraying wire strands. Ideal for control panels, automation systems, and any application using stranded conductors with screw terminals.
Features
- Tin-plated copper tube delivers excellent conductivity and corrosion resistance.
- Nylon insulation sleeve with high-temperature tolerance up to 105 °C.
- Funnel entry design ensures easy wire insertion and prevents strand fraying.
- Color-coded by wire size, simplifying identification during installation.
Specifications

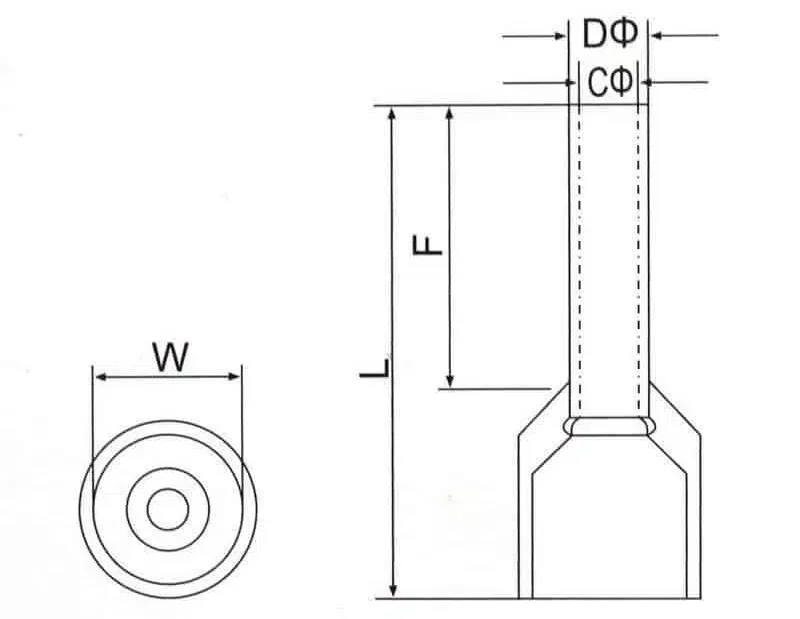

| Model | Wire Range | F (Tube Length) | L (Total Length) | W (Sleeve Ø) | C (Inner Tube ID) | Color |
|---|---|---|---|---|---|---|
| E1008 | 1 mm² (18 AWG) | 8.0 mm | 14.3 mm | 3.0 mm | 1.4 mm | Red |
| E1012 | 1 mm² (18 AWG) | 12.0 mm | 18.3 mm | 3.0 mm | 1.4 mm | White |
| E1508 | 1.5 mm² (16 AWG) | 8.0 mm | 14.3 mm | 3.5 mm | 1.7 mm | Red |
| E2508 | 2.5 mm² (14 AWG) | 8.0 mm | 15.4 mm | 4.0 mm | 2.3 mm | Grey |
| E2512 | 2.5 mm² (14 AWG) | 12.0 mm | 19.4 mm | 4.0 mm | 2.3 mm | Grey |
| E2516 | 2.5 mm² (14 AWG) | 16.0 mm | 23.6 mm | 4.0 mm | 2.3 mm | Red |
| E4009 | 4 mm² (12 AWG) | 9.0 mm | 16.4 mm | 4.5 mm | 2.8 mm | Green |
| E4010 | 4 mm² (12 AWG) | 10.0 mm | 17.4 mm | 4.5 mm | 2.8 mm | Yellow |
| E6012 | 6 mm² (10 AWG) | 12.0 mm | 20.5 mm | 6.0 mm | 3.5 mm | Green/Black |
| E7508 | 0.75 mm² (20 AWG) | 8.0 mm | 14.3 mm | 2.8 mm | 1.2 mm | Red |
| E10‑12 | 10 mm² (8 AWG) | 12.0 mm | 20.8 mm | 7.5 mm | 4.5 mm | Brown |
| E25‑16 | 25 mm² (4 AWG) | 16.0 mm | 28 mm | 11.0 mm | 7.5 mm | Black |
| E35‑16 | 35 mm² (2AWG) | 16.0 mm | 30.0 mm | 12.5 mm | 8.3 mm | Red |
| E50‑20 | 50 mm² (1/0 AWG) | 20.0 mm | 36.0 mm | 15.0 mm | 10.3 mm | Blue |
NOTE: measurements are done with ±5% accuracy
Applications
- Electrical Panels and Control Systems.
- Automotive Wiring.
- Power Distribution Systems.
- Building Automation Systems.
- Appliance Manufacturing.
- Renewable Energy Systems.
- Railway and Marine Applications.
- Industrial Machinery.
- PCB Assembly and Prototyping.
- DIY Electrical Projects.
Package Contents
- 10x Insulated Cord End Terminal (of specified size).
