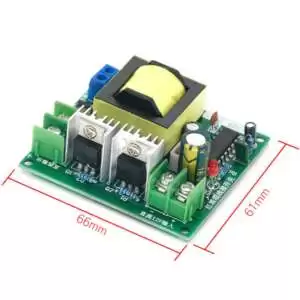

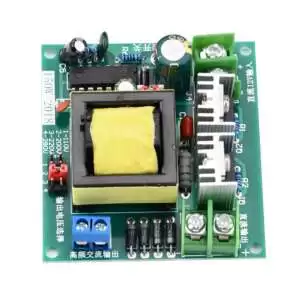

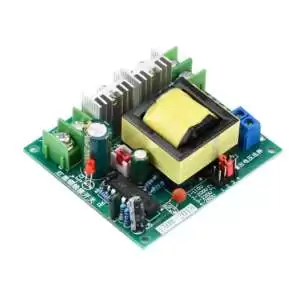

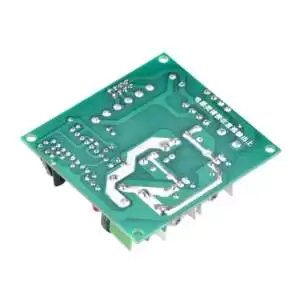

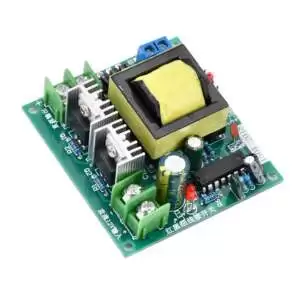

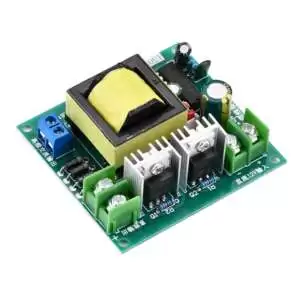

Inverter Module DC 12V to AC 110V/200V/220V/280V – 150W

Features:

1. Quiescent current is around 0.05A.
2. The output waveform is a frequency square wave.
3. The PCB board using military-grade board, mainly used for the DIY electronic pre-inverter stage.
4. Adopt a high-quality printed board, durable to use.

Specifications:

• Product Name: 150W Inverter Boost Circuit Board
• Material: Metal
• Power: 150W
• Input Voltage: DC12V
• Output Voltage: 110V/200V/220V/280V (Marked on the PCB. Can be set with jumper onboard)
• Output Wave Form: high frequency square wave or DC(un-filtered)
• Quiet stream: approx. 0.05A
• Output waveform: square wave
• Working Frequency: 37kHz

Notes:

1. The board is a high-frequency square wave AC output is generally inductive electrical tape can not be “mortar, fen coil transformer etc.
2. Take a small load (LED lights phone charger DVD decoder, etc.) connected to the output voltage of the recommendations, such as low gear: 172V or 200V.
3. Large long working hours load (≥100W) is recommended to increase the heat sink.
4. The power cannot be reversed. The other power supply and the power cord must have a large enough current. 5. No overload, no short circuit output. 6. The multimeter load voltage output frequency will appear higher (incorrect, not the actual voltage
