IR Tracking Sensor Module 4 Channel

90.00 EGP

Buy Now
Availability: In Stock
SKU:2542507864702

Specification:

  • Working voltage: 3.3V-5V DC
  • Working current: as far as possible to choose 1A above power supply
  • Working temperature: – 3 DEG C – less
  • Mounting aperture: M3 screw
  • Detection range: 1mm to 60 CM can be adjusted, the more close to the performance of the more stable, white reflection distance.
  • Operating voltage: 3.3V-5V DC

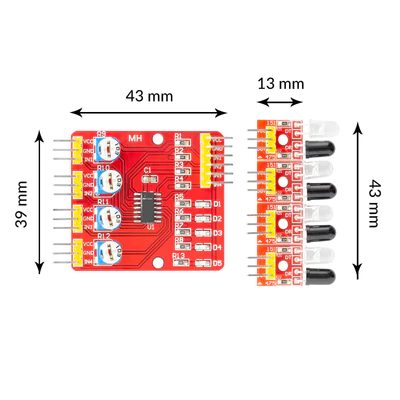

  • Main board: 43×39×11mm
  • sensor modules: 23 × 12 × 12 mm
  • Diameter of the fastening holes: 3m
  • Output interface: 6 wire system interface (4 for 1234 signal output end, + for positive power supply, – for negative power is also the ground)
  • Output signal: TTL level (can be directly connected to the microcontroller I/0, sensing the sensor back when the infrared light, red light, the output low level; no infrared light, the indicator is not bright, the output high level).

Application Range:

  • Intelligent vehicle or robot line (including black and white lines), along the black path, also called tracing.
  • Smart car to avoid the cliff, fall.
  • Smart car obstacle avoidance

Package Includes:

  • 1 x Tracking Module (Hollow Board + Small Plate Forward).
  • 12 X Female to Female Dupont Lines (10 cm).
