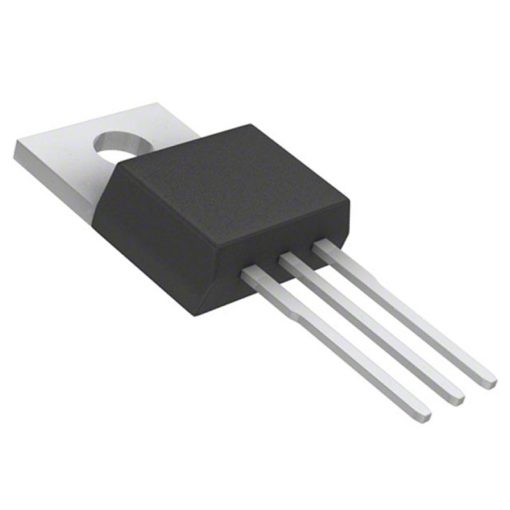

IRFB52N15D MOSFET Transistor 150V 60A 320W TO-220
The IRFB52N15D is a high-performance N-Channel Power MOSFET designed for high-frequency DC-DC converters and other applications requiring fast and efficient power switching. Housed in a robust TO-220 package, this transistor offers a low on-resistance and is 100% avalanche tested to ensure reliable and robust operation.
Features
- Low On-Resistance (RDS(on))
- Enhancement Mode
- Fast Switching Speed
- 100% Avalanche Tested
- Robust Device Performance
- Low Gate-to-Drain Charge
- Fully Characterized Capacitance and Avalanche Voltage
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Drain-Source Voltage (VDSS) | 150 | V |
| Continuous Drain Current (ID) at TC = 25°C | 60 | A |
| Pulsed Drain Current (IDM) | 240 | A |
| Gate-Source Voltage (VGS) | ±30 | V |
| Drain-Source On-Resistance (RDS(on)) max | 32 | mΩ |
| Total Power Dissipation (PD) at TC = 25°C | 320 | W |
| Operating Junction Temperature (TJ) | -55 to +175 | °C |
| Gate Threshold Voltage (VGS(th)) | 3 (min) – 5 (max) | V |
| Channel-to-Case Thermal Resistance (Rth(ch-c)) | 0.47 | °C/W |
| Package | TO-220 | – |
Applications
- High-Frequency DC-DC Converters
- Switching Power Supplies
- Motor Drives
- Power Amplifiers
- Load Switches
- Networking Applications
