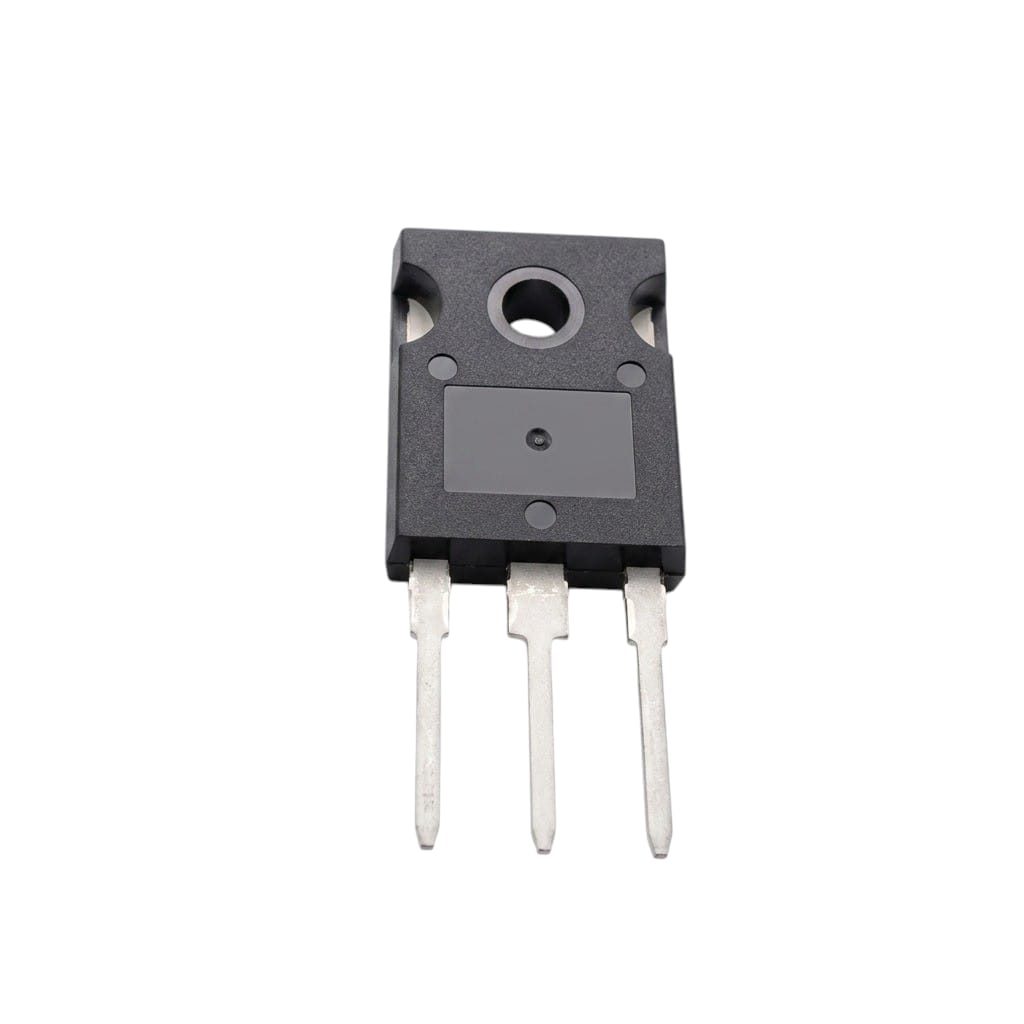

IRFP340 MOSFET Transistor N-Channel 400V 11A TO-247AC
The IRFP340 MOSFET Transistor N-Channel 400V 11A TO-247AC is a high-performance N-channel MOSFET transistor designed for use in high-voltage and high-current switching applications. Housed in a robust TO-247AC package, it supports a maximum drain-to-source voltage of 400V and a continuous drain current rating of 11A, making it suitable for power electronics, motor control, power supplies, and inverter circuits. Its low on-resistance and fast switching characteristics ensure efficient performance with reduced power loss, while the rugged package design enhances heat dissipation and reliability. This transistor is widely used in industrial and consumer electronic circuits requiring durability and stable operation under demanding conditions.
Features
- N-channel power MOSFET Transistor with high voltage capability (400V).
- Continuous drain current up to 11A.
- Low on-resistance for efficient power switching.
- Fast switching speed for high-frequency applications.
- Rugged TO-247AC package for superior thermal performance.
- High input impedance for easy drive requirements.
- Reliable and durable design for industrial and consumer electronics.
- Suitable for use in power supplies, inverters, and motor control systems.

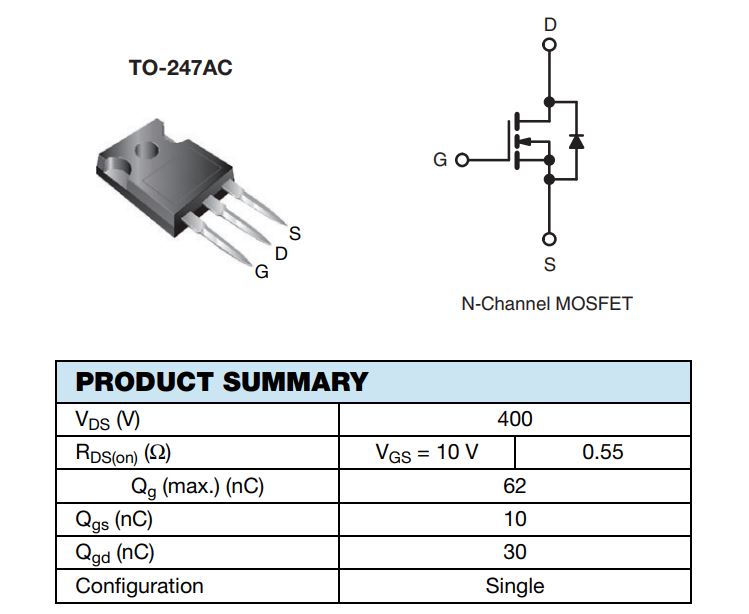

Pin Configuration
Specifications
| Parameter | Value |
| Transistor Type | MOSFET |
| Datasheet | IRFP340 |
| Drain-Source Voltage Vds | 400V |
| Gate-Source Voltage Vgs | ±20V |
| Continuous Drain Current (Tc = 25°C) Id | 11A |
| Continuous Drain Current (Tc = 100°C) Id | 6.9A |
| Pulsed Drain Current Idm | 44A |
| Linear Derating Factor | 1.2WC |
| Single Pulse Avalanche Energy Eas | 480 mJ |
| Repetitive Avalanche Current Iar | 11A |
| Repetitive Avalanche Energy Ear | 15 mJ |
| Maximum Power Dissipation (Tc = 25°C) Pd | 150W |
| Operating Junction & Storage Temperature | -55 °C to +150 °C |

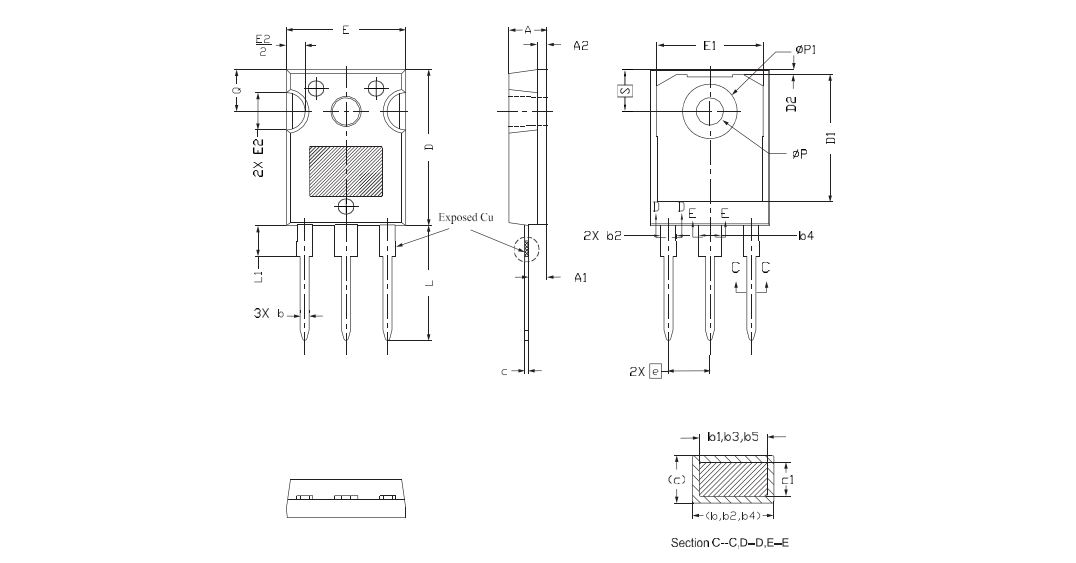

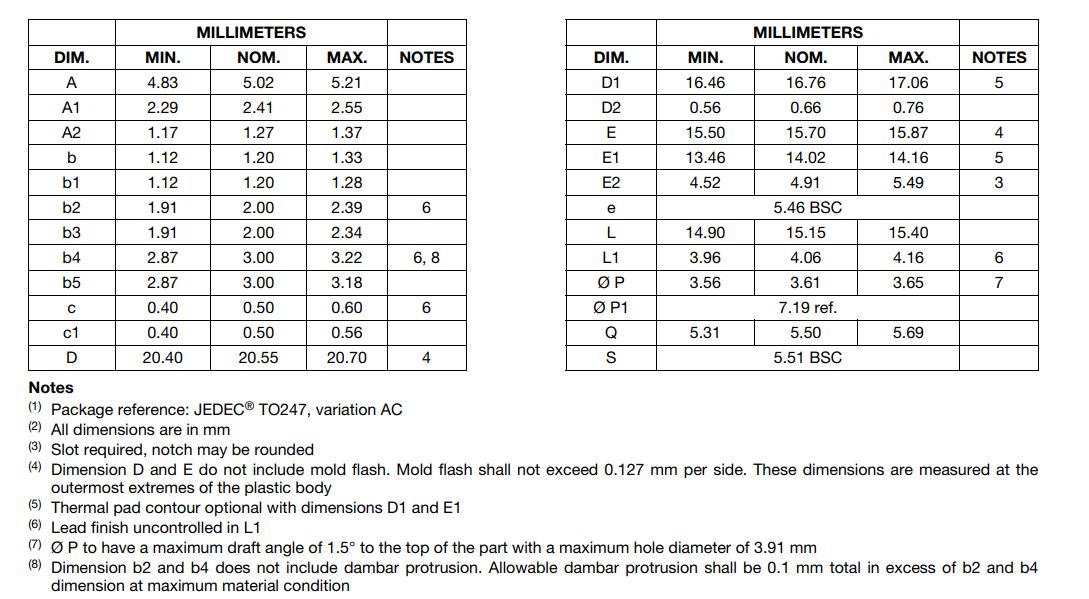

Dimensions
Applications
- Switching power supplies for efficient energy conversion.
- DC–DC converters in industrial and consumer electronics.
- Motor control circuits for appliances and industrial automation.
- Inverter circuits for renewable energy systems and UPS devices.
- Audio amplifiers requiring high-voltage MOSFETs.
- Lighting ballasts and high-voltage switching regulators.
- General-purpose high-speed switching in power electronics.
Package Contents
- 1 X IRFP340 MOSFET Transistor N-Channel 400V 11A TO-247AC
