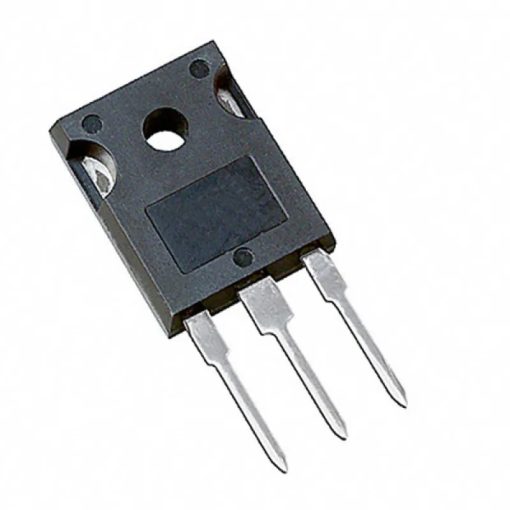

IRFP450 500V 14A N-Channel MOSFET 400mΩ@10V,8.7A 190W TO-247AC-3
IRFP450 is a rugged 500V/14A N-Channel MOSFET with low 0.4Ω on-resistance, fast switching, and a TO-247 package for high-power industrial applications.
55.00 EGP
Buy NowIRFP450 500V 14A N-Channel MOSFET 400mΩ@10V,8.7A 190W TO-247AC-3
The IRFP450 is a third-generation N-Channel power MOSFET from Vishay Siliconix, designed to offer a balanced combination of performance and robustness for demanding power electronics. It is engineered to handle high-power levels, making it a suitable upgrade where TO-220 packages are insufficient. The device is characterized by its high voltage capability and is presented in an industry-standard TO-247AC package.
This MOSFET is built with ruggedized device design principles, emphasizing reliability under stress. It features an isolated central mounting hole within its TO-247 package, which simplifies installation and improves thermal interface with heatsinks. The package design also provides increased creepage distances between its pins, aiding in meeting safety specification requirements in various applications.
The component is engineered for durability, being rated for repetitive avalanche conditions, which indicates its ability to withstand voltage spikes across its drain-source junction. It is designed for fast switching performance while maintaining stable operation, and its construction facilitates easier paralleling of multiple devices when higher current handling is needed. The design prioritizes a reliable operation in commercial and industrial environments.
Features:
- Dynamic dV/dt Rating.
- Repetitive Avalanche Rated.
- Isolated Central Mounting Hole.
- Fast Switching.
- Ease of Paralleling.
- Simple Drive Requirements.
Specifications:
| Physical | |
| Case/Package: | TO-247-3 |
| Mount: | Through Hole |
| Number of Pins: | 3 |
| Technical | |
| Continuous Drain Current (ID): | 14 A |
| Current Rating: | 14 A |
| Drain to Source Breakdown Voltage: | 500 V |
| Drain to Source Resistance: | 400 mΩ |
| Drain to Source Voltage (Vdss): | 500 V |
| Element Configuration: | Single |
| Fall Time: | 44 ns |
| Gate to Source Voltage (Vgs): | 20 V |
| Input Capacitance: | 2.6 nF |
| Max Operating Temperature: | 150 °C |
| Max Power Dissipation: | 190 W |
| Min Operating Temperature: | -55 °C |
| Number of Channels: | 1 |
| Number of Elements: | 1 |
| Packaging: | Bulk |
| Power Dissipation: | 190 W |
| Rds On Max: | 400 mΩ |
| Rise Time: | 47 ns |
| Turn-Off Delay Time: | 92 ns |
| Turn-On Delay Time: | 17 ns |
| Voltage Rating (DC): | 500 V |

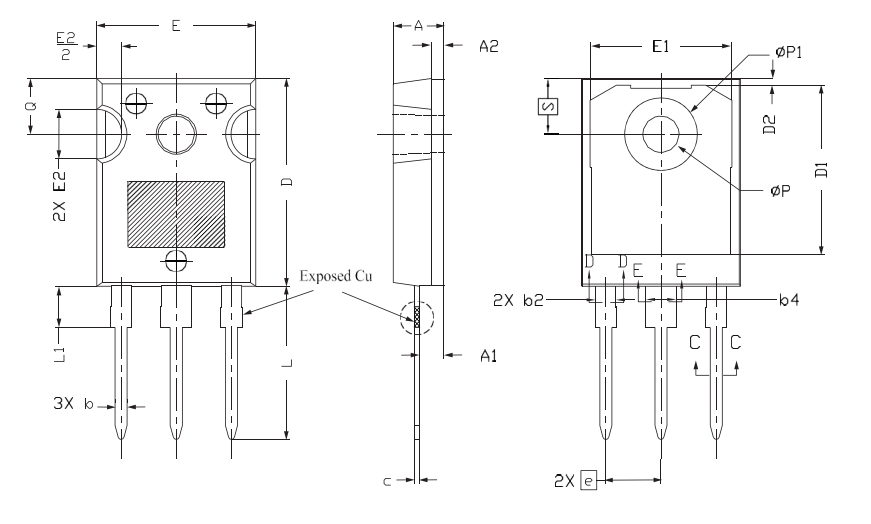

Pinout Diagram:

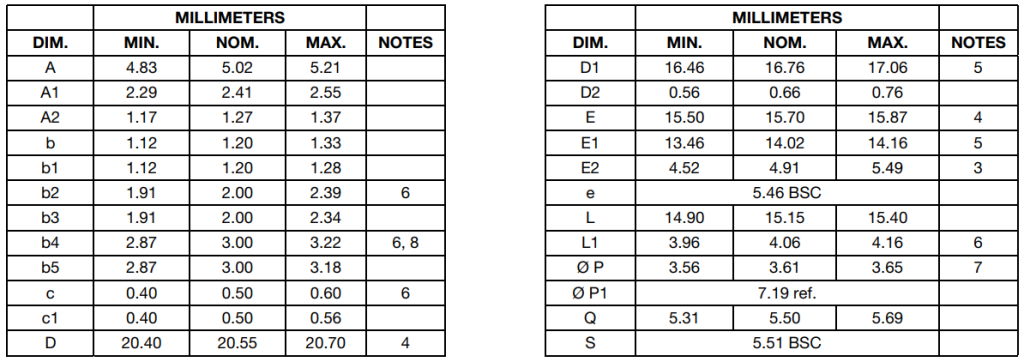

Footprint Diagram:
Applications:
- Switch Mode Power Supplies (SMPS).
- Motor Control and Drives.
- UPS (Uninterruptible Power Supplies).
- Inverters.
- Industrial Power Controls.
Package Contents:
- 1x IRFP450 500V 14A N-Channel MOSFET 400mΩ@10V,8.7A 190W TO-247AC-3
