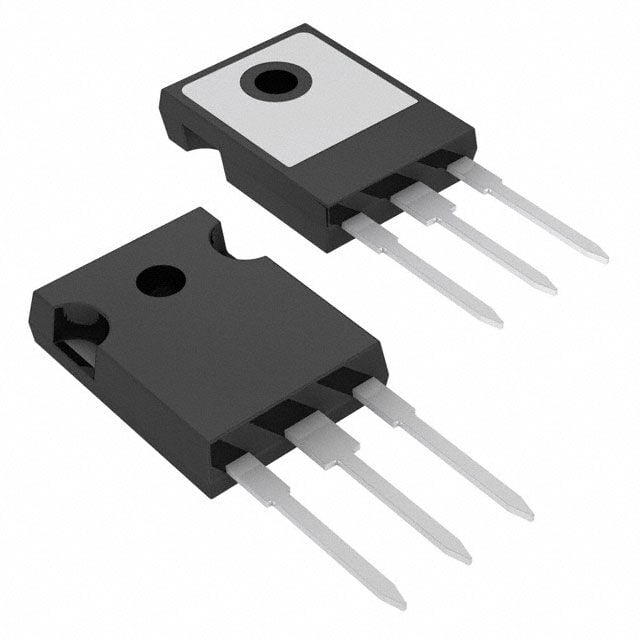

IRFPC40 N-channel MOSFET Transistor 600V 6.8A 150W TO-247

IRFPC40 N-Channel MOSFET Transistor 600V 6.8A 150W TO-247

The IRFPC40 N-Channel MOSFET Transistor 600V 6.8A 150W TO-247 is a high-voltage N-channel power MOSFET designed for efficient switching and power control applications, featuring a maximum drain-to-source voltage of 600V, continuous drain current of 6.8A, and total power dissipation of 150W. It operates in enhancement mode with low RDS(on) to minimize conduction losses and improve overall efficiency in high-power circuits. The device supports fast switching performance suitable for high-frequency operation up to 100kHz in SMPS, inverters, and DC-DC converters. A low gate charge requirement enables efficient gate driving and reduced switching losses. The rugged avalanche-rated design ensures reliability under inductive load conditions and transient voltage stress. With a wide operating temperature range of -55°C to +150°C, the MOSFET maintains stable performance in demanding environments.

The TO-247 package provides excellent thermal conductivity for effective heat dissipation when mounted on a heatsink. The device is compatible with standard gate drive levels such as 10VDC to ensure full enhancement. High dv/dt capability supports stable operation in fast switching applications. This MOSFET is suitable for industrial, power supply, motor control, and renewable energy systems requiring reliable high-voltage switching.

Features

• High drain-to-source voltage rating of 600V for reliable operation in high-voltage applications.
• Continuous drain current capability up to 6.8A, enabling efficient handling of moderate power loads.
• High power dissipation capacity of 150W, allowing stable performance in high-power circuits with proper heat management.
• Low RDS(on) for reduced conduction losses and improved energy efficiency.
• Fast switching performance for high-frequency applications such as SMPS and motor drivers.
• N-channel enhancement mode design for simple gate drive and easy circuit integration.
• Rugged avalanche-rated structure for improved reliability under transient and inductive load conditions.
• High dv/dt capability for stable operation in switching environments.
• TO-247 package provides excellent thermal performance and easy mounting with heatsinks.
• Suitable for linear and switching applications in industrial and power electronics systems.
• Low gate charge requirement for reduced switching losses and improved efficiency.
• Wide safe operating area (SOA) for enhanced device protection and long service life.

Pinout Configuration

Specifications

Applications

• Switch-mode power supplies (SMPS).
• DC-AC power inverters.
• Uninterruptible power supply (UPS) systems.
• High-voltage DC-DC converters.
• Motor drive and motor control circuits.
• Battery charging and power management systems.
• Industrial power control and automation equipment.
• High-voltage switching regulators.
• Electronic ballast and lighting control systems.
• Inductive load switching applications.
• Solar power inverter and energy systems.
• Power factor correction (PFC) circuits.
• High-frequency switching applications.
• General-purpose high-voltage power switching circuits.

Package Contents

• 1 x  IRFPC40 N-Channel MOSFET Transistor 600V 6.8A 150W TO-247

DataSheet

• IRFPC40
