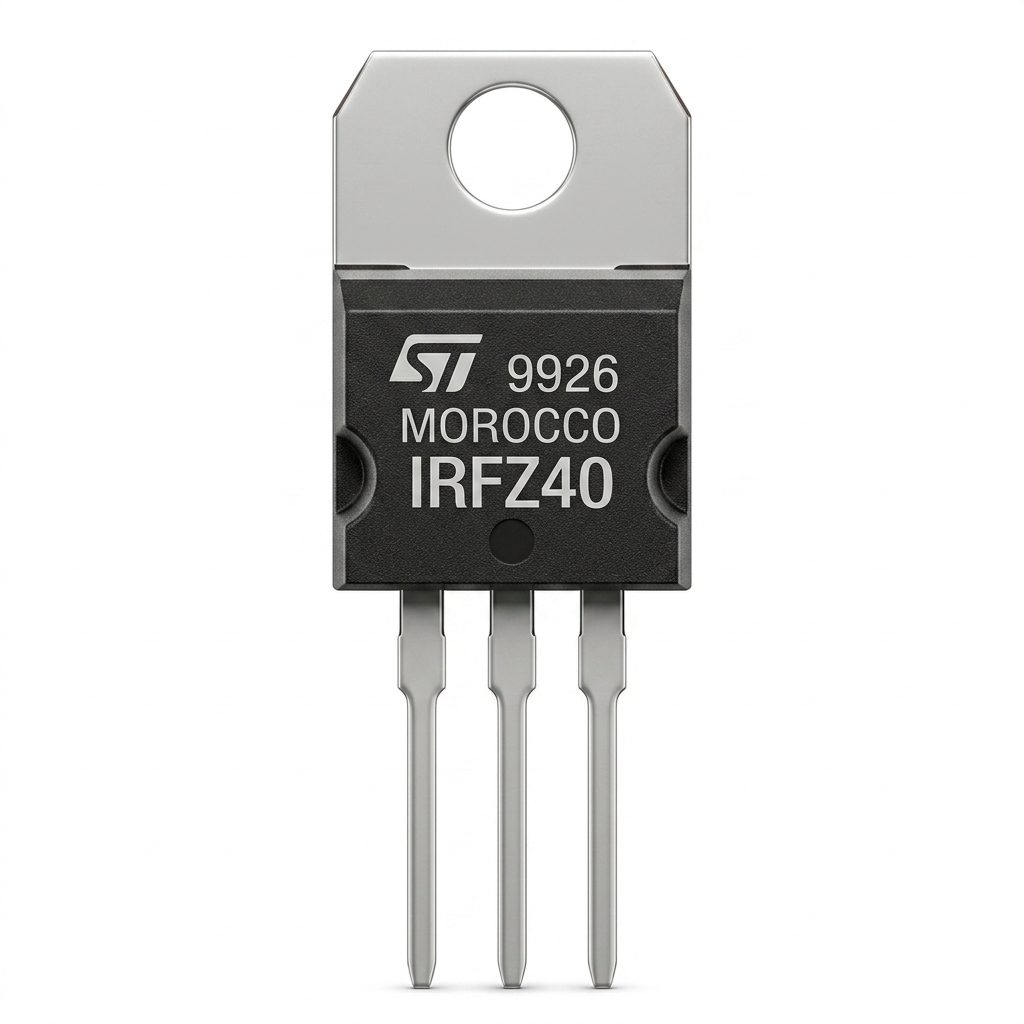

IRFZ40 N-Channel MOSFET Transistor 50V 35A TO-220
IRFZ40 is an N-channel power MOSFET used for switching and power-handling in low-voltage, high-current applications (motor drivers, DC-DC converters, etc.).
15.00 EGP
Buy NowIRFZ40 N-Channel MOSFET Transistor 50V 35A TO-220
The IRFZ40 is a rugged, through-hole TO-220 N-channel MOSFET designed for demanding power applications that require low on-resistance and fast switching. It provides robust inductive-load tolerance, an integrated body diode for free-wheeling, and good thermal performance when mounted to a heatsink. Typical uses include motor controllers, switching regulators, power switches, and general-purpose high-current switching where VDS ≤ 50 V and high pulsed/sustained currents are required. The device is made to withstand repetitive pulse stresses and includes characteristics that help reduce switching losses and EMI in practical circuits.
Features:
- N-channel enhancement MOSFET topology.
- Low conduction losses (low RDS(on)).
- Fast switching performance.
- Rugged polysilicon gate cell structure for inductive loads.
- Integrated body (flyback) diode.
- Extended safe-operating area and thermal robustness.
- TO-220 package for easy mounting and heatsinking.
Specifications:
| Parameter | IRFZ40 |
|---|---|
| Drain-Source Voltage (VDSS): | 50V |
| Gate-Source Voltage (VGS): | ±20V |
| Continuous Drain Current (TC=25°C): | 35A |
| Pulsed Drain Current (IDM): | 210A |
| On-state Resistance RDS(on) (VGS=10V): | 0.028Ω |
| Gate Threshold VGS(th): | 2.0 – 4.0V |
| Input Capacitance Ciss: | 2450pF |
| Output Capacitance Coss: | 740pF |
| Total Gate Charge Qg: | ~100nC |
| Pulsed Avalanche Energy EAS: | 53mJ |
| Power Dissipation (TC=25°C): | 150W |
| Junction Temperature Range: | −55 to +175 °C |

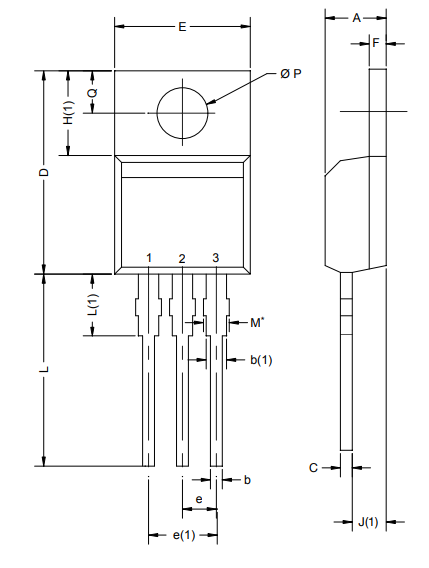

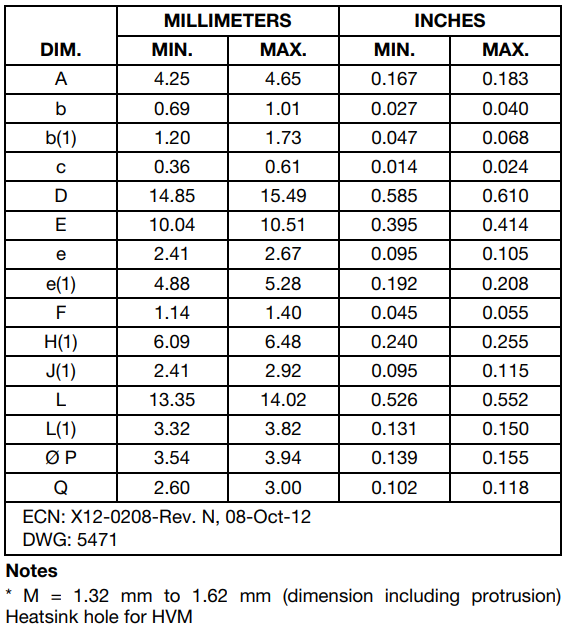

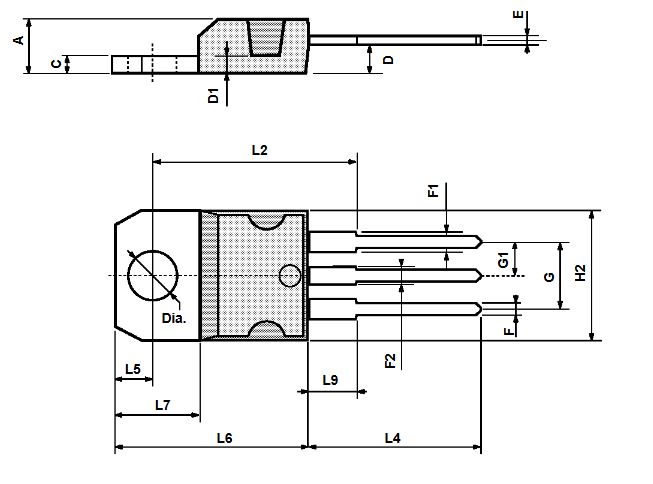

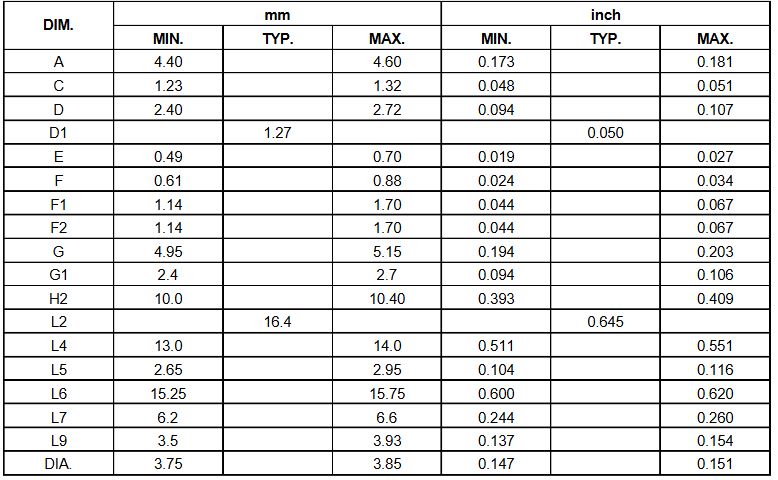

| Package: | TO-220 |
Pinout:
| Pin | Name | Function |
|---|---|---|
| 1 | Gate (G) | Gate drive input |
| 2 | Drain (D) | Drain (also connected to metal tab) |
| 3 | Source (S) | Source / return (emitter) |
Applications:
- Motor drivers and H-bridges.
- DC-DC converters and switching regulators.
- Power switches and relay/solenoid drivers.
- Low-voltage inverters and UPS circuits.
- Automotive and industrial power control (within VDS limits).
- LED drivers and high-current switching loads.
Packages:
- 1x IRFZ40 N-Channel MOSFET Transistor 50V 35A TO-220.
