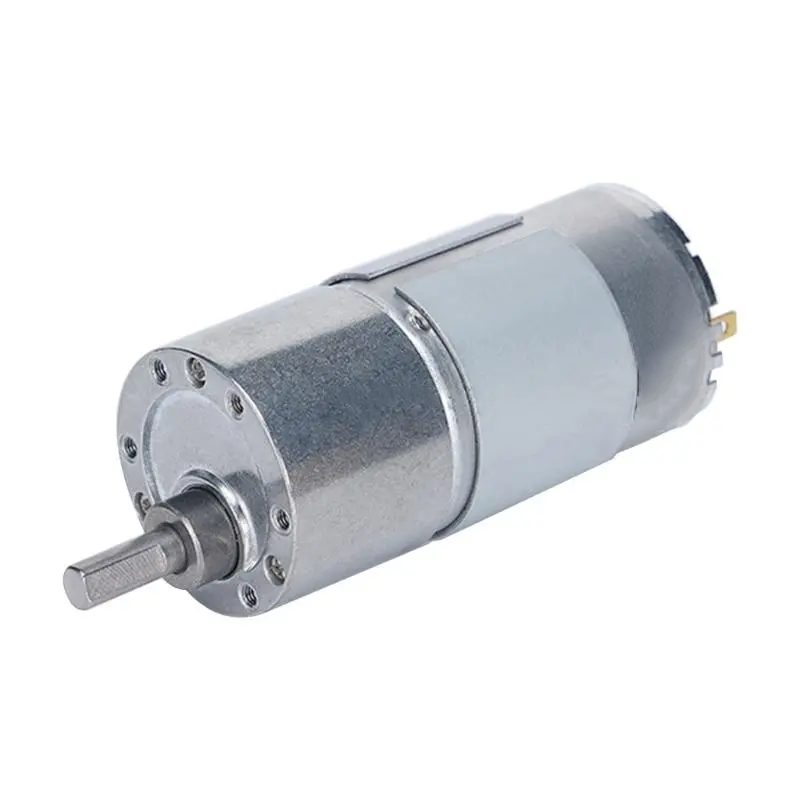

JGB37-545 High Torque Gear Motor 12VDC 70RPM 35Kg.cm with Bracket

Specifications:

• Nominal voltage: 12 V
• Free-run speed at (12 V): 70 RPM
• Free-run current at (12 V): ≤200mA
• Rated speed at (12 V): 58 RPM
• Rated current at (12 V): ≤1A
• Stall current at 12 V: 3.8 A (Stall is not allowed)
• Stall torque at 12 V: 35 kg.cm
• Gear ratio: 1:90
• Reductor size: 24 mm

L=24 mm
