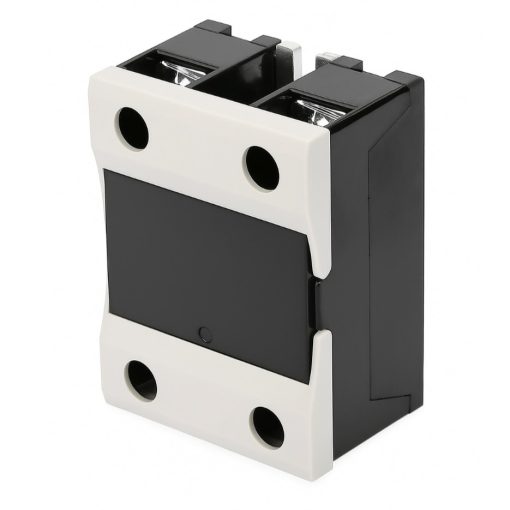

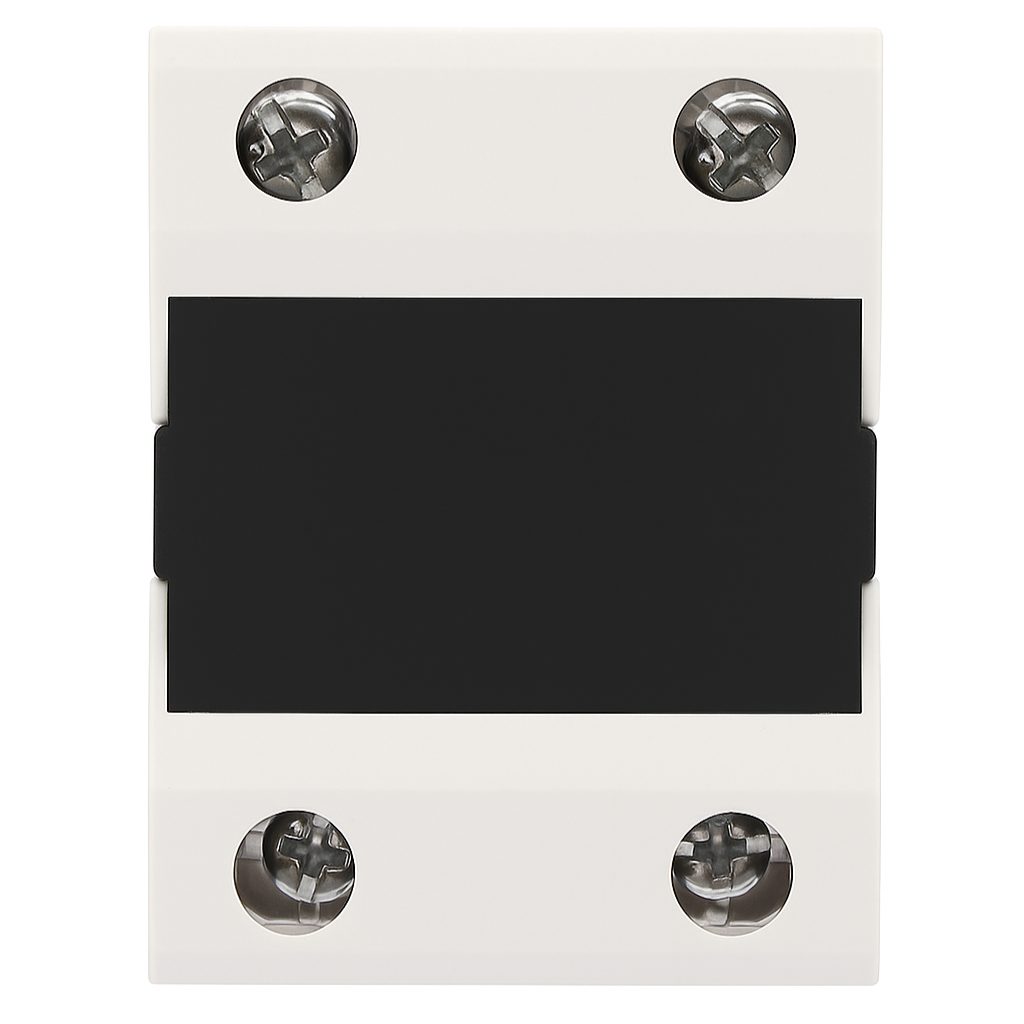

JGX-40VA Solid State Relay 0.25W-500KΩ to 24V~480VAC 40A
The JGX-40VA is a single-phase solid state relay featuring potentiometer input control for variable power regulation. Rated at 40A with a load voltage range of 24-480VAC, this SCR-based relay utilizes optical isolation and phase-angle control technology to deliver precise, maintenance-free switching in industrial and commercial power control applications.
✅Features
- High Current Capacity
- Wide Voltage Range
- Protective Housing
- Low Control Power
- Silent Operation
📜📚Specifications
| Parameter | Specification |
|---|---|
| CONTROL INPUT | |
| Control Type | Variable Resistor |
| Control Resistance | 500kΩ |
| Control Power | 0.25W (minimum) |
| OUTPUT (LOAD SIDE) | |
| Load Voltage | 24-480VAC |
| Load Current | 40A (resistive load) |
| Number of Phases | Single Phase |
💻Applications
- Lighting Control
- Heating Systems
- Temperature Control
- Agricultural Applications
