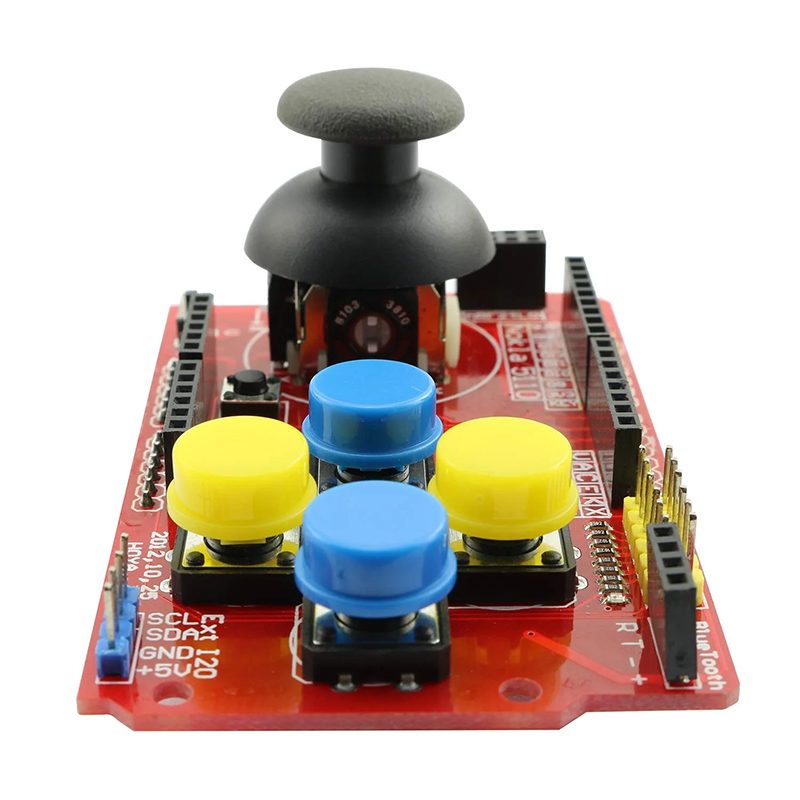

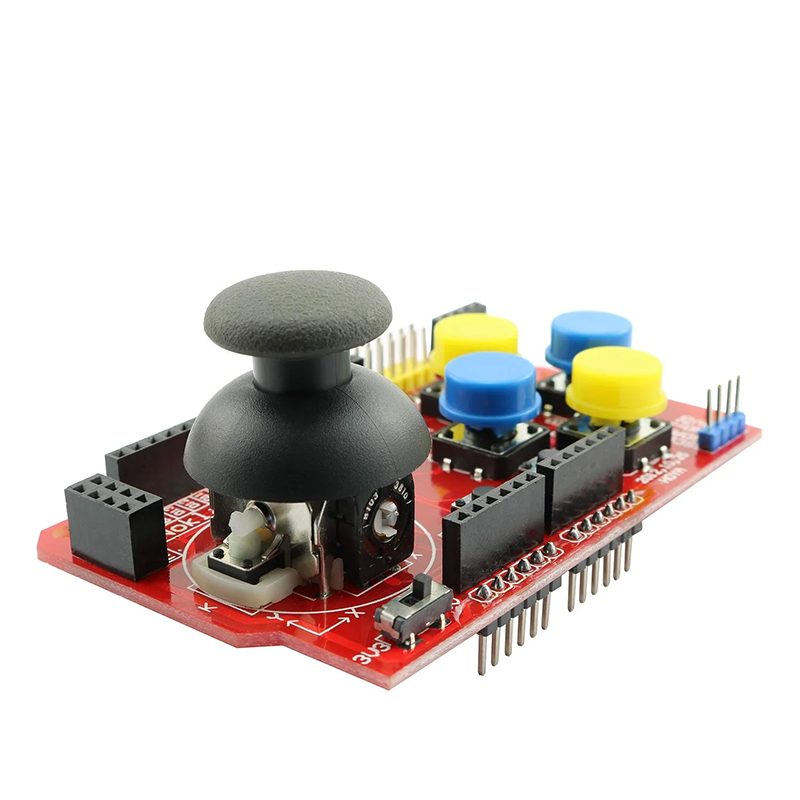

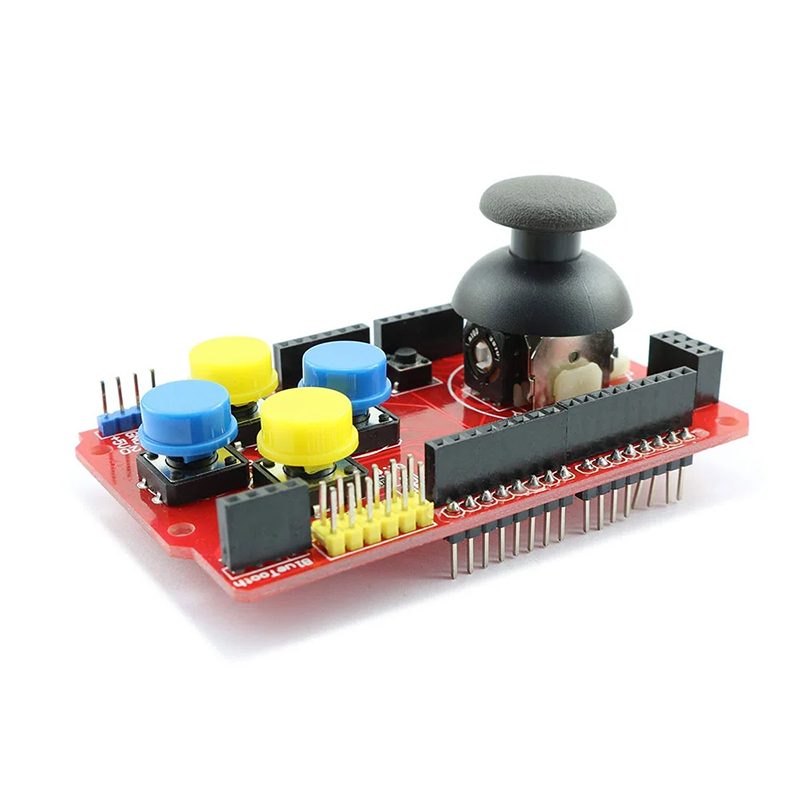

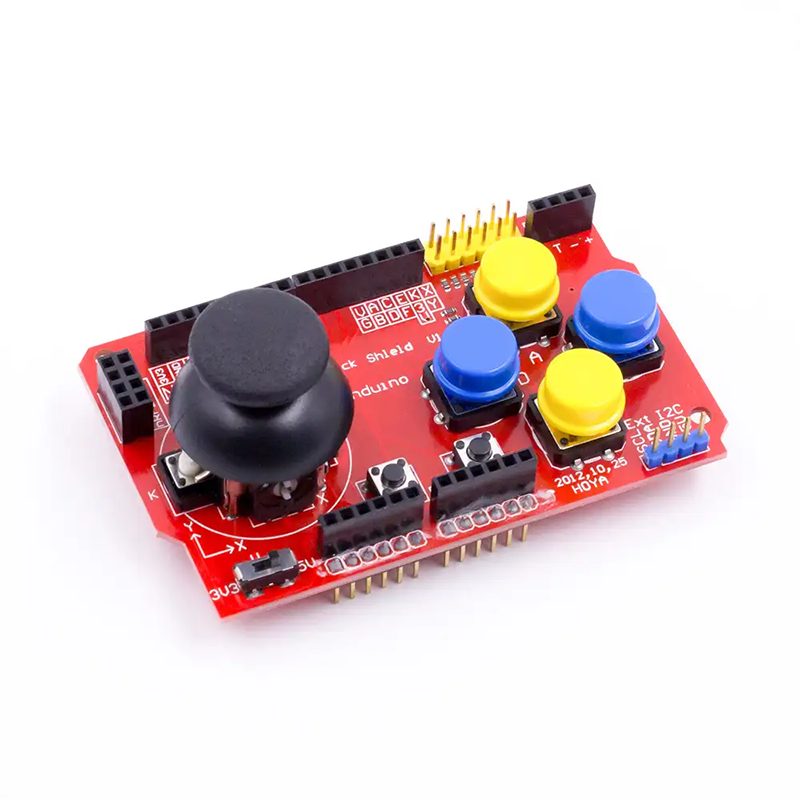

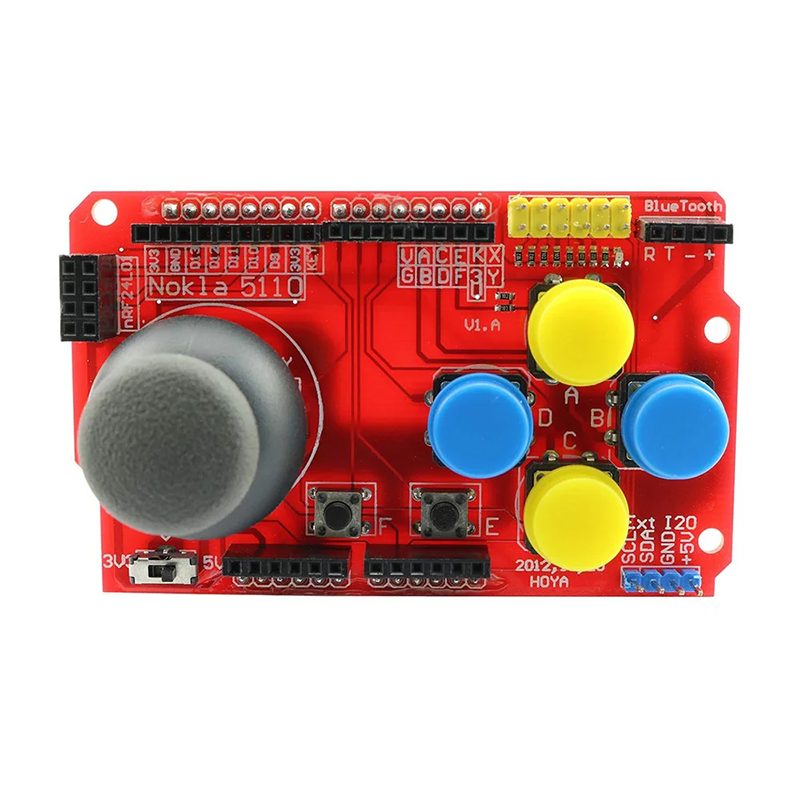

Joystick Shield for Arduino
The Joystick Shield for Arduino is a compact plug-on board that instantly transforms an Arduino Uno or Mega into a handheld controller. It places a two-axis thumb joystick and seven momentary pushbuttons directly above the Arduino headers so you can prototype joystick-driven projects without wiring. A slide switch lets you choose between 3.3 V and 5 V logic, making the shield suitable for both 3.3 V and 5 V Arduino platforms.
Electrically the shield is simple to integrate: analog outputs from the joystick provide variable X/Y readings while the pushbuttons (including the joystick’s select switch) act as digital inputs. The shield includes extra breakout headers to mount commonly paired modules for example a Nokia 5110 LCD or an nRF24L01 radio so you can build interactive displays or wireless controllers using the same board. The physical layout mirrors Arduino Uno/Mega stack-up to keep connections intuitive.
Mechanically compact and geared toward learning, gaming, remote control and prototyping, the Joystick Shield reduces assembly time for joystick projects and encourages iterative experimentation. The datasheet supplies mechanical dimensions, a functional block diagram and recommended wiring so designers can drop the shield onto projects with confidence. SKU and ordering info are included for quick procurement.
Features:
- Arduino Uno and Mega compatible shield for joystick control.
- Operates at both 3.3 V and 5 V with a slide voltage-select switch.
- Two-axis analog thumb joystick with integrated push (select) button.
- Seven momentary pushbuttons (6 + joystick select).
- Additional breakout headers for Nokia 5110 LCD and nRF24L01 modules.
- Simple stackable form-factor for direct mounting on Arduino headers.
- Includes mechanical drawings and a functional block diagram for easy integration.
Specifications:
| Parameter: | Value: |
|---|---|
| Part / SKU: | MDU1142. |
| Compatibility: | Arduino Uno / Mega. |
| Operating voltage: | 3.3 V & 5 V (selectable via slide switch). |
| Joystick: | Two-axis analog thumb joystick with push (select) switch. |
| Pushbuttons: | 7 momentary pushbuttons (6 + joystick select). |
| Additional headers: | Breakouts for Nokia 5110 LCD and nRF24L01 modules. |
| Mounting: | Stacks on Arduino headers (shield form factor). |
| Documentation: | Mechanical dimensions (mm) and functional block diagram included. |
| Typical use: | Handheld controller / input interface for Arduino projects. |
Dimension:
Connection Pinout:
- RF transceiver circuit nRF24L01+: IRQ-D8 CE-D9 CSN-D10 MOSI-D11 MISO-D12 CLK-13
- Bluetooth transceiver circuit HC-06: RXD-D1 TXD-D0
- Button: A~D2 B~D3 C~D4 D~D5 E~D6 F~D7 X~A0 Y~A1 Key_Joystick~D8
- Nokia 5110 Display: 3V3 GND D13 D12 D11 D10 D9 3V3
Circuit Diagram:
Applications:
- Gamepad and joystick input for Arduino projects.
- Robot teleoperation and remote control prototypes.
- Interactive menus and UI navigation for small displays.
- Wireless controller projects using nRF24L01 modules.
Package Contents:
- 1x Joystick Shield for Arduino
