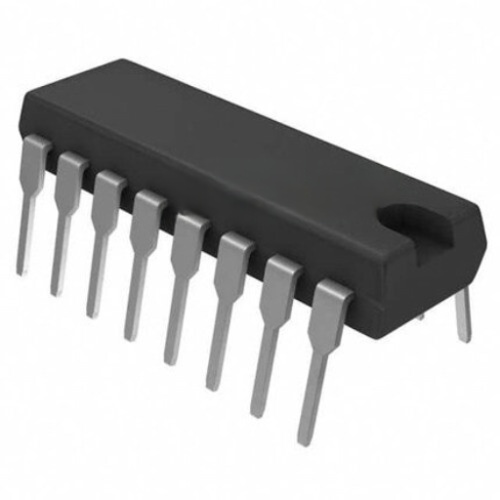

KA3525A Regulating Pulse Width Modulator IC DIP-16
The KA3525A is a monolithic integrated circuit that incorporates all the essential control circuits for a pulse-width modulating (PWM) regulator. This versatile IC integrates a voltage reference, an error amplifier, a pulse width modulator, an oscillator, an under-voltage lockout circuit, a soft-start feature, and the output driver all on a single chip. It is specifically designed to drive N-channel power MOSFETs and is a staple in switch-mode power supplies and other power control circuits. The KA3525A generates two complementary PWM signals, enabling precise control over the output voltage through a feedback mechanism that compares the output signal to a stable reference voltage.
Features
- High-Precision Voltage Reference
- Adjustable Oscillator
- Integrated Soft-Start
- Deadtime Control
- Under-Voltage Lockout
- Wide Operating Voltage
- Shutdown Protection
Specifications
| Parameter | Value |
|---|---|

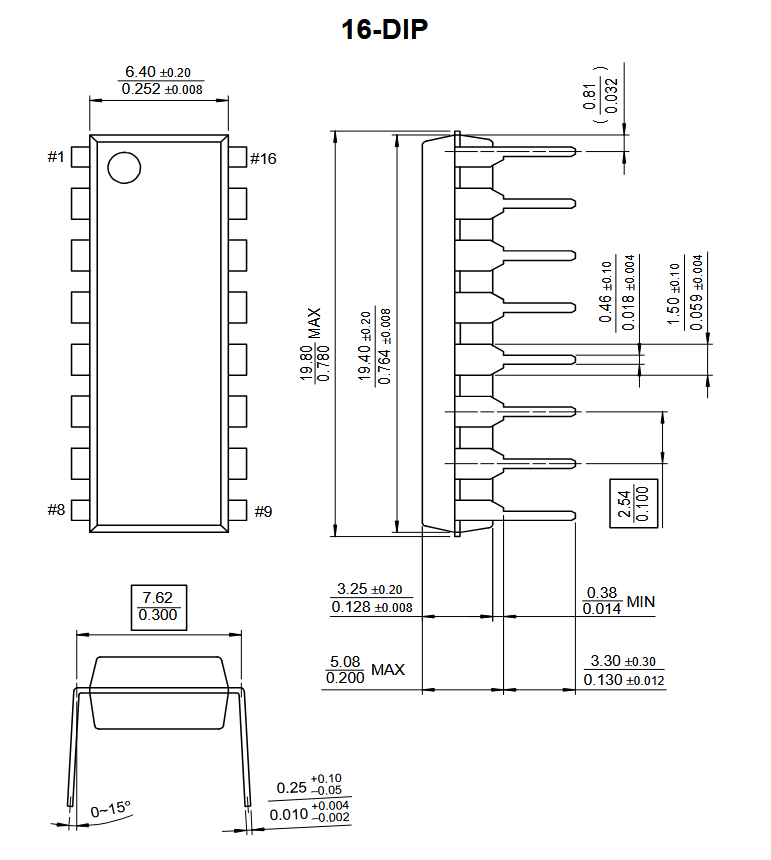

| Package | 16-DIP |
| Supply Voltage (Vcc) | 40V (Max) |
| Collector Supply Voltage (Vc) | 40V (Max) |
| Output Current (Sink or Source) | 500mA (Max) |
| Reference Output Current | 50mA (Max) |
| Oscillator Charging Current | 5mA (Max) |
| Operating Temperature | 0°C to +70°C |
| Maximum Frequency | 400 kHz (Typ) |
| Minimum Frequency | 60 Hz (Typ) |
| Power Dissipation | 1000mW |
Applications
- Switch-Mode Power Supplies (SMPS)
- DC-DC Converters
- AC-DC Converters
- Inverters
- Motor Control
- LED Lighting
- Battery Chargers
- General Power Management
