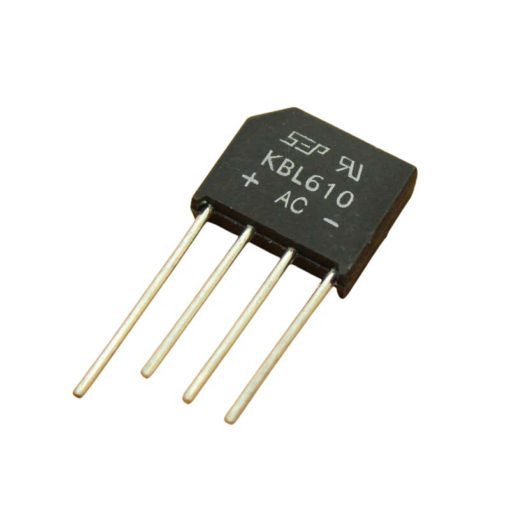

KBL610 Bridge Rectifier Single-Phase 6A 1000V KBL-6

Features:

• Single-phase bridge rectifier with four diodes in a bridge configuration.
• High surge current capability for handling inrush currents.
• Low forward voltage drop, ensuring efficient power conversion.
• Peak Reverse Voltage.
• Ideal for printed circuit board.
• Reliable low cost construction utilizing molded plastic technique.
• The G suffix is uses for photoresist chip, otherwise it is a knife scraping chip.
• High temperature soldering: 260°C / 10 seconds at terminals.
• Compact design in KBP package suitable for PCB assembly.
• High reliability and durability under various operating conditions.
• Polarity symbol marking on body.

Pin Assignments:

Specifications:

Applications:

General-purpose AC-to-DC rectification for:

• Power supplies.
• Battery chargers.
• Motor controls.
• Home appliances.

Datasheet:

KBL610
