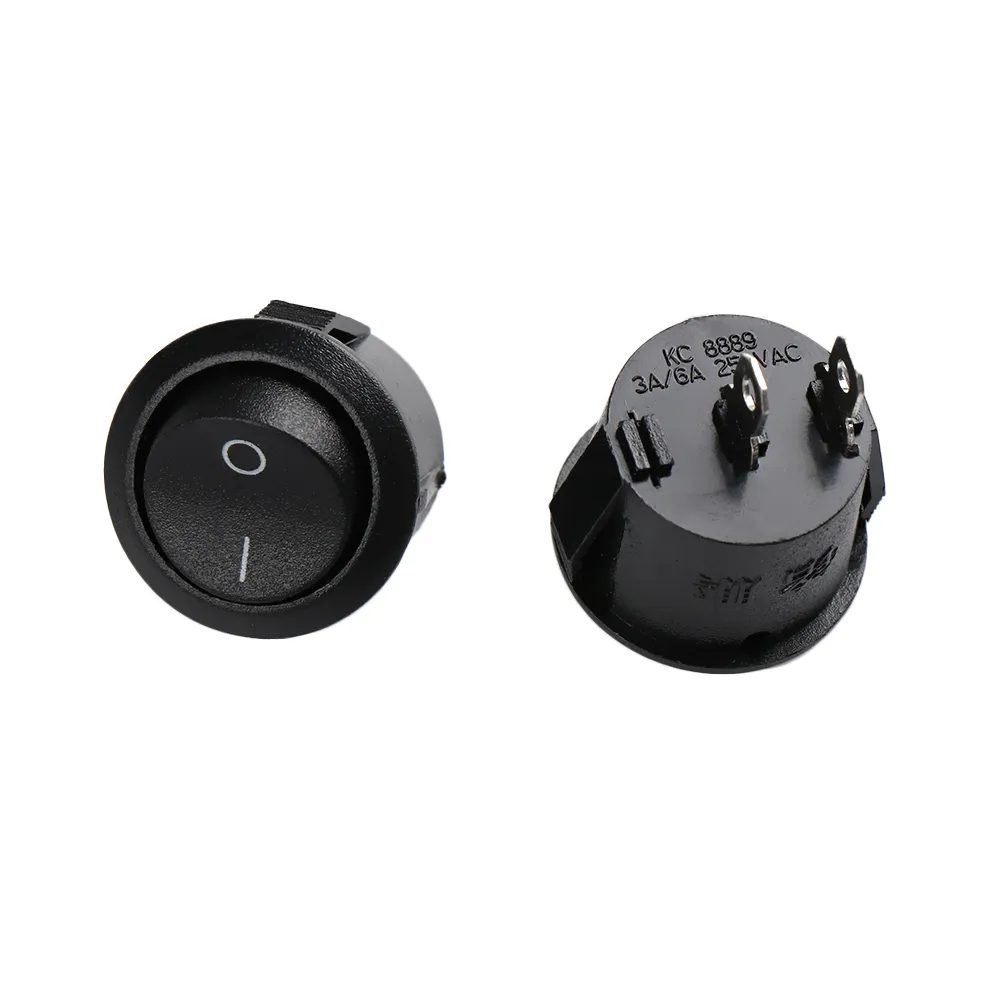

KCD1-105 On/Off Round Rocker Switch 2Pins 6A/250VAC 10A/125VAC D:20mm
The KCD1 On/Off Round Rocker Switch 2Pins 6A/250VAC 10A/125VAC D:20mm is a compact and efficient solution for controlling power in a variety of electronic devices. Featuring a 2-pin SPST configuration, this switch ensures reliable operation with a rated capacity of 6A at 250VAC and 10A at 125VAC. Its snap-in mounting design allows for easy installation without the need for additional hardware. The switch’s durable construction and clear ON/OFF markings make it suitable for a wide range of applications.
Features
- Single Pole Single Throw (SPST) configuration for straightforward circuit control.
- Rated for 6A at 250VAC and 10A at 125VAC, accommodating various power requirements.
- Snap-in mounting mechanism for straightforward installation.
- Clear ON/OFF markings for easy operation.
- Durable construction with plastic and metal materials.
Specifications
| Parameter | Value |
|---|---|
| Switch Type | Rocker |
| Operation Mode | ON-OFF |
| Contact Configuration | SPST |
| Rated Voltage | 250VAC |
| Rated Current | 6A |
| Alternate Rating | 10A at 125VAC |
| Mounting Type | Snap-in |
| Panel Cut-Out | 20mm diameter |
| Terminal Type | 2-pin |
| Material | Plastic and Metal |
| Color | Black |
Dimensions
Applications
- Power control in household appliances.
- Main switches in electronic devices.
- Automotive and marine electrical systems.
- DIY electronics and prototyping projects.
- Control panels requiring clear ON/OFF functionality.
Package Contents
- 1x KCD1-105 On/Off Round Rocker Switch 2Pins 6A/250VAC 10A/125VAC D:20mm.
