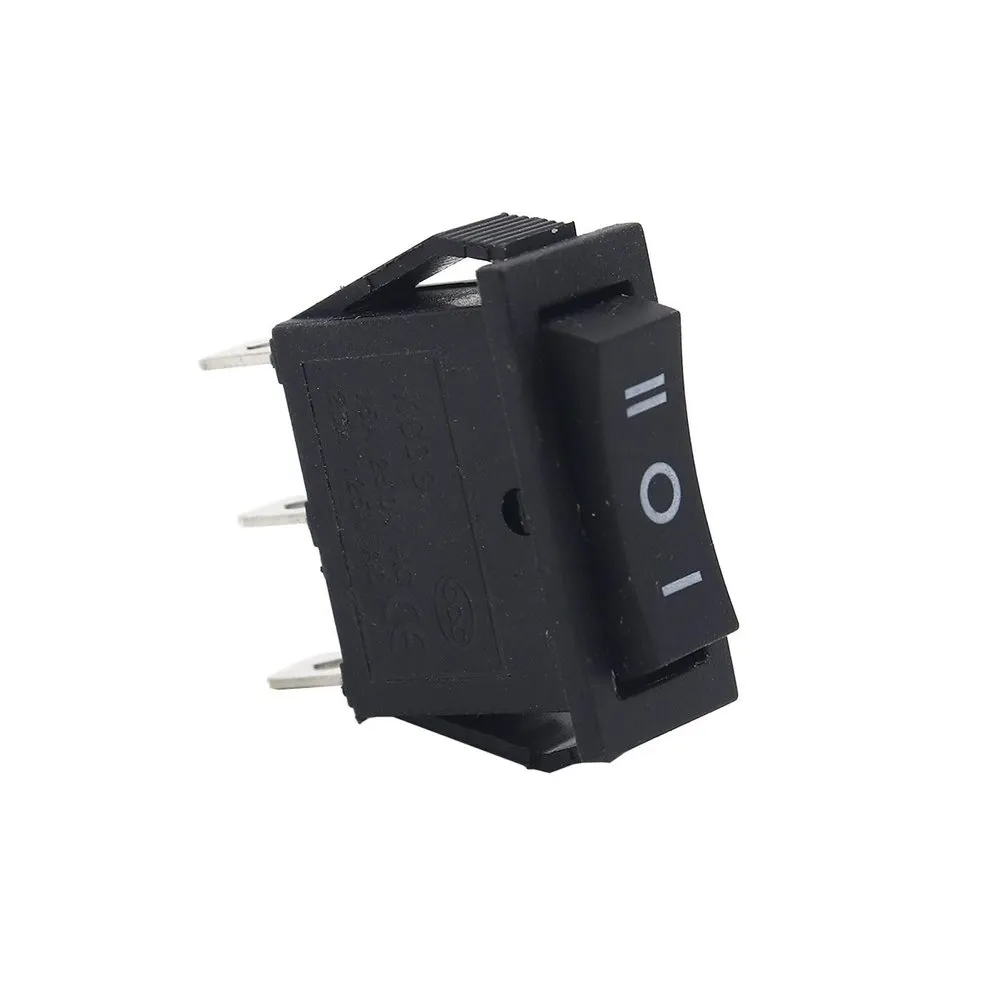

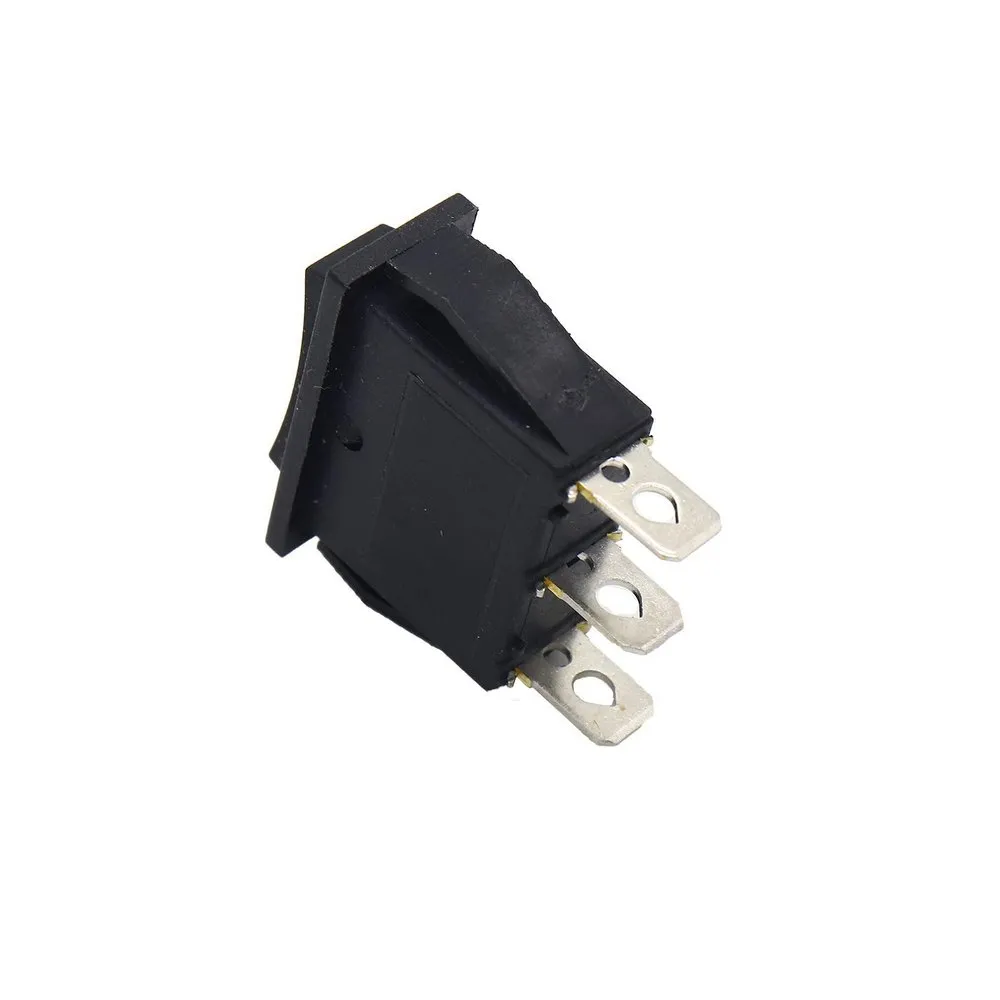

KCD3 On-Off-On Rocker Switch 3 Pins 16A/250VAC 20A/125VAC 25x10mm
The KCD3 On‑Off‑On Rocker Switch 3 Pins 16A/250VAC 20A/125VAC 25x10mm is a durable SPDT snap‑in panel switch providing latching three‑position (ON‑OFF‑ON) control for high current circuits. It supports switching up to 16 A at 250 VAC or 20 A at 125 VAC, ensuring reliable performance under heavy load. Its compact 25 × 10 mm mounting footprint allows integration into tight panel spaces. Constructed with rugged nylon 66 housing and plated brass terminals, it offers longevity and secure electrical connections. Its design facilitates quick and tool‑free assembly.
Features
- SPDT three‑position latching configuration: ON‑OFF‑ON control.
- High current rating: 16 A/250 VAC or 20 A/125 VAC.
- Snap‑in panel mount design for easy installation.
- Compact 25 × 10 mm cut‑out compatible form factor.
- Robust nylon 66 housing with plated brass terminals.
- Long mechanical life exceeding 100,000 cycles and electrical life ≥ 10,000 cycles.
Applications
- Control panels for household appliances (e.g. cookers, coffee machines).
- Switching circuits in automotive or marine equipment.
- Audio/video equipment requiring multi‑state input control.
- Industrial machine interfaces and DIY electronic projects.
- Panel‑mounted high‑load toggling in commercial electronics.
Package Contents
- 1x KCD3 On‑Off‑On Rocker Switch 3 Pins 16A/250VAC 20A/125VAC 25x10mm.
