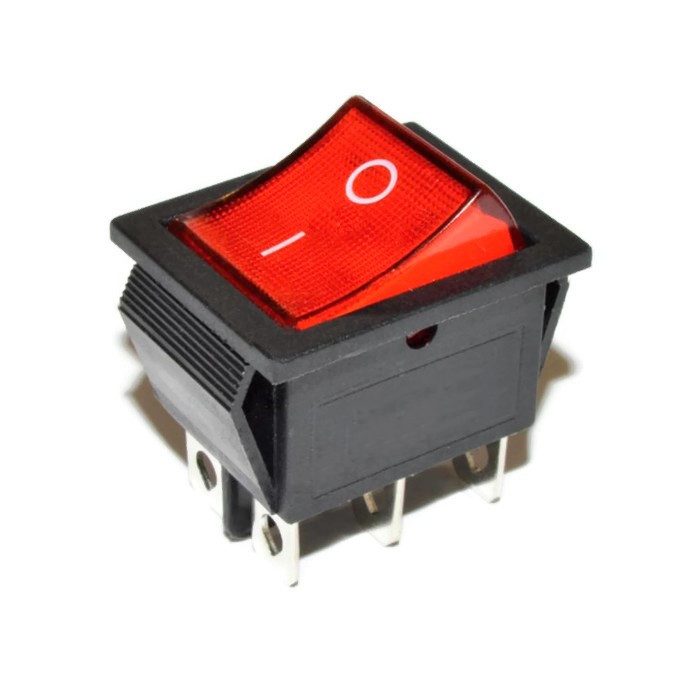

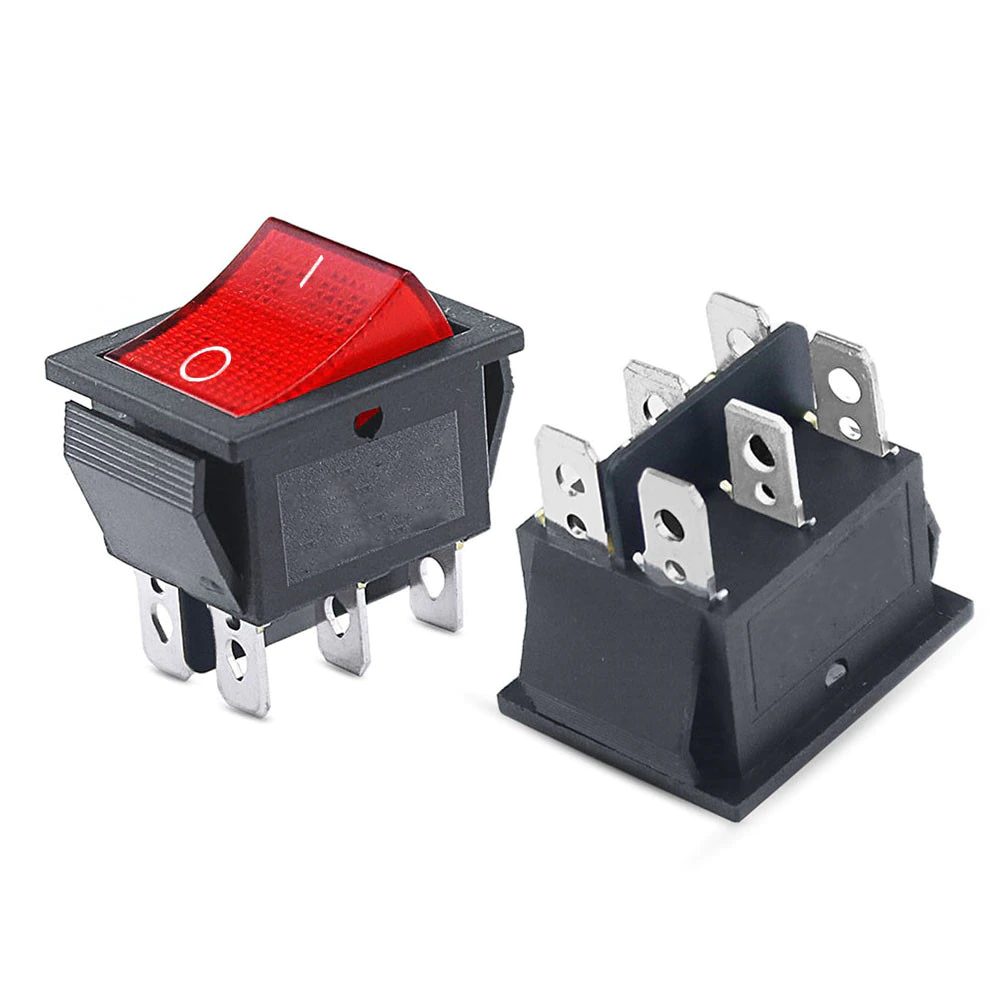

KCD4 ON/OFF Rocker Switch 6Pins 15A/30A 250VAC 26x21mm with LED
The KCD4 ON/OFF Rocker Switch 6Pins 15A/30A 250VAC 26mm x 21mm with LED is engineered for high-current applications, offering reliable performance in both industrial and household settings. With a 6-pin DPDT configuration, it supports dual-circuit control, making it versatile for various electrical systems. The integrated LED indicator provides clear visual feedback of the switch status, enhancing user convenience. Its snap-in mounting design allows for easy installation without the need for additional hardware. The switch’s durable construction ensures longevity and consistent operation under demanding conditions.
Features
- Double Pole Double Throw (DPDT) configuration for versatile circuit control.
- Rated for 15A/30A at 250VAC, accommodating high-power requirements.
- Integrated LED indicator for immediate visual status feedback.
- Snap-in mounting mechanism for straightforward installation.
- Clear ON/OFF markings for easy operation.
- Durable construction with plastic and metal materials.
Specifications
| Parameter | Value |
|---|---|
| Switch Type | Rocker |
| Operation Mode | ON-OFF |
| Contact Configuration | DPDT |
| Rated Voltage | 250VAC |
| Rated Current | 15A/30A |
| Mounting Type | Snap-in |
| Panel Cut-Out | 26mm x 21mm |
| Terminal Type | 6-pin |
| Indicator | LED |
| Material | Plastic and Metal |
| Color | Black with Red LED |
| Dimensions | 31mm x 25mm x 35mm |
Applications
- Power control in industrial machinery.
- Main switches in household appliances.
- Automotive and marine electrical systems.
- DIY electronics and prototyping projects.
- Control panels requiring clear ON/OFF functionality.
Package Contents
- 1x KCD4 ON/OFF Rocker Switch 6Pins 15A/30A 250VAC 26mm x 21mm with LED.
