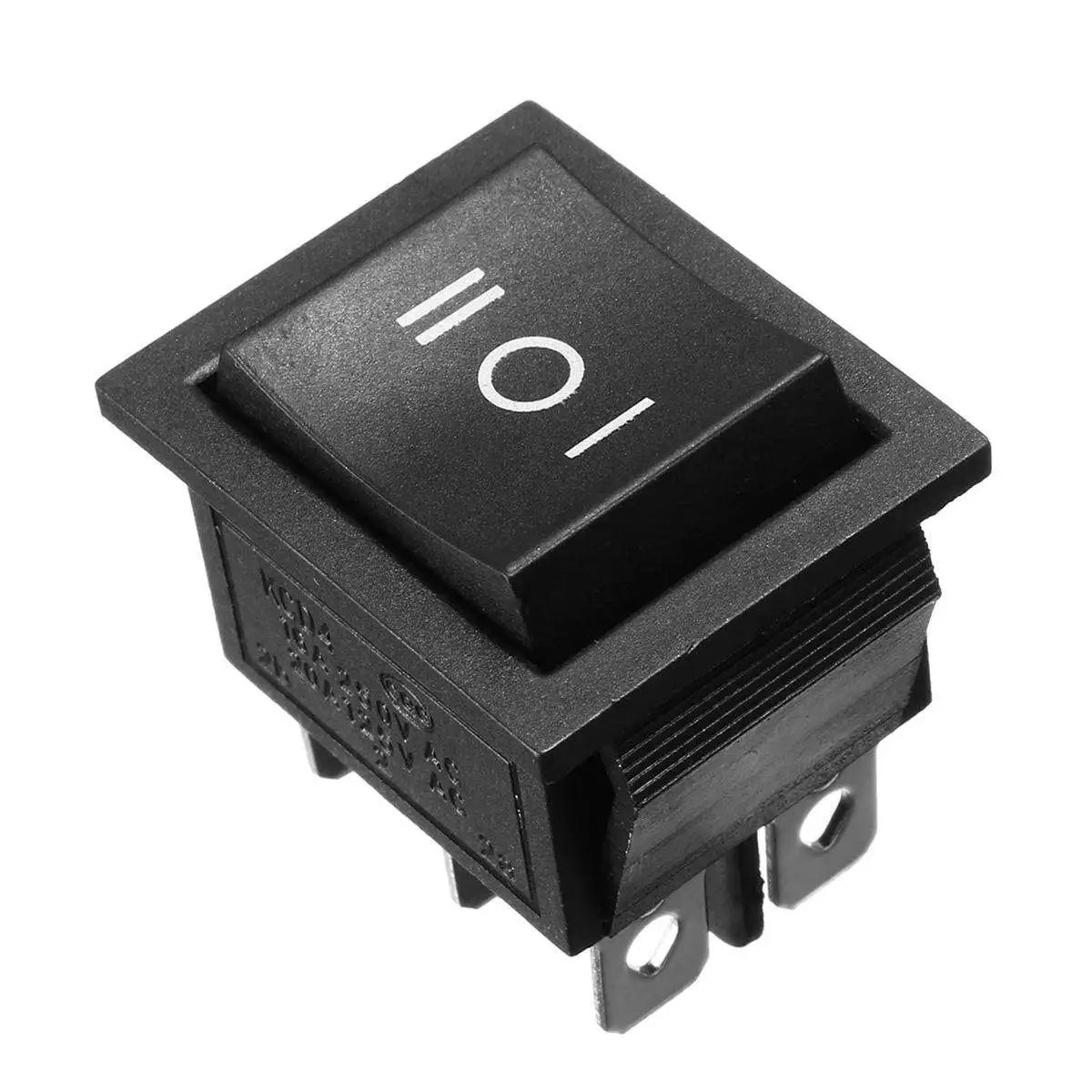

KCD4 Rocker Switch (ON)-OFF-(ON) 2-Sides Momentary 250VAC 16A 6Pins
The KCD4 Dual-Momentary rocker switch features a stable center OFF position and two spring-return ON positions on either side, enabling momentary control in both directions. Its 6-pin DPDT configuration supports polarity reversal or dual-circuit control, and the robust design handles up to 16 A at 250 VAC. Compact and reliable, it’s suitable for panel or snap-in mounting and ensures consistent performance in demanding setups.
Features
- Dual-sided momentary ON positions with spring-return; center OFF latching.
- DPDT (double-pole double-throw) operation for polarity switching or dual load control.
- Rated for 16 A at 250 VAC (also supports 20 A at 125 VAC).
- Low contact resistance (≤ 50 mΩ) and high insulation resistance (≥ 100 MΩ).
- Dielectric strength up to 1,500 VAC and operational up to 10,000 cycles.
- Compact form factor (~26 × 22 mm mounting) with easy snap-in panel installation.
Specifications
| Parameter | Value |
|---|---|
| Model | KCD4 (ON)–OFF–(ON) Momentary |
| Circuit Type | DPDT, 6-pin |
| Rated Voltage | 250 VAC |
| Rated Current | 16 A (20 A @125 VAC) |
| Contact Resistance | ≤ 50 mΩ |
| Insulation Resistance | ≥ 100 MΩ @ 500 VDC |
| Dielectric Strength | 1,500 VAC (50 Hz, 1 min) |
| Electrical Life | ≥ 10 000 cycles |
| Mounting Size | 25 × 22 mm panel cut-out |
| Operating Temperature | –25 °C to +85 °C |
Applications
- Polarity-reversal switching in DC motor controllers.
- Control of dual-output circuits in industrial panels.
- Momentary forward/reverse control in hoists, pumps, and winches.
- Dual-functionality input for audio switching or signal routing.
- Replacement for worn or damaged KCD4 momentary rocker switches.
Package Contents
- 1x KCD4 Dual-Momentary (ON)–OFF–(ON) DPDT 6-pin 16 A/250 VAC Rocker Switch.
