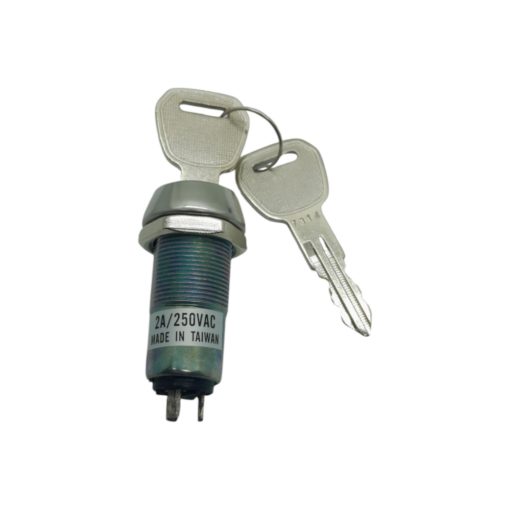

Features:
- Zinc alloy die cast housing and cylinder.
- Stainless steel capped bezel with dust shutter mechanism.
- Reversible double-bitted brass keys, nickel plated.
- Key may be withdrawn in one or both positions.
- Silver plated contacts and terminals.
- Trivalent zinc plated standard.
- 5 disc tumbler mechanism.
- Hex nut mounted.
Specifications:
| Model | S246-3C |
| Type of switch | key switch |
| Contacts configuration | SPDT |
| Number of positions | 2 |
| Mounting hole diameter | Ø90mm |
| Key shape | flat |
| Kind of wrench | symmetrical |
| Body material | zinc alloy |
| AC contacts rating @R(at resistive load) at resistive load | 2A / 250V AC |
| Mechanical rotation angle | 90° |
| Number of terminals | 3 (NO-NC-COM) |
| Overall length | 50mm |
| Stable positions number | 2 |
Drawing:
