KF128-5-2P Green Terminal Block 300V/10A 2 Pins 5mm Pitch

KF128-5-2P Green Terminal Block 300V/10A 2 Pins 5mm Pitch

The KF128-5-2P is a compact two-pole screw terminal block in the KF128 family, featuring a 5.00 mm pitch and green insulating housing. It’s designed for reliable wire-to-board connections where moderate current and voltage are required — for example power inputs, sensor lines, and control wiring on PCBs and small enclosures. The screw clamp provides mechanical strain relief and a secure electrical contact while still allowing the wire to be removed or replaced easily.

This terminal block is suitable for through-hole PCB mounting and is commonly used in industrial controllers, power supplies, household appliances, and communication equipment. For detailed mechanical drawings, recommended wire cross-section (AWG/mm²).

Features:

• 2-pole screw clamp design.
• 5.00 mm (0.197″) pitch (standard spacing).
• Removable / serviceable wire connection.
• Green insulating body (industry standard color).
• Through-hole PCB mounting for reliable mechanical retention.
• Good choice for moderate power and signal lines.

Specifications:

Applications:

• Low-voltage power connections on PCBs.
• Power supplies and chargers (input/output).
• Industrial control and automation panels.
• Motor controllers and driver boards (moderate current).
• Sensor and actuator wiring.

Packages:

• 1x KF128-5-2P Green Terminal Block 300V/10A 2 Pins 5mm Pitch.

Documents:

• Terminal Block Datasheet.

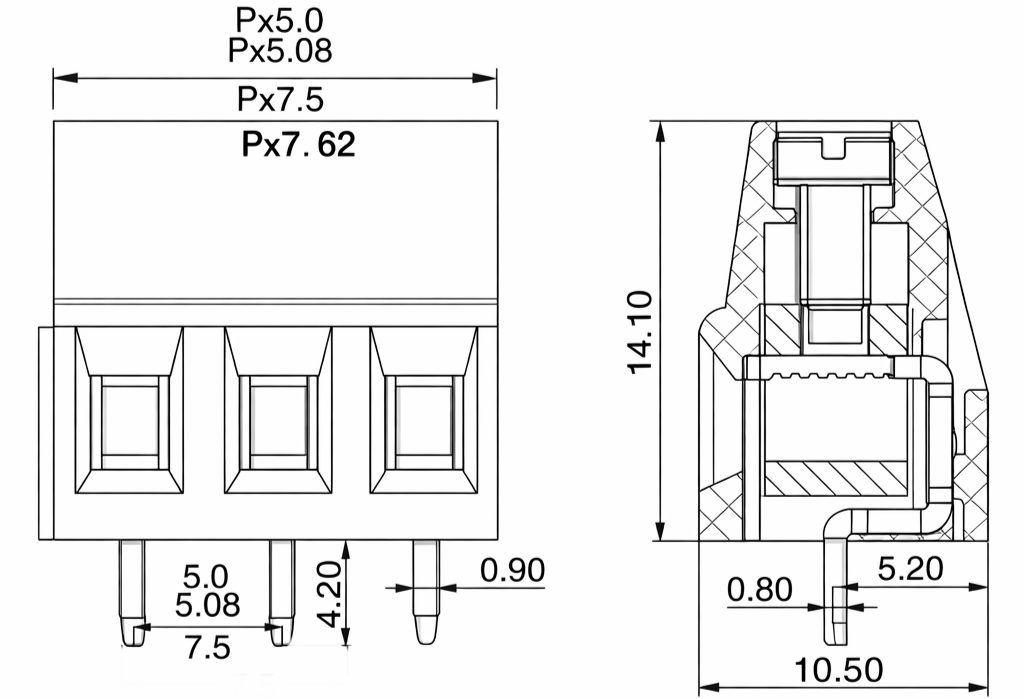

• Terminal Block File Dimension.
