General Description
The MagnetoResistive (MR) sensor with integrated amplifier is designed for angular control applications and BrushLess DC (BLDC) motors with even-numbered pole pairs. It consists of two microchips within one package, an angle sensor and an amplifier Integrated Circuit (IC). The circuit delivers cosine and sine output signals related to the angle of a rotating magnetic field. The output voltage range is ratiometric related to the supply voltage. The Temperature Coefficient (TC) of the sensor amplitude can be compensated. A ratiometric output voltage linear to the temperature is delivered. A Power-down mode is implemented.
Features and benefits
- High precision sensor for magnetic angle measurement
- Single-ended cosine and sine outputs
- Ratiometric output voltages
- Tamb = -40ºC to +150 ºC
- Temperature compensated output signal amplitude
- Temperature related ratiometric reference voltage
- Power-down mode to enable or disable the device
- Single package angle sensor with integrated instrumentation amplifier
- RoHS compliant and free of halogen and antimony (Dark Green compliant)

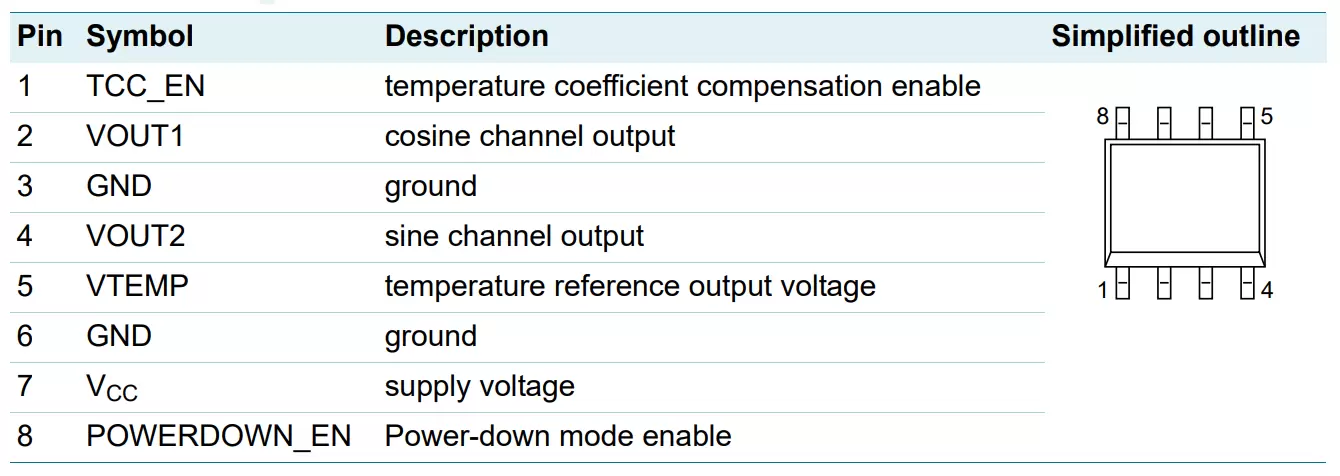

Specifications
| Product Attribute | Attribute Value |
| Product Category: | Board Mount Hall Effect/Magnetic Sensors |
| Type: | Magnetometer |
| Operating Supply Current: | 6 mA |
| Operating Supply Voltage: | 5 V |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 150 C |
| Mounting Style: | SMD/SMT |
| Package/Case: | SOIC-8 |
| Output Voltage: | 70 mV to 930 mV |
| Product Type: | Hall Effect / Magnetic Sensors |
| Supply Voltage – Max: | 5.5 V |
| Supply Voltage – Min: | 2.7 V |
Applications
The KMZ60 angle sensor is dedicated for rotor position detection for BLDC motors. Beyond that the KMZ60 is applicable for Electronic Power Steering (EPS) applications, steering angle measurement, window wiper position detection and general contactless angular measurement (e.g. throttle valves or actuators). The KMZ60 is fully automotive qualified as well as applicable for industrial and consumer applications.
Typical applications:
- BLDC motor (e.g. EPS)
- Window wiper position detection
- Steering angle measurement
- General contactless angular measurement (e.g. throttle valves or actuators)
- Automotive, industrial and consumer applications
