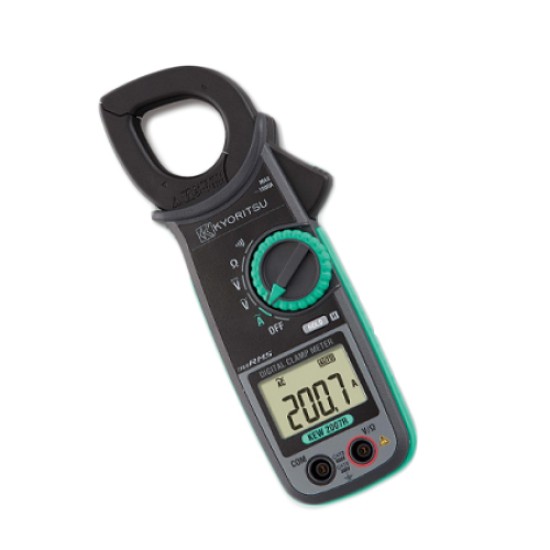

- Fully Safety jaw.
- Ergonomic over-molded body gives convenient one-hand operation.
- Large easy-to-read display with 0.01A resolution.
- Accurate reading with True RMS 60/600/1000A auto-ranging.
- Safety Standard IEC 61010-1 CAT IV 300V / CAT III 600V Inc.
AC A | 60.00/600.0/1000A (Auto-ranging) .5%rdgdgt [45 – 65Hz] .0%rdgdgt [40 – 1kHz] |
---|---|
AC V | 60.00/600.0V (Auto-ranging) .0%rdgdgt [45 – 65Hz] (600V) .5%rdgdgt [40 – 1kHz] (60/600V) |
DC V | 60.00/600.0V (Auto-ranging) .0%rdgdgt (60V) .2%rdgdgt (600V) |
/th> | 600.06.000/60.00/600.0k(Auto-ranging) .0%rdgdgt (600 .0%rdgdgt (6/60/600k |
Continuity buzzer | 600Buzzer sounds below 90 |
Conductor size | 33mm max. |
Applicable standards | IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2(EMC), IEC 60529 IP 40, EN50581(RoHS) |
Power source | R03/LR03 (AAA) (1.5V) 2 |
Continuous measuring time | Approx.170 hours (When R3 is used)(NCV_LED:off) (Auto power save : approx. 10 minutes) |
Dimensions | 204(L) 81(W) 36(D)mm |
Weight | 220g Approx. (including batteries) |
Included Accessories | 7066A (Test leads) 9079 (Carrying case), R03 (AAA) 2, Instruction Manual |
