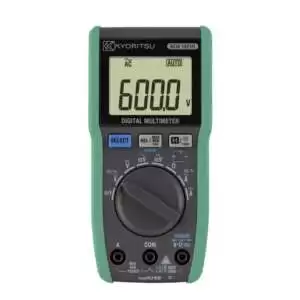

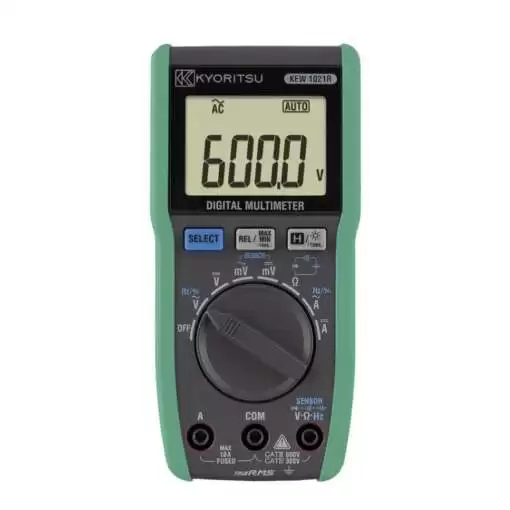

Features
- Elegant and easy-to-use cabinet
- Large display with 6000 counts and Backlight
- Enhanced current measuring function using an external clamp sensor
- Two detachable holders, flat and wing type
- Accurate reading with True RMS
- Safety Standard IEC 61010-1 CAT IV 300V / CAT III 600V
Specifications
| DC V | 6.000/60.00/600.0V (auto range) ±0.5%rdg ±3dgt |
|---|---|
| DC mV | 600.0mV ±1.5%rdg ±3dgt |
| DC Clamp Sensor | 60.00/200.0A (auto range) ±1.5%rdg ±3dgt + Sensor accuracy |
| AC V | 6.000/60.00/600.0V (auto range) ±1.0%rdg ±3dgt [40 – 500Hz] |
| AC mV | 600.0mV ±2.0%rdg ±3dgt [40 – 500Hz] |
| AC Clamp Sensor | 60.00/200.0A (auto range) ±2.0%rdg ±3dgt + Sensor accuracy [40 – 500Hz] |
| DC A | 6.000/10.00A (auto range) ±1.5%rdg ±3dgt |
| AC A | 6.000/10.00A (auto range) ±1.5%rdg ±3dgt[45 – 500Hz] |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ (auto range) ±0.5%rdg ±4dgt (600Ω), ±0.5%rdg ±2dgt (6/60/600kΩ/6MΩ) ±1.5%rdg ±3dgt (40MΩ) |
| Continuity buzzer | 600Ω (Buzzer sounds below 90Ω) |
| Diode test | Open-loop voltage: < 3.0V |
| Capacitance | 60.00/600.0nF/6.000/60.00/600.0/1000µF ±2.0%rdg ±5dgt (60/600nF) ±5.0%rdg ±5dgt (6/60/600/1000µF) |
| Frequency | ACV 99.99/999.9Hz/9.999/99.99kHz ±0.1%rdg ±3dgt ACA 99.99/999.9Hz/9.999kHz ±0.1%rdg ±3dgt |
| DUTY | 10.0 – 90.0% ±1.0%rdg ±3dgt [50/60Hz] |
| Applicable standards | IEC 61010-1 CAT IV 300V / CAT III 600V / CAT II 1000V IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 (EMC), EN 50581 (RoHS) |
| Power source | R03 (1.5V) × 2 |
| Dimensions | 155(L) × 75(W) × 40(D)mm |
| Weight | 250g Approx. (including batteries) |

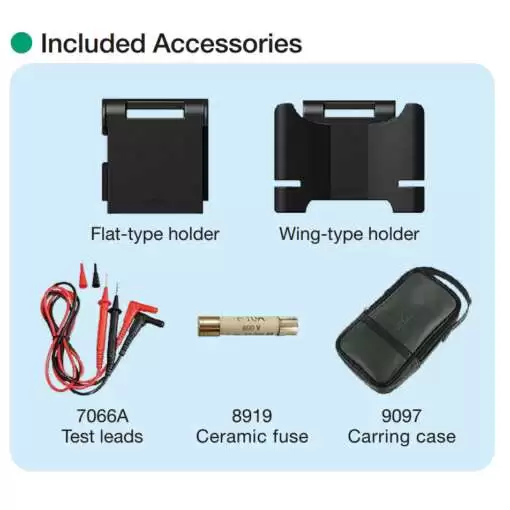

| Included Accessories | Wing-type holder, Flat-type holder, 7066A (Test leads), 8919 (Ceramic fuse [10A/600V]) × 1 (included), 9097 (Carrying case), R03 × 2, Instruction manual |
