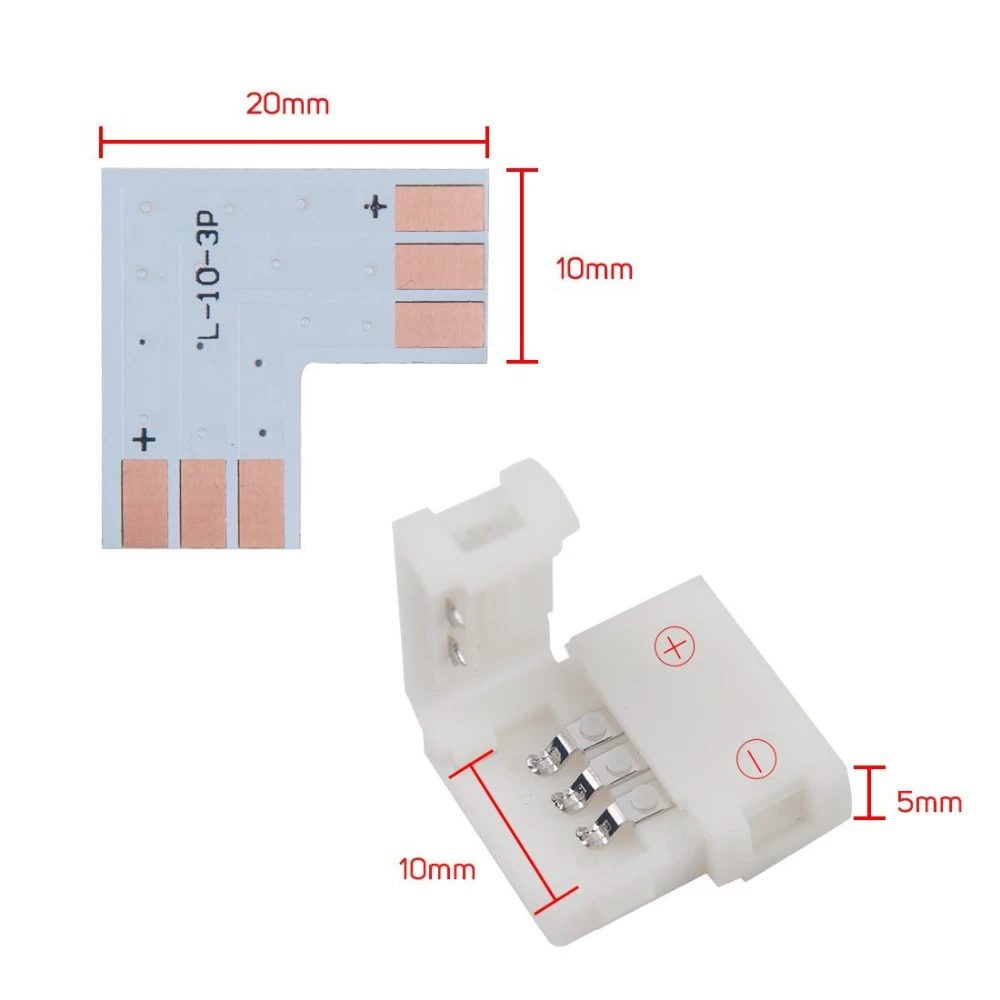

L Shape Connector 3Pin for LED Strip No Soldering

You need to simply slot strip light into connector and close (no need for soldering). (Can not support 144LED/m led strip)

L Shape 3 Pins Connector 10mm is very safe to use. (Can not support 144LED/m led strip)

It is for an LED strip 10mm wide. The product is High Quality & High-Cost Performance & High Security.

for an LED tape DIY project is Compatible with both waterproof and non-waterproof light strips.

Features:

• For WS2811 WS2812B SK6812 5V 12V LED Strip, 10mm PCB board, and each 3mm distance point
• PCB Type: L Cross
• LED Solderless connector
• Installation tips: Open the cap on the connector and slide in the ribbon. Make sure the poles match correctly, then clasp the cap. For waterproof light strips, you need to peel off the silicone around the soldering line first.

Installation Instructions:

1. Ensure your section of LED light strip has (+) contacts are clean
2. Open the white clasp of the connector
3. Insert the LED light strip into the clasp, under the prongs – making sure to match the + and – on the strip to the + and – on the clasp
4. Close the clasp
5. Gently pull on the LED light strip to confirm you’ve made a solid connection

Friendly reminder:

• can not pull hard
• non-waterproof
