Description

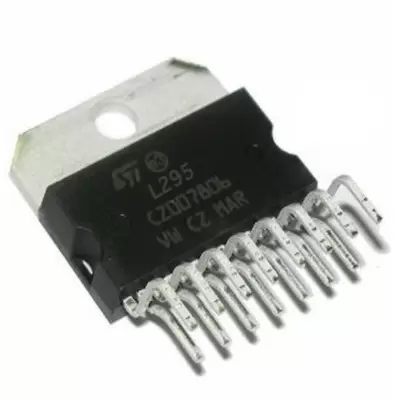

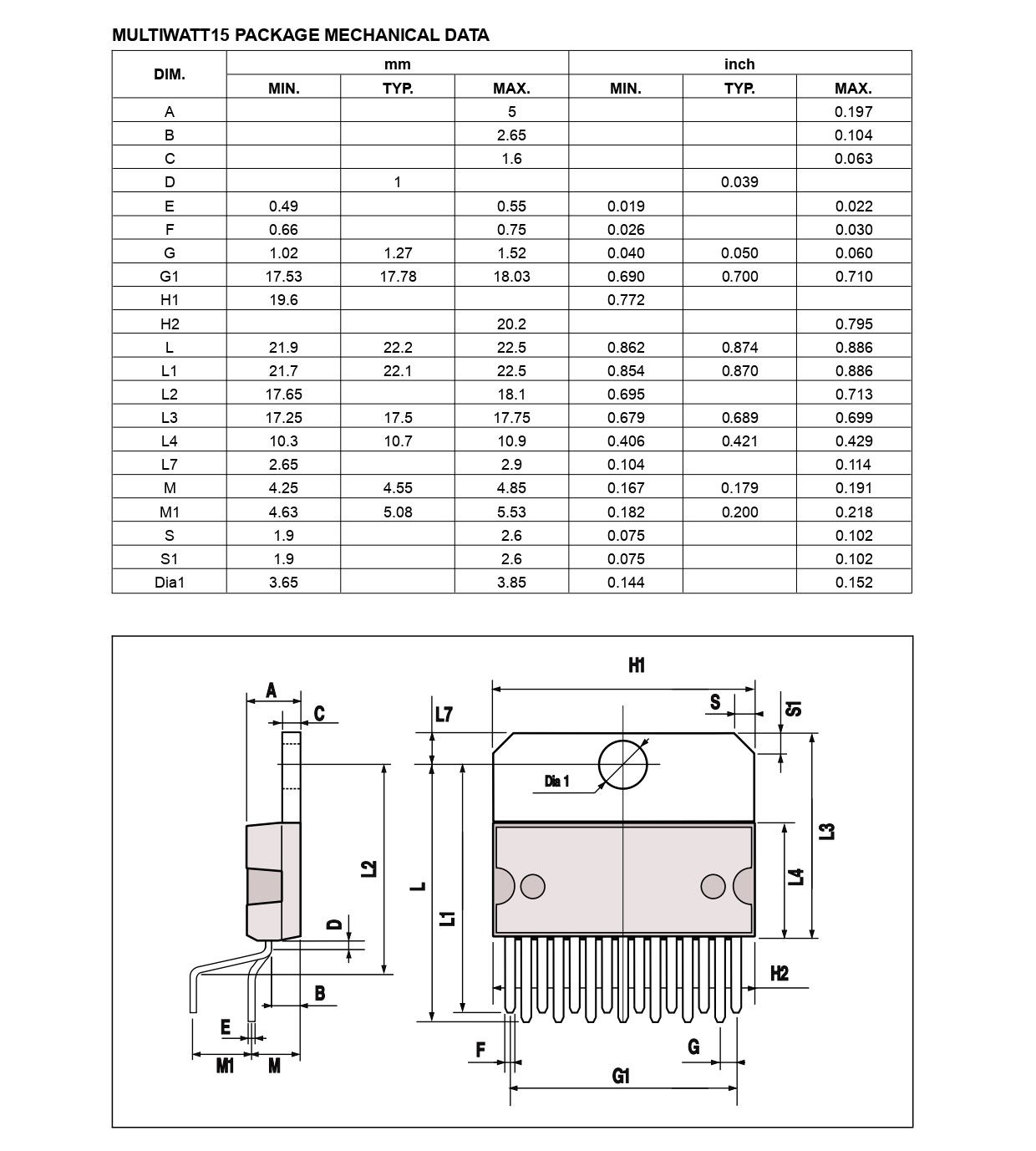

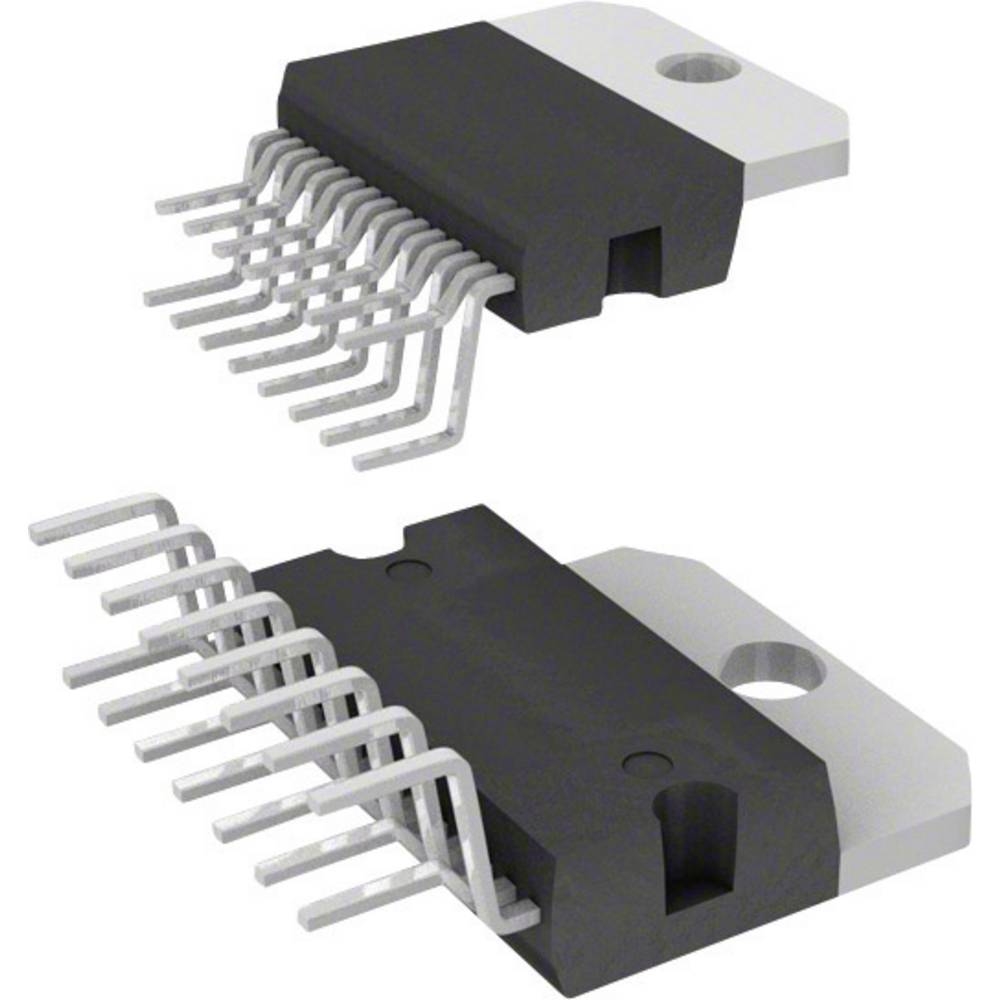

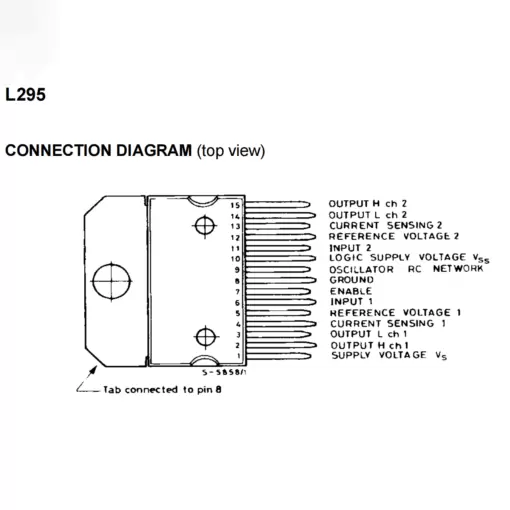

The L295 is a monolithic integrated circuit in a 15 -lead Multiwatt ® package; it incorporates all the functions for direct interfacing between digital circuitry and inductive loads. The L295 is designed to accept standard microprocessor logic levels at the inputs and can drive 2 solenoids. The output current is completely controlled by means of a switching technique allowing very efficient operation.Furthermore, it includes an enable input and dual supplies (for interfacing with peripherals running at a higher voltage than the logic). The L295 is particularly suitable for applications such as hammer driving in matrix printers, step motor driving and electromagnet controllers.
Features:
- HIGH CURRENT CAPABILITY (up to 2.5A per channel)
- HIGH VOLTAGE OPERATION (up to 46V for power stage)
- HIGH EFFICIENCY SWITCHMODE OPERATION
- REGULATED OUTPUT CURRENT (adjustable)
- FEW EXTERNAL COMPONENTS
- SEPARATE LOGIC SUPPLY
- THERMAL PROTECTION
Specifications:
| Symbol | Parameter | Value | Unit |
| Vs | Supply voltage | 50 | V |
| Vss | Logic supply voltage | 12 | V |
| VEN, Vi | Enable and input voltage | 7 | V |
| Vref | Reference voltage | 7 | V |
| Io | Peak output current (each channel) | ||
| – non repetitive (t = 100 msec) | 3 | A | |
| – repetitive (80% on – 20% off; Ton = 10 ms) | 2.5 | A | |
| – DC operation | 2 | A | |
| Ptot | Total power dissipation (at Tcase = 75 °C | 25 | W |
| Tstg, Tj | Storage and junction temperature | – 40 to 150 | °C |
