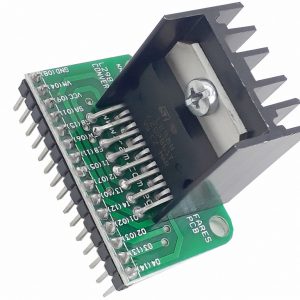

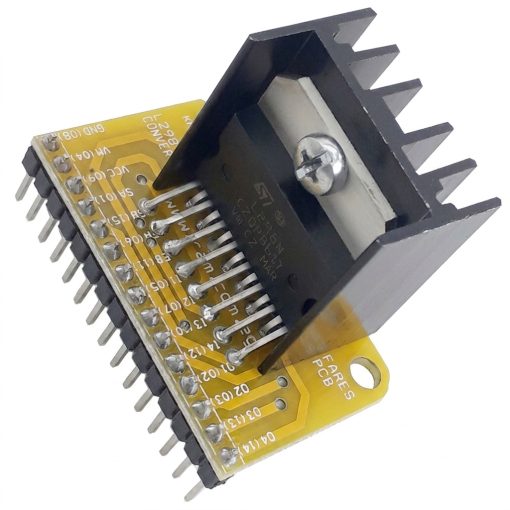

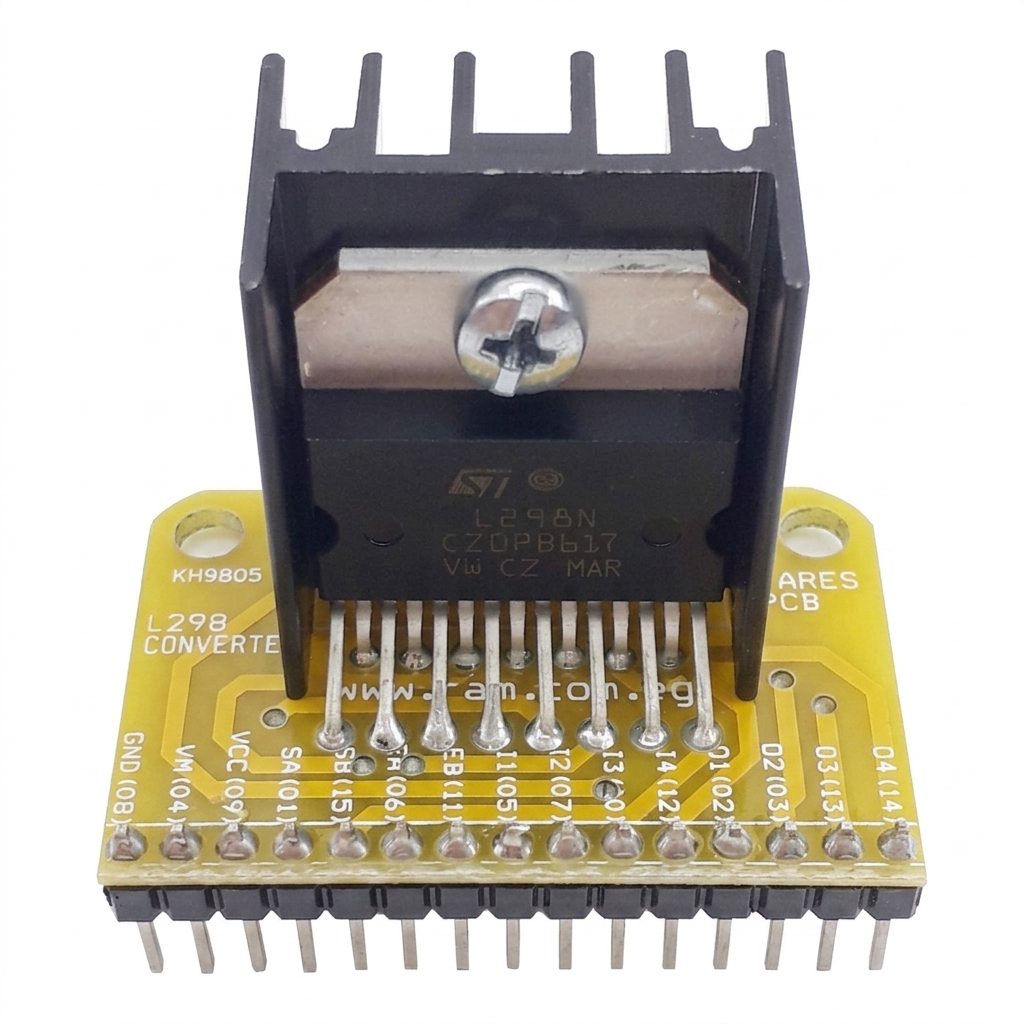

L298 IC Breakout to Pin Header
The L298 IC Breakout to Pin Header board is designed to facilitate the use of the L298N dual full-bridge driver in DIY and development environments. It breaks out every multifunction pin of the L298N—power supplies (VS, VSS, GND), control inputs, outputs, and current-sensing terminals—onto a durable 15-pin male header. This configuration allows users to easily wire or jumper connections for motor control, sensor feedback, and power sequencing without soldering directly to the L298N IC. Suitable for DC Motor Driving or interfacing to L297 to easily build stepper motor driver.
Features
- Full access to all 15 L298N terminals via 2.54 mm pin header.
- Ideal for use with breadboards or custom monitoring systems.
- Perfect for interfacing with Arduino-compatible headers or custom wiring.
- Compact board encourages clean layouts in motor-control projects.
Specifications
| Parameter | Value |
|---|---|
| Master Chip | L298N |
| Logic Voltage | 5V |
| Drive Voltage | 5V–35V |
| Logic Current | 0mA–36mA |
| Drive Current | 2A (MAX per bridge) |
| Storage Temperature | –20 °C to +135 °C |
| Maximum Power | 25W |
Applications
- Prototyping DC and stepper motor driver circuits.
- Easy access to L298N’s current sensing and enable features.
- Educational setups for teaching motor control principles.
- Integrating L298N into custom robotics, mechatronics, or automation systems.
Package Contents
- 1x L298 IC Breakout to Pin Header.
