Description
This device is a monolithic quad intelligent power switch in multipower BCD technology, for driving inductive, capacitive or resistive loads. Diagnostic for CPU feedback and extensive use of electrical protections make this device inherently indistructible and suitable for general purpose industrial applications.
All Features
- Presettable delay for overcurrent
- External asynchronous reset input
- Open ground protection
- Diagnostic
- ESD protection (human body model ± 2 kV)
- Immunity against burst transient (IEC 61000-4-4)
- Under voltage lockout with hysteresys
- Thermal shutdown
- Multipower BCD technology
- 9.5 to 35 V supply voltage range
- 0.5 A four independent outputs
- Non-dissipative over-current protection
- Diagnostic output for under voltage, over temperature and over current
- Internal current limit
Specifications
| Attribute | Value |
| Number of Outputs | 4 |
| Number of Inputs | 4 |
| Mounting Type | Surface Mount |
| Package Type | PowerSO |
| Pin Count | 20 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -25 °C |

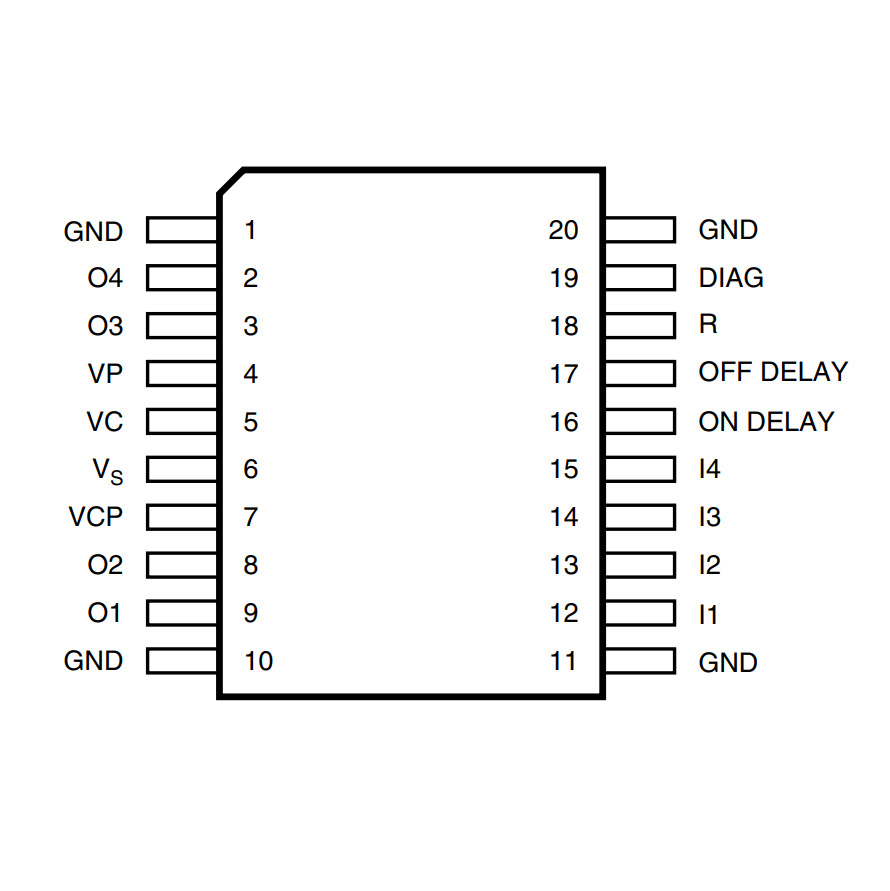

Block Diagram
