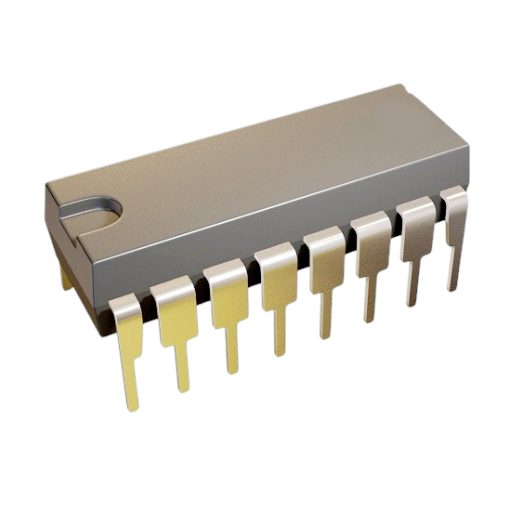

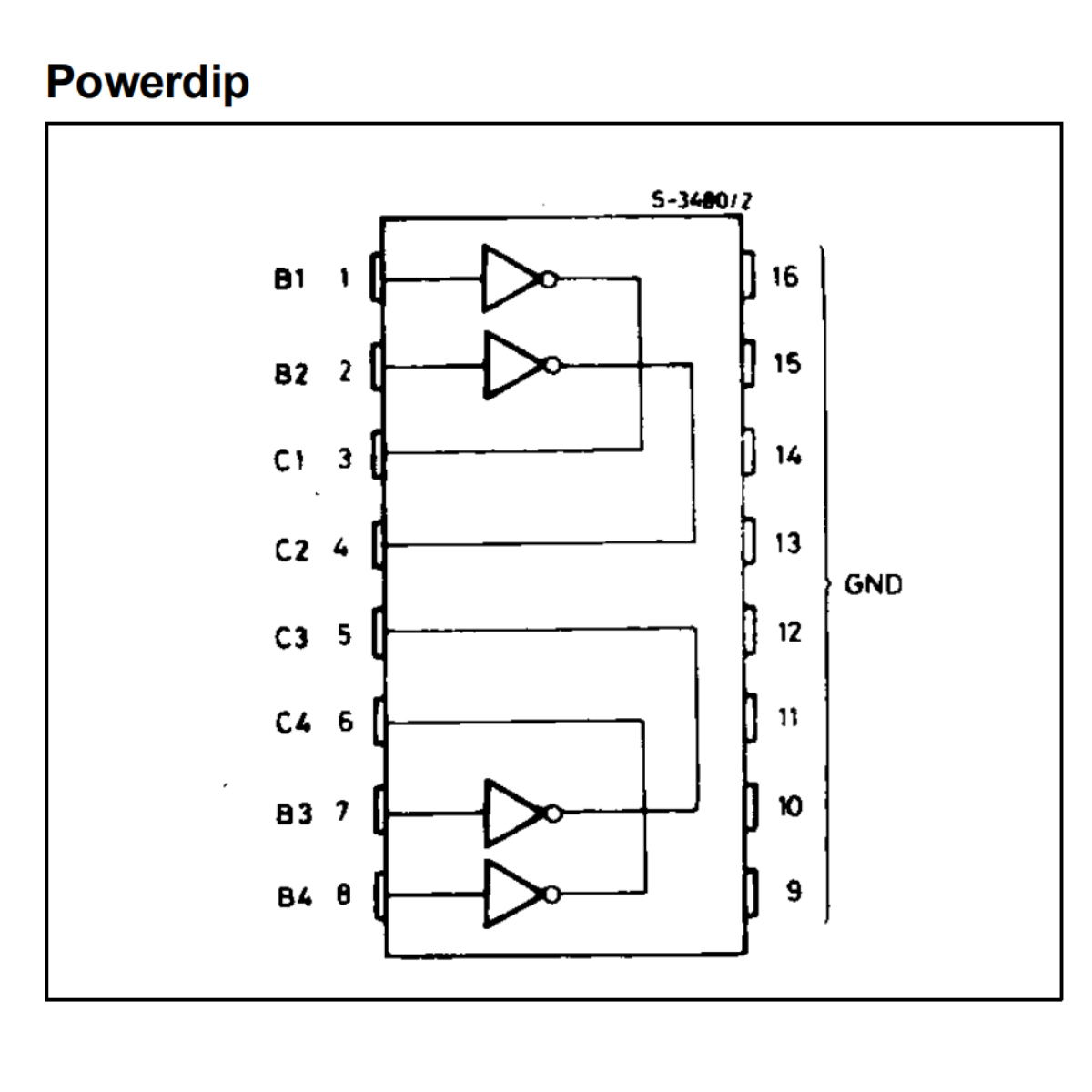

L702B 2A QUAD NPN Darlington Transistor DIP-16
A versatile 2A Quad Darlington Switch. The L702B easily drives high-power loads like motors, solenoids, and relays from low-level logic signals.
95.00 EGP
Buy NowL702B 2A QUAD NPN Darlington Transistor DIP-16
The L702B is a versatile and robust quad NPN Darlington transistor array housed in a DIP-16 package. This monolithic integrated circuit is engineered for high-current and high-voltage switching applications, making it an ideal component for a wide range of electronics projects. By integrating four Darlington pairs into a single package, the L702B simplifies circuit design, reduces component count, and lowers overall costs.
Features
- High Sustaining Voltage
- High Output Current
- High Current Gain
- Wide Operating Temperature Range

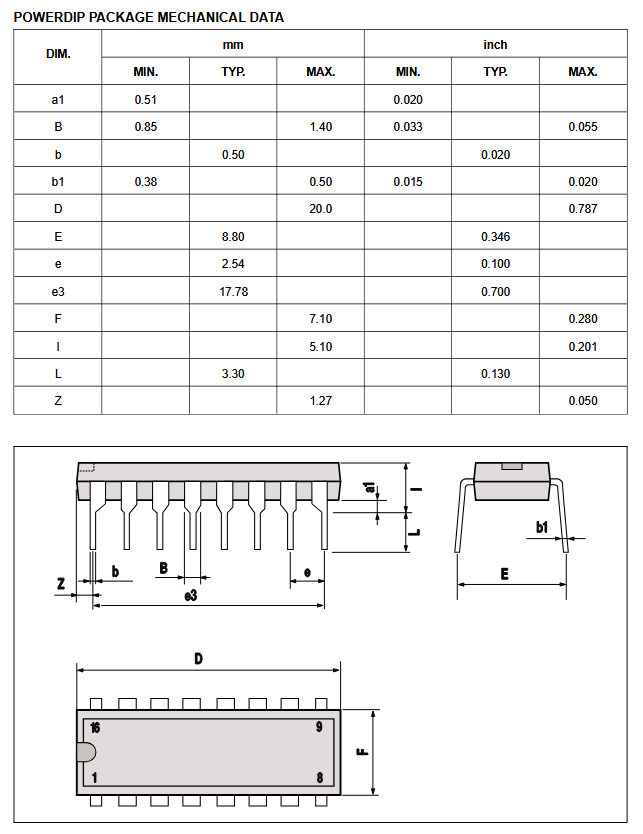

Specifications
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Absolute Maximum Ratings | |||
| Collector-emitter Voltage (input open) | VCEX | 90 | V |
| Input Voltage | Vi | 30 | V |
| Collector Current | Ic | 3 | A |
| Total Power Dissipation (Powerdip, Tpin 9 to 16 ≤ 90 °C) | Ptot | 4 | W |
| Total Power Dissipation (Powerdip, Tamb ≤ 70 °C) | Ptot | 1.1 | W |
| Total Power Dissipation (Multiwatt, Tcase ≤ 90 °C) | Ptot | 20 | W |
| Operating Junction Temperature | Tj | -25 to 150 | °C |
| Storage Temperature | Tstg | -55 to 150 | °C |
| Electrical Characteristics (Tcase = 25°C) | |||
| Collector Emitter Sustaining Voltage (Ic = 100 mA) | VCE(sust) | 70 (Min) | V |
| Collector Emitter Saturation Voltage (Ic = 1.25 A, Ii = 2 mA) | VCE(sat) | 1.9 (Max) | V |
| DC Forward Current Gain (Ic = 1 A, VCE = 3 V) | hFE | 1000 (Min) | – |
| Input Voltage (On Condition, Ic ≥ 1 A) | Vi | 2.4 (Min) | V |
| Input Voltage (Off Condition, Ic ≤ 0.1 mA) | Vi | 0.4 (Max) | V |
| Thermal Data (Powerdip Package) | |||
| Thermal Resistance Junction-Ambient | Rth j-amb | 70 (Max) | °C/W |
| Thermal Resistance Junction-Pins (9 to 16) | Rth j-pins | 14 (Max) | °C/W |
Applications
- Driving Solenoids and Relays
- Motor Control
- Displays
- Power Amplifiers
- Switching Circuits
DataSheet
