L7924CT Negative Voltage Regulator 24V 1.5A TO-3
The L7924CT is a fixed −24 V three-terminal negative linear regulator in a TO-3 power package, designed to provide local on-card regulation for split supplies and high-voltage rails. It integrates thermal overload protection, short-circuit protection and output transition SOA protection to ensure reliable operation under thermal and inductive stress, and will deliver up to 1.5A with adequate heatsinking for demanding applications.
Features
- Fixed 24V output voltage for negative rail generation.
- Output current up to 1.5A with internal limiting.
- Thermal overload protection for safe operation under overtemperature conditions.
- Short-circuit protection and output transition SOA protection to withstand inductive and transient loads.
- Low quiescent current and good supply-rejection characteristics for stable regulation.
- Available in TO-3 package for low thermal resistance and robust mounting.

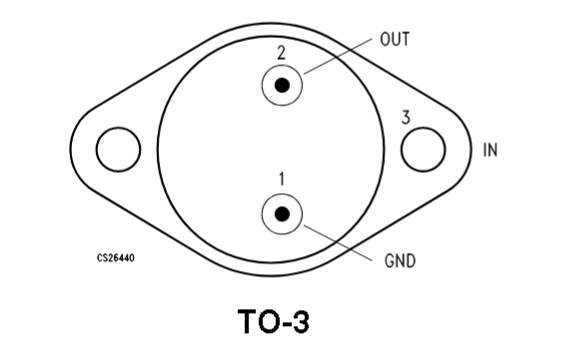

PINOUT
Specifications
| Symbol | Parameter | Value | Unit |
|---|---|---|---|
| VI | DC input voltage | −40 | V |
| IO | Output current | Internally Limited | |
| PD | Power dissipation | Internally Limited | |
| TSTG | Storage temperature range | −65 to 150 | °C |
| TOP | Operating junction temperature range | 0 to 150 | °C |
Note: you can check the full electrical specifications for the L7824C in the datasheet here.
Applications
- Negative rail regulation for split supplies in analog and mixed-signal systems.
- Industrial power supplies and motor control electronics requiring robust negative rails.
- On-card regulation for high-voltage modules and instrumentation.
- Prototyping and replacement in TO-3 negative regulator footprints.
Package Contents
- 1x L7924CT Negative Voltage Regulator 24V 1.5A TO-3.
