LA42DWQ Rotary Potentiometer 10kΩ 22mm 1 Turn
The LA42DWQ is a single-turn rotary potentiometer with a 22 mm panel-mount shaft, offering smooth, precise adjustment from 0 to 10 kΩ. Rated for 2 W power dissipation and up to 250 V DC, it features durable cermet or carbon-film resistive elements (varies by manufacturer), IP65 environmental protection, and strong build quality ensuring long service life and stable operation. Ideal for speed controls, signal adjustment, and inverter interfaces.
Features
- 10 kΩ resistance, single-turn rotary adjustment.
- 22 mm panel-mount installation hole.
- 2 W power rating for moderate power applications.
- IP65 protection against dust and light water ingress.
- Maximum voltage rating up to 250 VDC.
- Durable construction with galvanized copper and plastic materials.
Specifications
| Parameter | Value |
|---|---|
| Model | LA42DWQ-22 |
| Resistance | 10 kΩ |
| Power Rating | 2 W |
| Panel Mount Hole Size | 22 mm |
| Maximum Voltage | 250 V DC |
| Protection Level | IP65 |
| Rotation Turns | Single-turn (300° typical) |
| Operating Temp. Range | –55 °C to +125 °C |
PINOUT

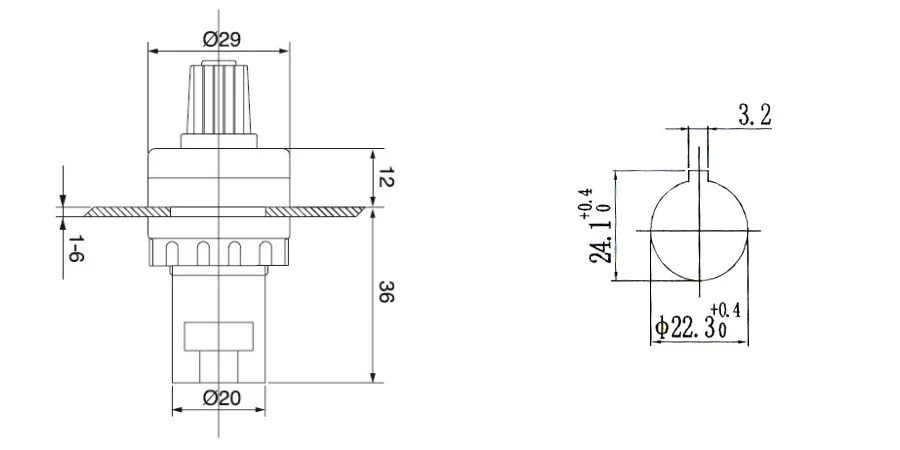

Dimensions
Applications
- Motor speed control and inverter regulation.
- Audio and signal level adjustment.
- Laboratory equipment and instrumentation.
- Embedded systems requiring precise human input control.
Package Contents
- 1 × LA42DWQ Rotary Potentiometer 10kΩ 22mm 1 Turn.
