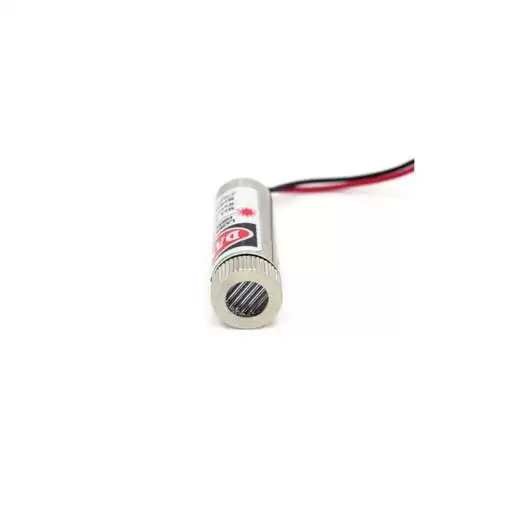

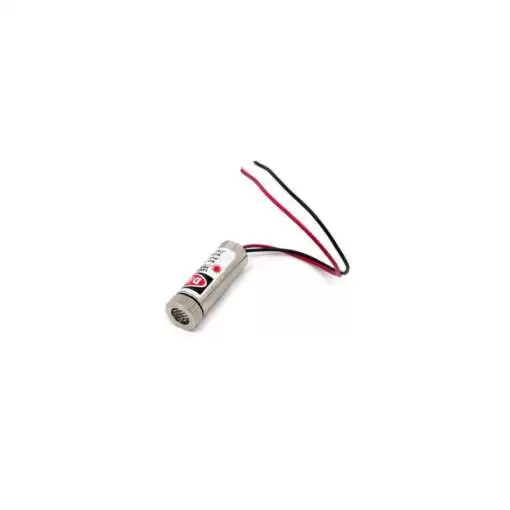

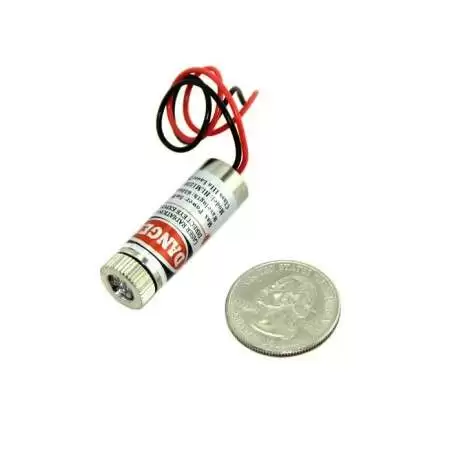

Laser Emitter Red Line 650nm 12VDC 5mW
The Laser Emitter Red Line 650 nm 12 VDC 5 mW is a compact, precision light source designed to produce a crisp red laser line with high visibility. Operating at a wavelength of 650 nanometers, it emits a bold, distinct red beam that stands out clearly against most surfaces under normal lighting. Its linear projection makes it ideal for tasks that require straight-line indication and precise visual alignment.
Powered by a low-voltage DC input, this module integrates easily into a wide range of electrical systems without requiring complex external drivers. The solid-state diode design ensures durable performance with minimal heat output, allowing continuous use for extended periods. The visible red line it generates is not a point or dot but a full, straight beam, enhancing accuracy when aligning components, marking reference lines, or guiding positioning.
Encased in a rugged housing built to withstand standard working environments, the emitter balances simplicity with utility. Its compact footprint and lightweight construction facilitate easy integration into both professional equipment and hobbyist projects alike. Users benefit from a reliable, consistent laser line that supports precision tasks whether on the workbench or in more demanding industrial settings.
Features:
- Produces a linear red laser line for clear visual guidance.
- High visibility output at 650 nm wavelength.
- Low power consumption and efficient operation.
- Durable, compact housing for easy installation.
- Adjustable focus for precision line clarity.
Specifications
| Specification | Value |
|---|---|
| Wavelength: | 650 nm (red) |
| Output Power (Max): | 5 mW |
| Operating Voltage: | 12 VDC |
| Laser Pattern: | Line |
| Operating Mode: | Continuous |
| Current: | tens of mA |
| Housing: | Metal/robust enclosure |
| Laser Class: | Class IIIa |
Attention!
You should not look with the naked eye directly into the source of laser light, it may cause vision damage.
Applications:
- Alignment & Positioning Systems.
- CNC & Precision Machinery Guides.
- Industrial Line Projection.
- Optical Measurement Equipment.
- Robotics & Automation Visual Guides.
- DIY & Electronics Projects.
Package Contents:
- 1x Laser Emitter Red Line 650nm 12VDC 5mW
