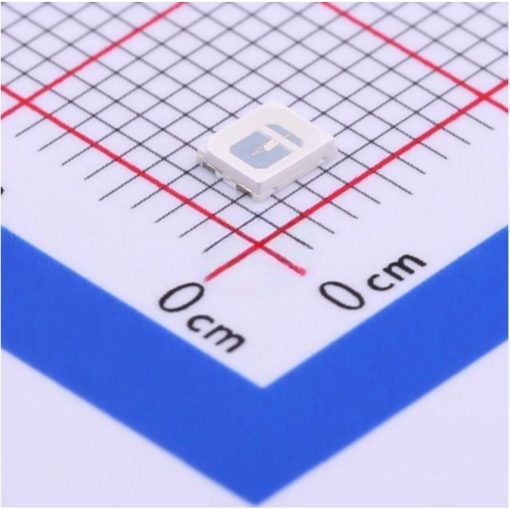

LED 2835 SMD Blue 455-460 3.1-3.2V 200mW

LED 2835 SMD Blue 455-460 3.1-3.2V 200mW

The LED 2835 SMD Blue is a high-quality surface-mount diode (SMD) designed for various lighting and display applications. With a wavelength range of 455-460 nm, this LED is ideal for blue light applications, including backlighting, indicator lights, and various types of signage. The device operates with a forward voltage of 3.1-3.2V, ensuring efficiency and long-lasting performance. Its luminous flux, ranging from 2 to 7 lumens, provides ample brightness for low-power applications. This LED is designed to be compatible with automatic placement systems and can be soldered using infrared and vapor-phase reflow soldering techniques, which makes it a great option for high-volume manufacturing.

Features:

• High-quality SMD design for efficient performance.
• Wavelength range of 455-460 nm for optimal blue light applications.
• Luminous flux of 2-7 lumens.
• Forward voltage of 3.1-3.2V for efficient energy use.
• Wide viewing angle of 120° for broad light dispersion.

Specifications:

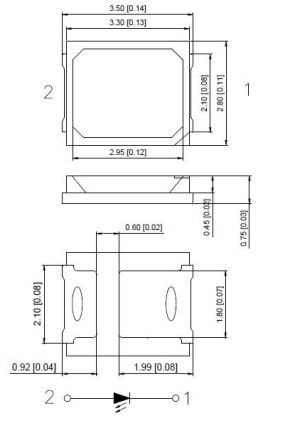

Foot Print:

Applications:

• Backlighting for LCD displays.
• Automotive dashboard indicators.
• Push-button and keypad backlighting.
• Indoor and outdoor general lighting.
• Indicator lights in consumer electronics.
• Signage and decorative lighting.

Datasheet:

 ZK-2835-Blue
